The DCM1P64F 4-stroke petrol DCM1P64F engine can be used for: motor pump, generator, lawnmower.
The GF-1016 vertical-shaft petrol engine is a robust, efficient and reliable product that requires minimal maintenance, with low oil and petrol consumption.

It is a four-stroke OHV (Overhead valve engine), air-cooled, air-cooled, four-stroke petrol engine with a single cylinder inclined at 25°, driving a vertical shaft with a diameter of Ø19mm (3/4 inch).

The GF-1016 vertical shaft petrol engine can be used for a wide range of domestic and household applications such as:
- Lawn and garden machinery;
- Power tillers / Lawn mowers;
- Construction/Industrial / Construction Machinery;
- Power generators;
- Agricultural equipment;
- Irrigation motor pumps.

Not for professional use or industrial applications. In this regard, we specify that this motor cannot be used for applications that exceed more than 80% of the rated power and the duration of use limited to about 100 hours per year.

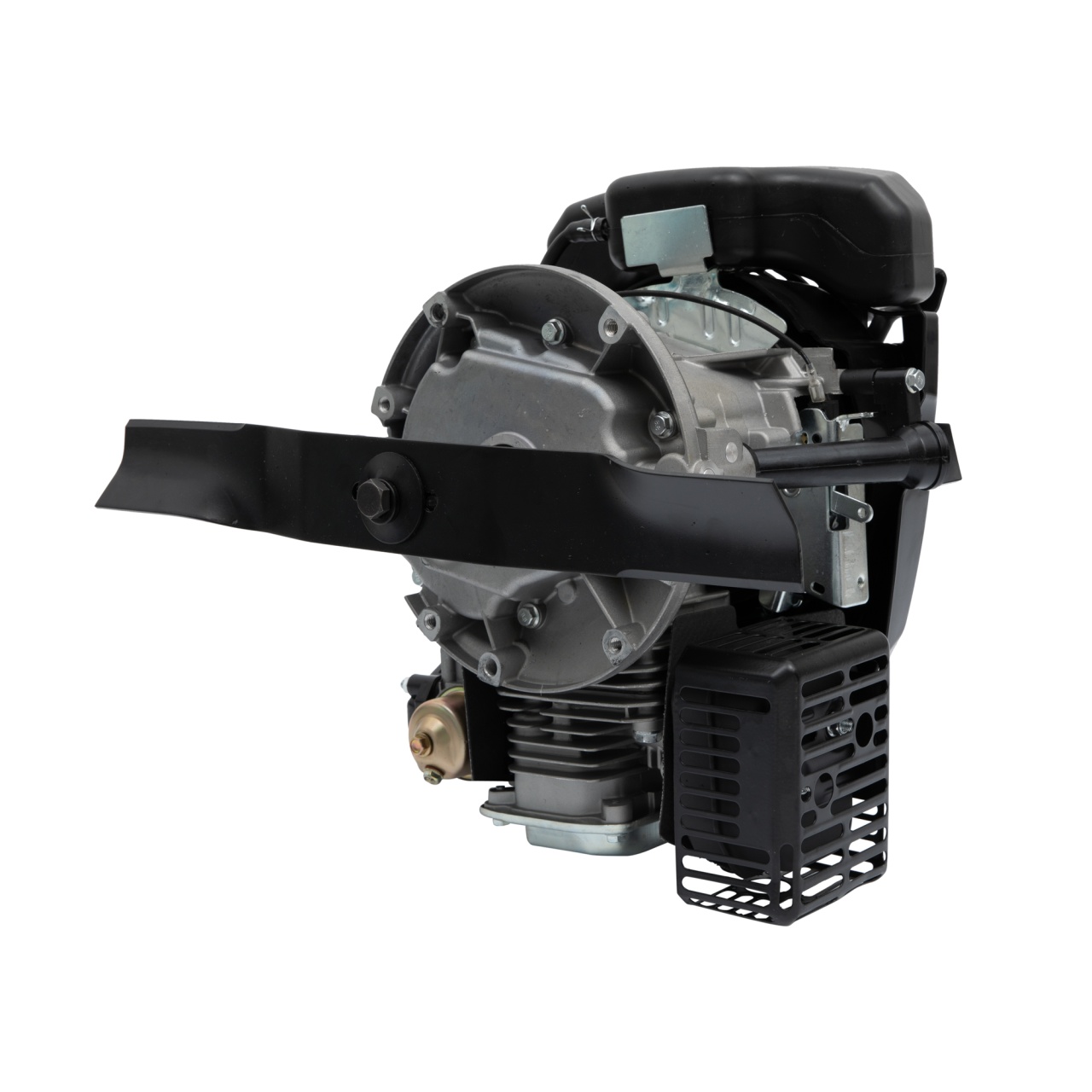

The product comes equipped with a knife clamping system and a grass-cutting knife - suitable for lawn mowers.

SKU
GF-1016
Categories
Brand
Little Farmer
Cylinder capacity
135 CC
Tank capacity
1, 5 litres
Engine oil capacity
0, 6 litres
Fuel
Petrol
Fuel consumption
350g/kwh
Engine oil consumption
?6.5g/kw/h
Maximum torque
7 Nm
Axle diameter
22.4 mm
Dimensions 2
392x315x342 mm
Feather dimensions
4.5 mm
Weight
14kg
Intake and exhaust valve clearance
0, 02 / 0.15±0.02, 10±0
Shaft length
64 mm
Sound power level
105 dB(Lw)
PCS/UM
1
Power
3, 4 kW
Horsepower
4.5 hp
Min. revolutions
3600 rpm
Ignition system
TCI (Transistor-Controlled Ignition)
Cooling system
Forced air cooling
Spark plug type
F6TC
Air filter type
Semi-spongy
Engine type
4-stroke, OHV, single-cylinder, vertical axis
Product type
Petrol engines
One box
1
PCS/box, bag
1
Engine oil
15W-40 (multi-grade oil to SAE J300 standard)
The amplitude of the vibrations
2, 2 m/s²

Do you own or have used the product?
Post review
Micul Fermier

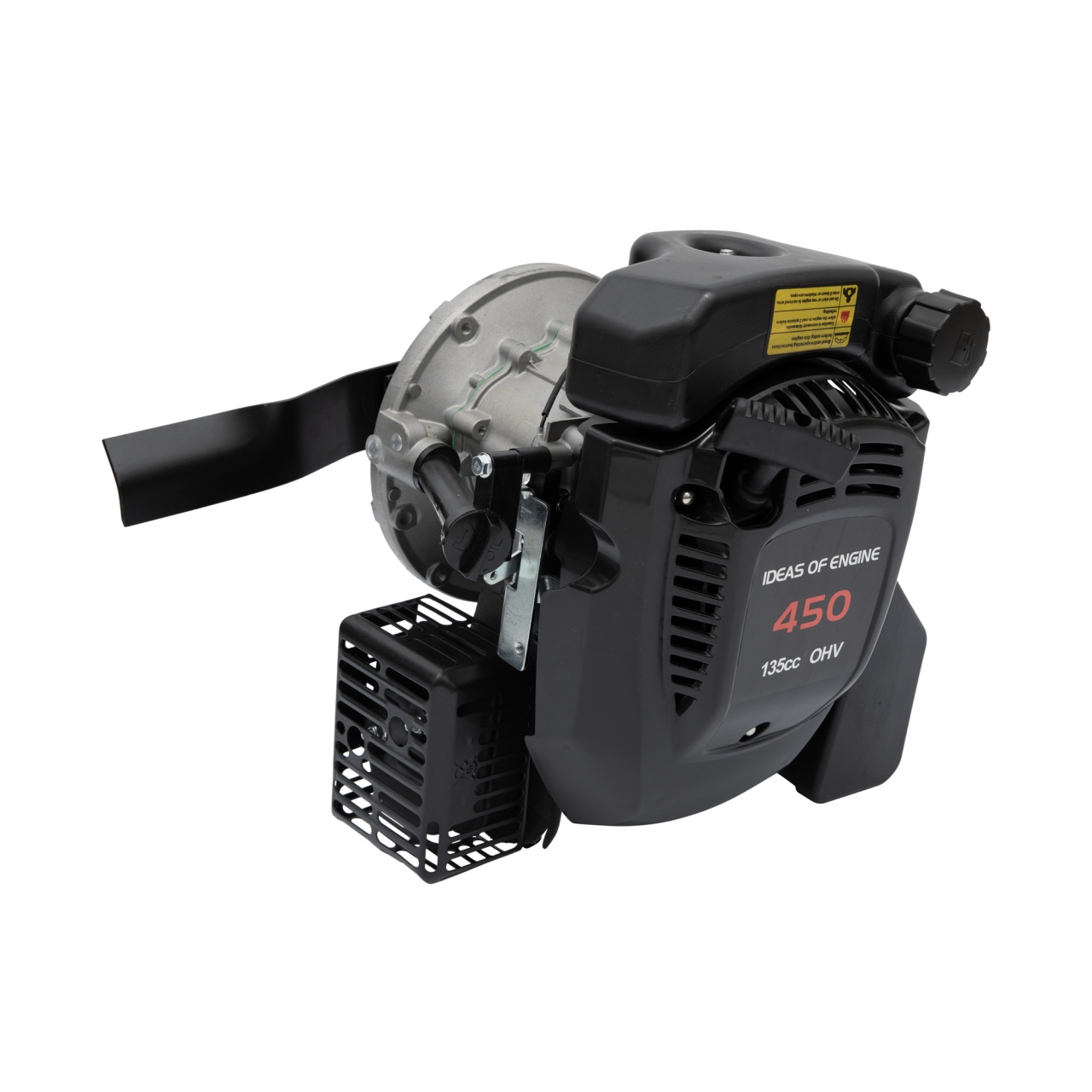

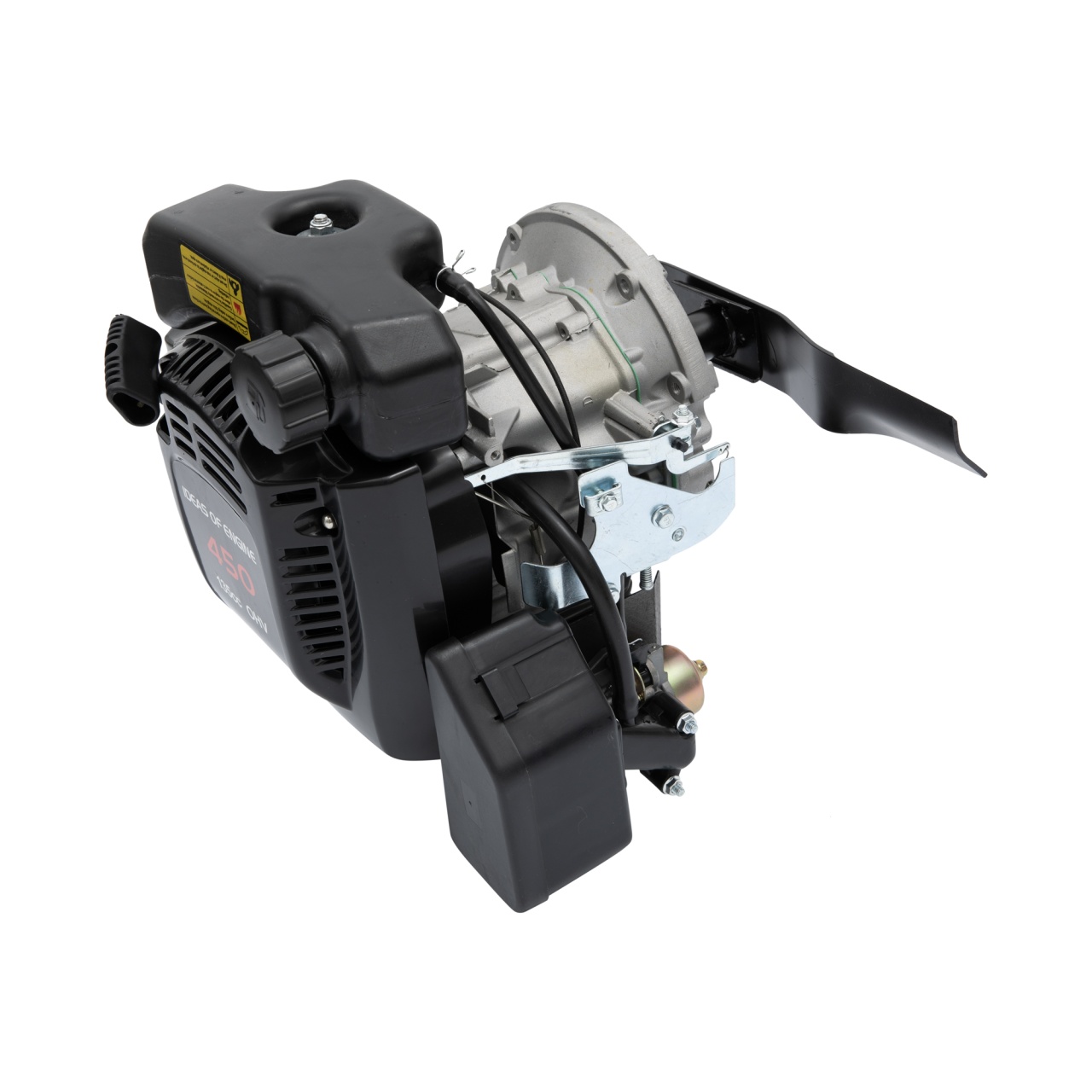

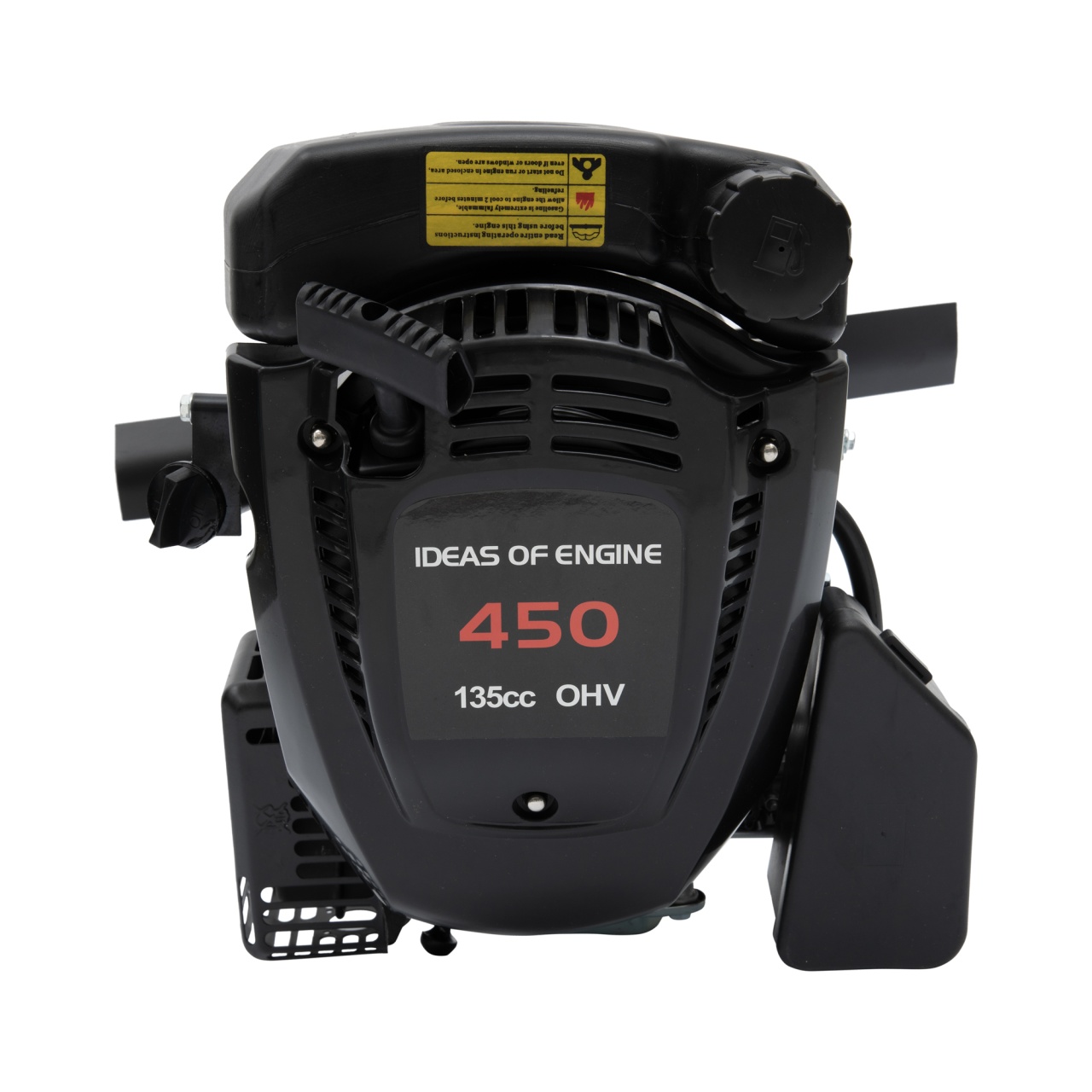

4.5HP 135cc vertical shaft engine
