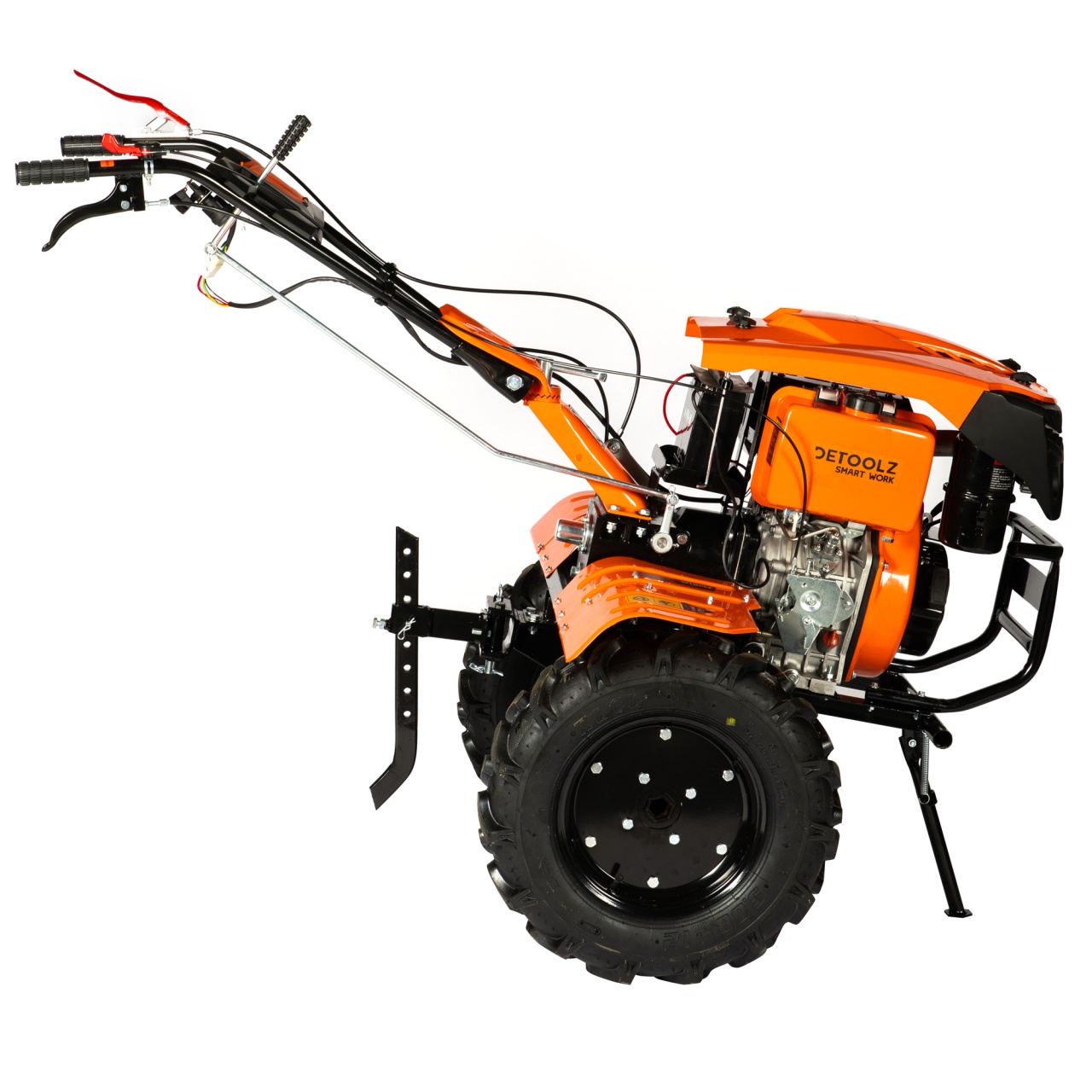

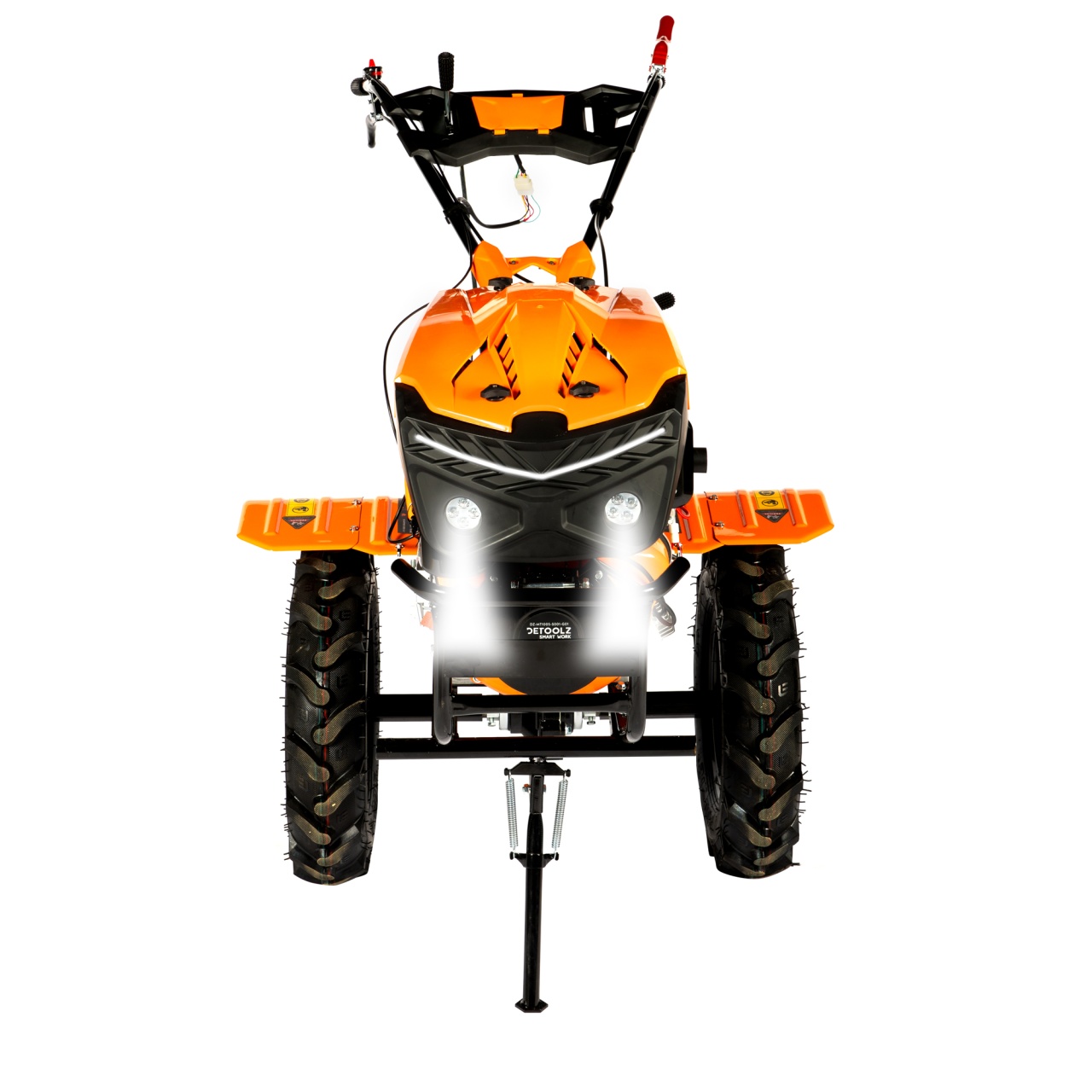

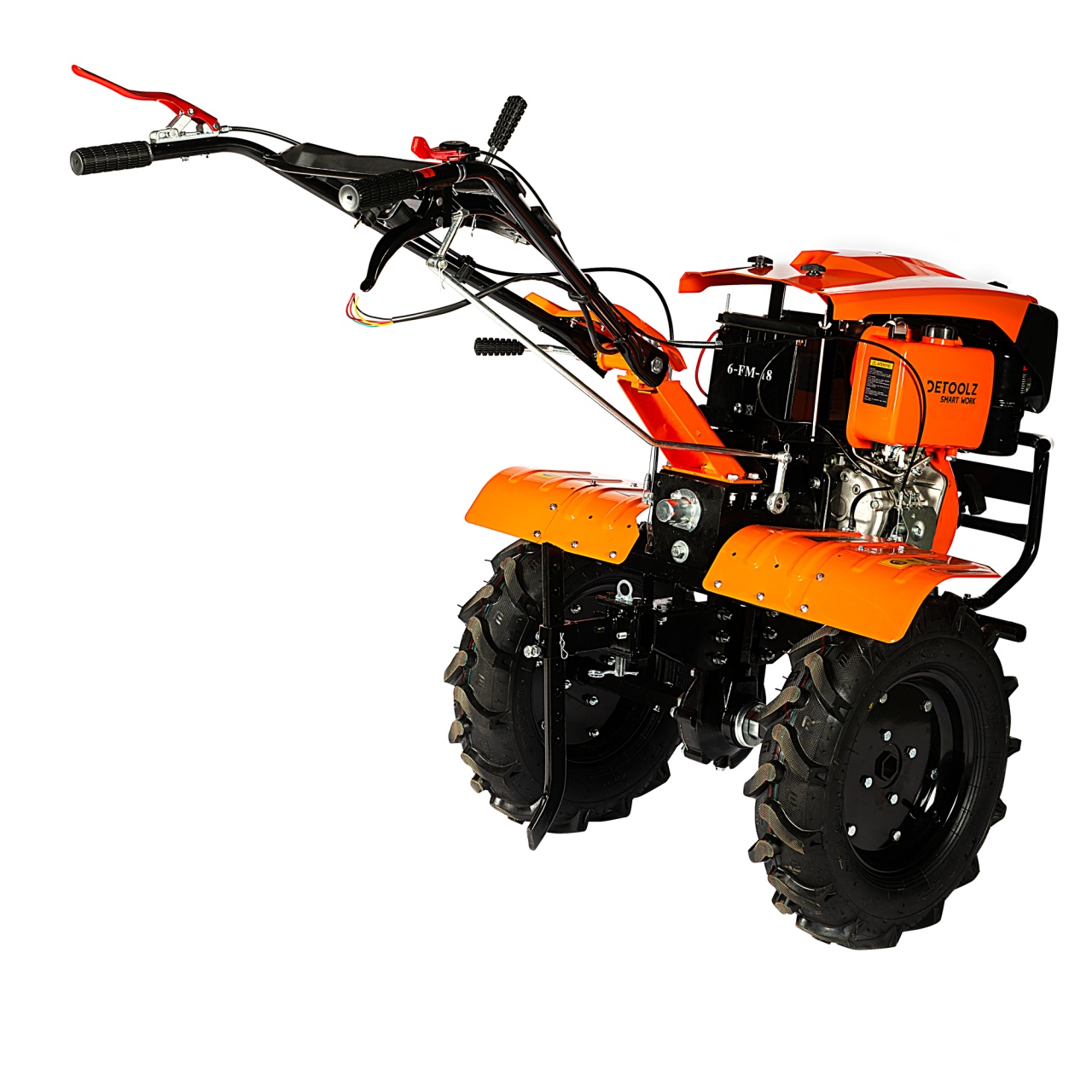

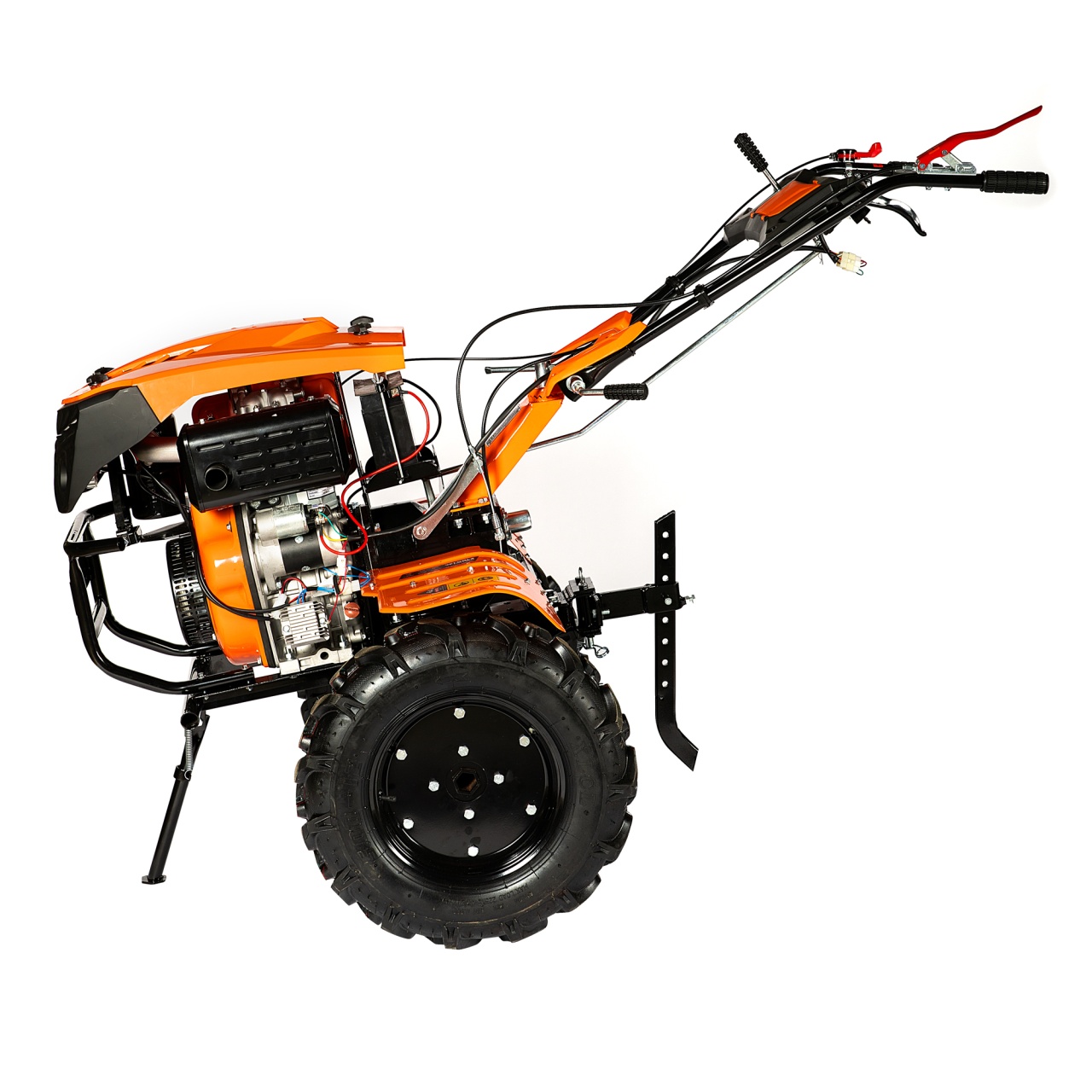

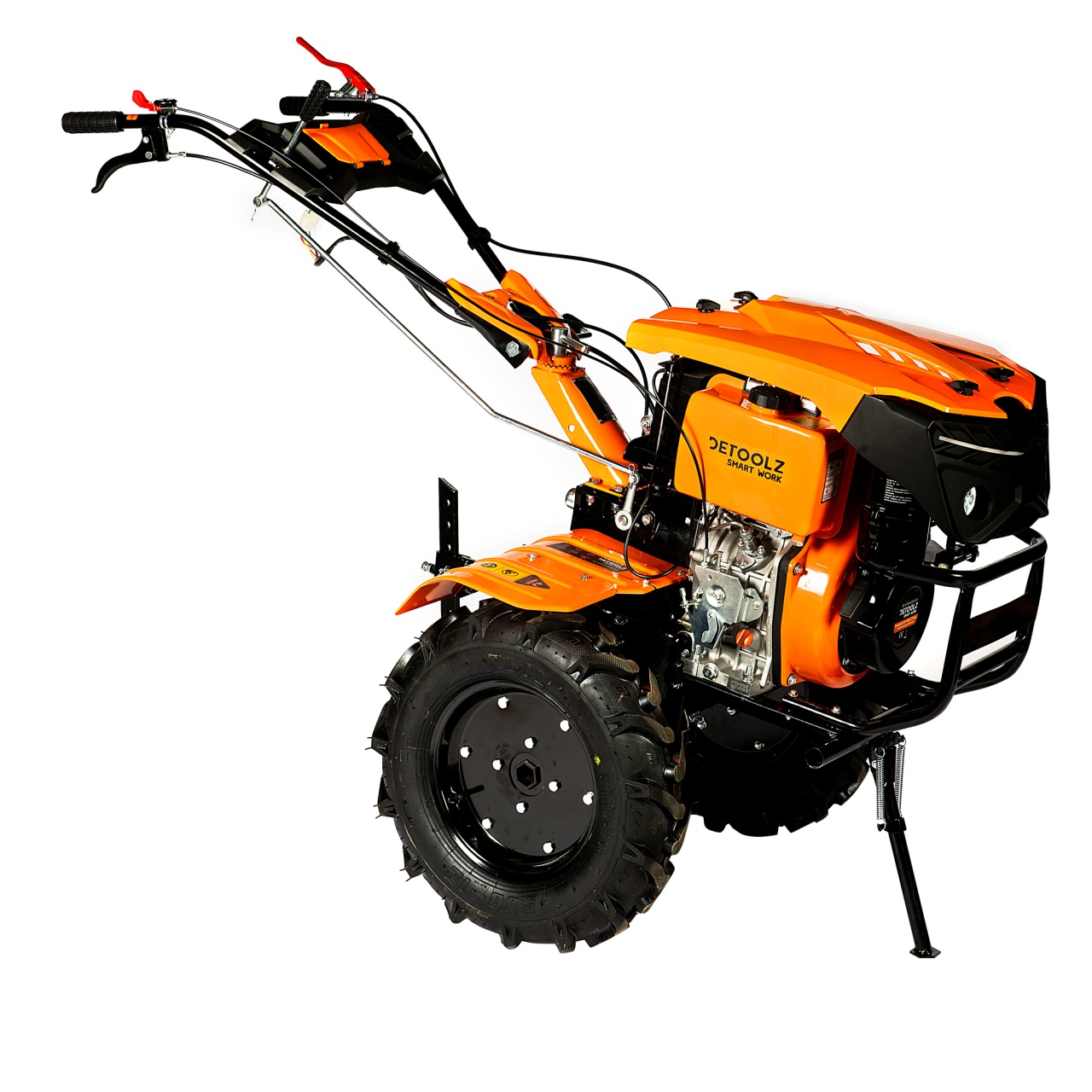

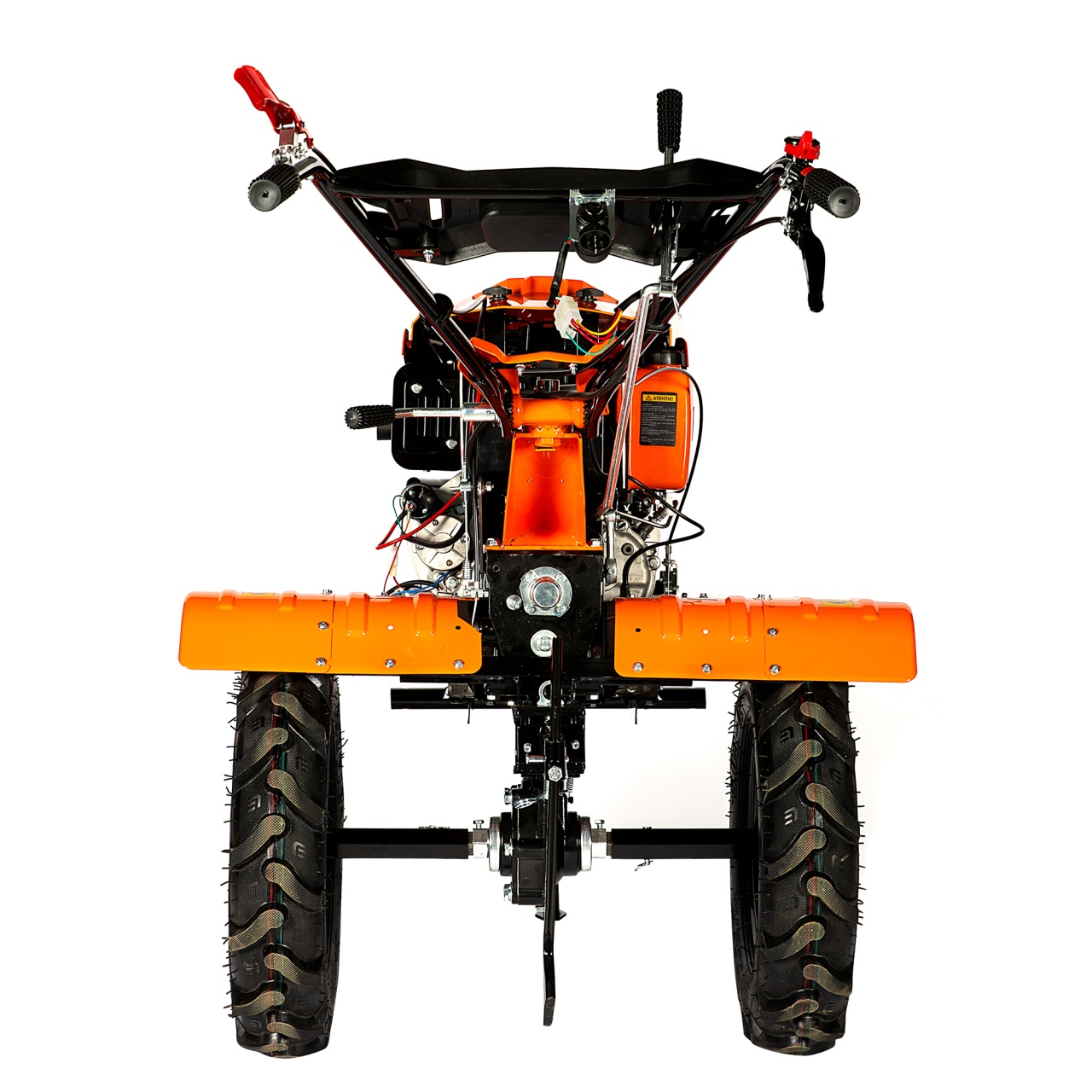

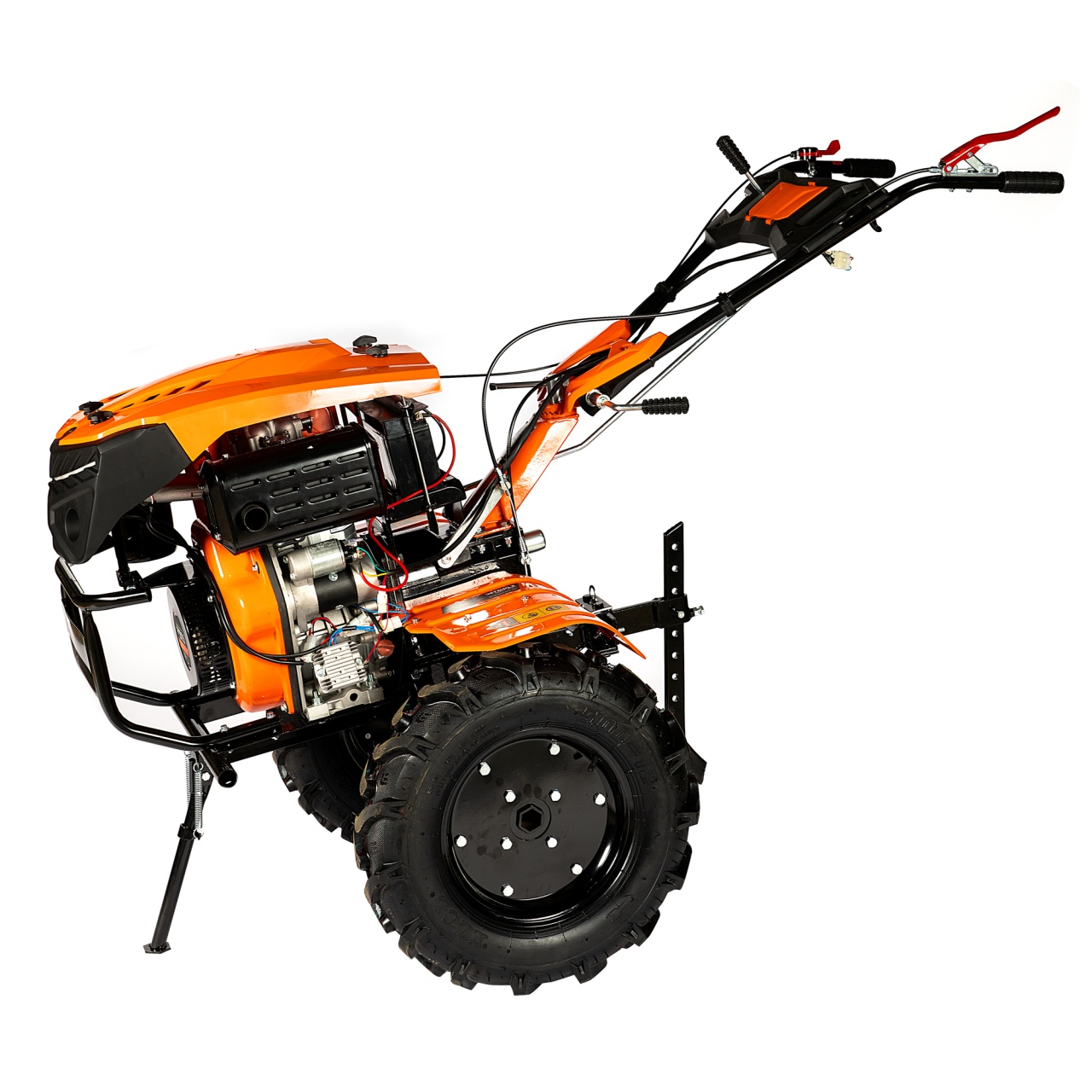

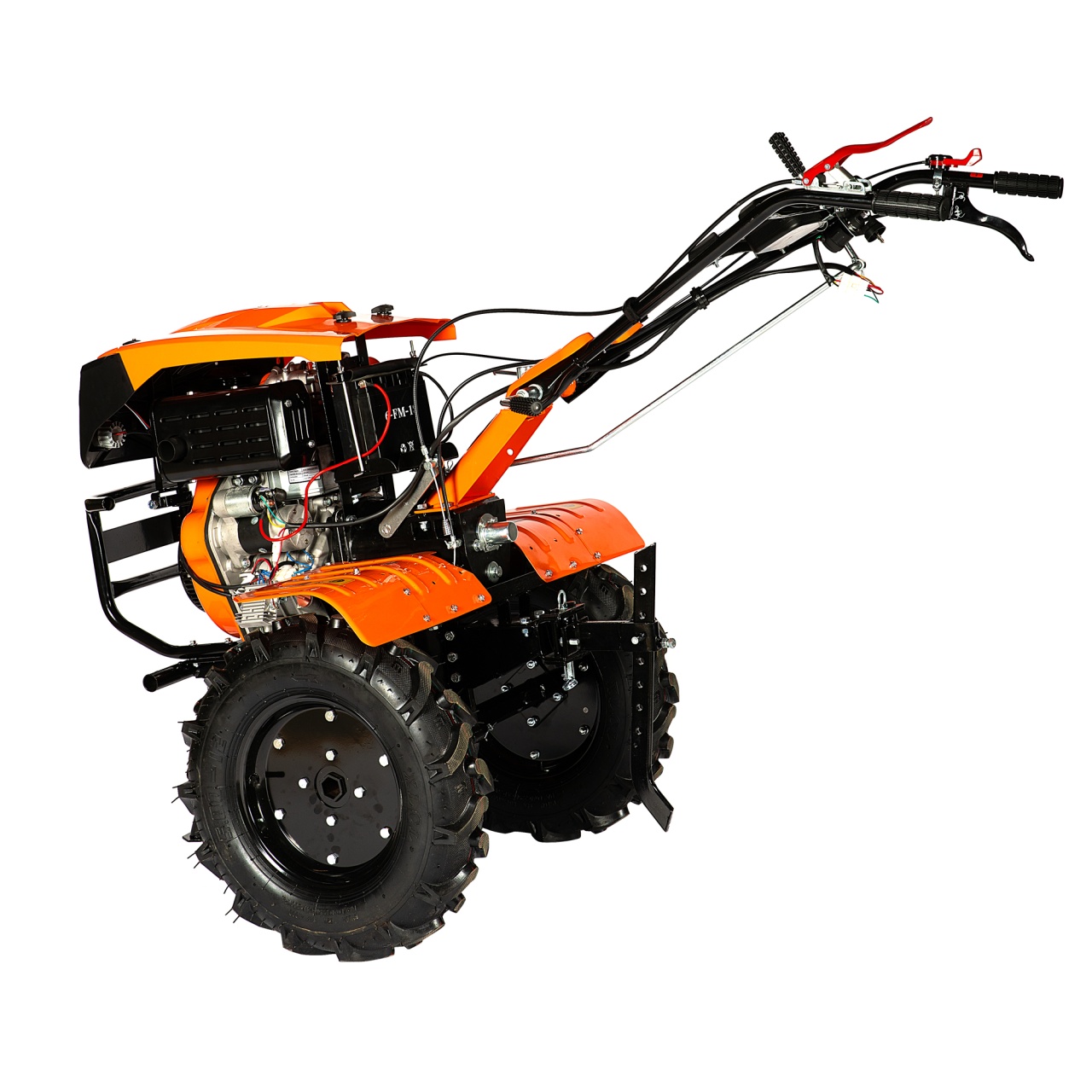

Detoolz 11CP 418cc tiller, diesel, 4-stroke, 3-speed, electric start, with wheels – DZ-MT1005-S001-G01 🚜

Maximum performance for agricultural work! The Detoolz 11HP 418cc 4-stroke tiller is a robust and powerful machine, designed for soil cultivation in orchards, gardens, farmland and greenhouses. Thanks to its 11HP diesel engine and electric start system, this tiller offers reliability, efficiency and ease of use, making it suitable for both flat terrain and slightly uneven areas.


🔧 Key features


✅ Powerful 11HP engine – 4-stroke, single-cylinder, OHV, air-cooled

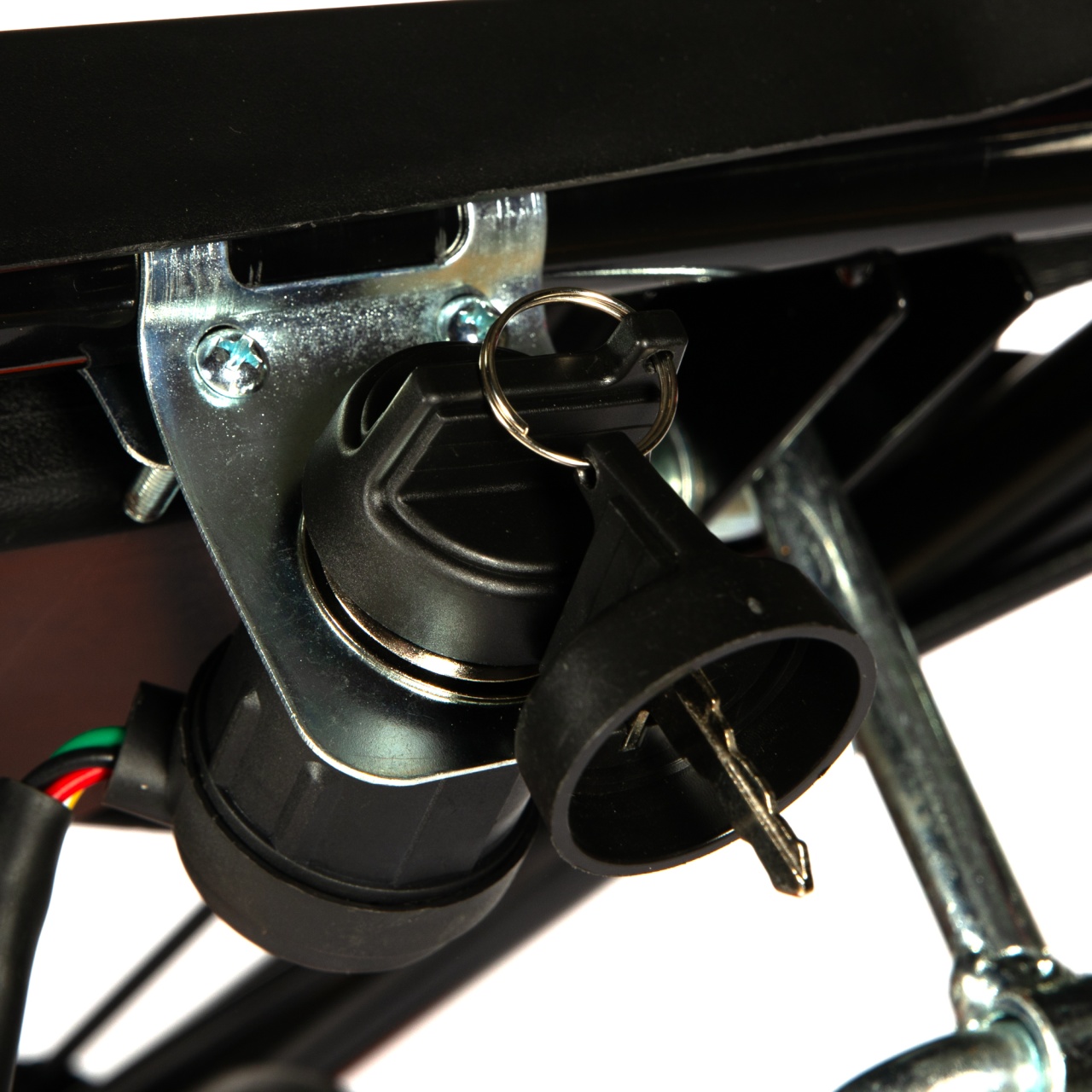

✅ Electric key start – quick and easy start-up, with no effort
✅ Gearbox – maximum
durability and efficiency ✅ 3 speeds – 2 forward + 1 reverse, for optimal
manoeuvrability ✅ Working width adjustable up to 1150 mm – extended coverage for high
efficiency ✅ Working depth of over 100 mm – suitable for various soil
types ✅ Low fuel consumption – high efficiency and minimal operating costs

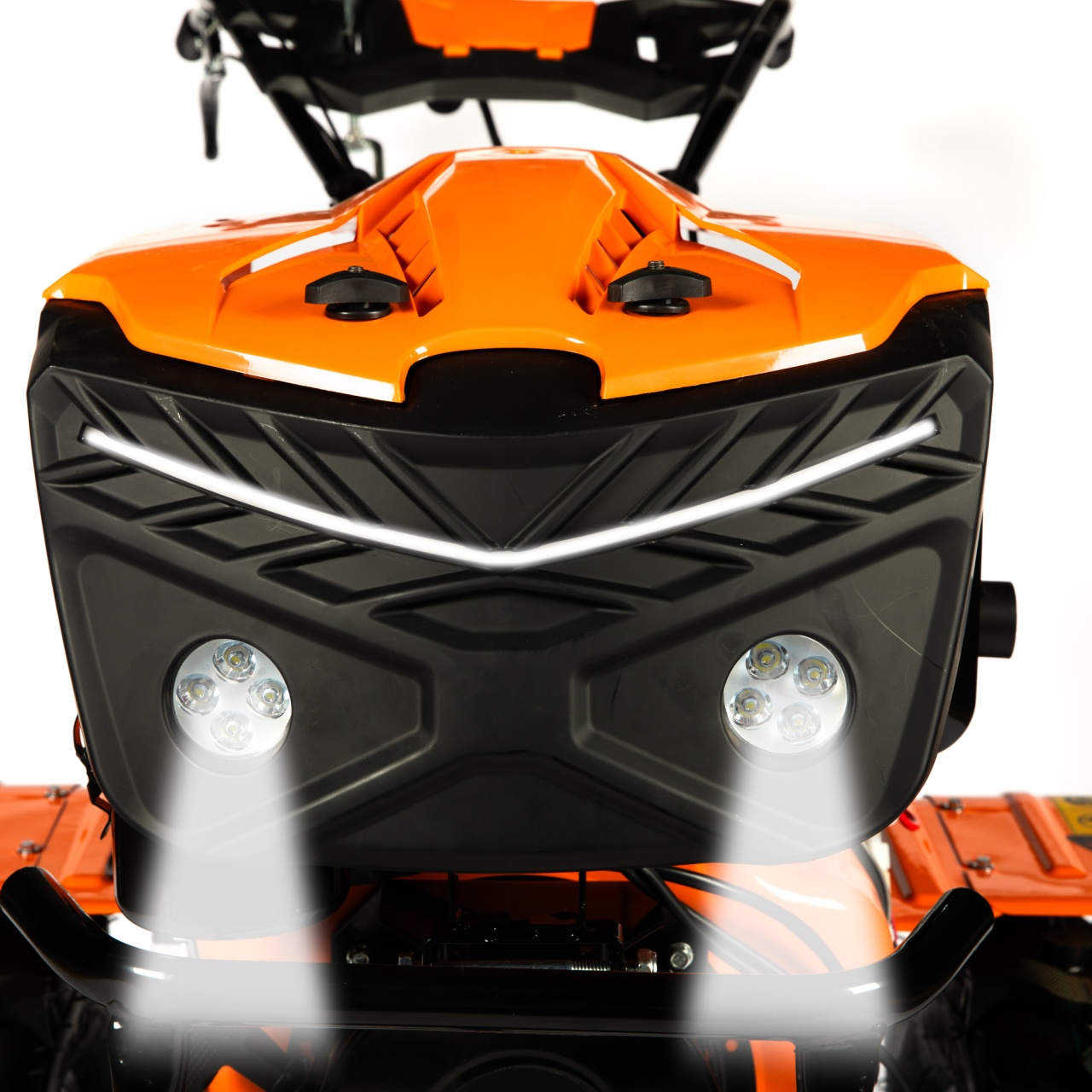

✅ Lighting system (front headlight) – allows use even in low-visibility
conditions ✅ Ergonomic and robust design – offers stability and comfort in use


📌 Recommended uses


✔ Soil preparation for cultivation – ploughing, ridging, loosening and levelling
✔ Farmland maintenance – fertilising, sowing and harvesting (with compatible accessories)
✔ Use on various types of terrain – dry soil, rice fields, orchards, gardens and greenhouses
✔ Work on hilly and uneven terrain – thanks to increased power and variable speeds

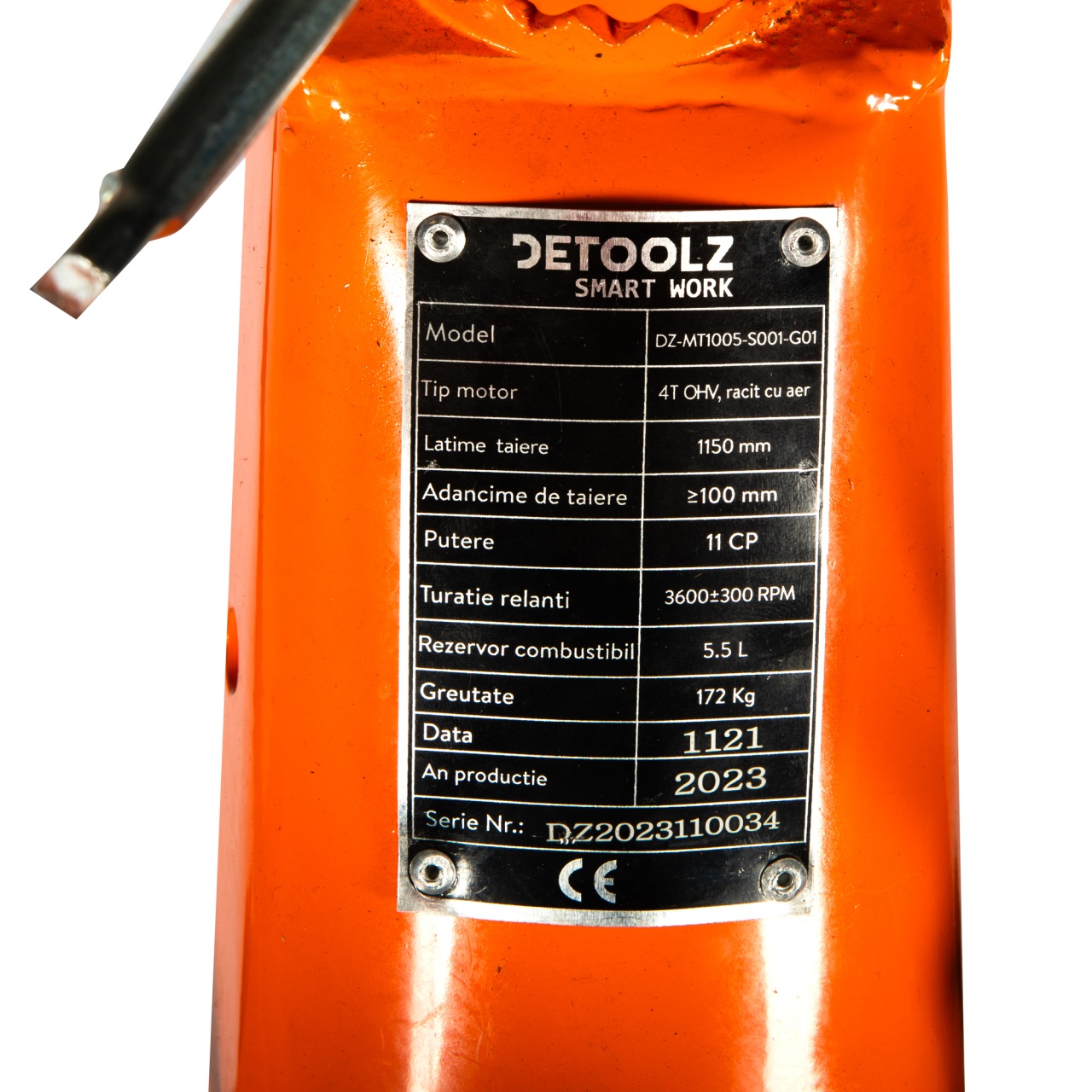

📌 Technical specifications

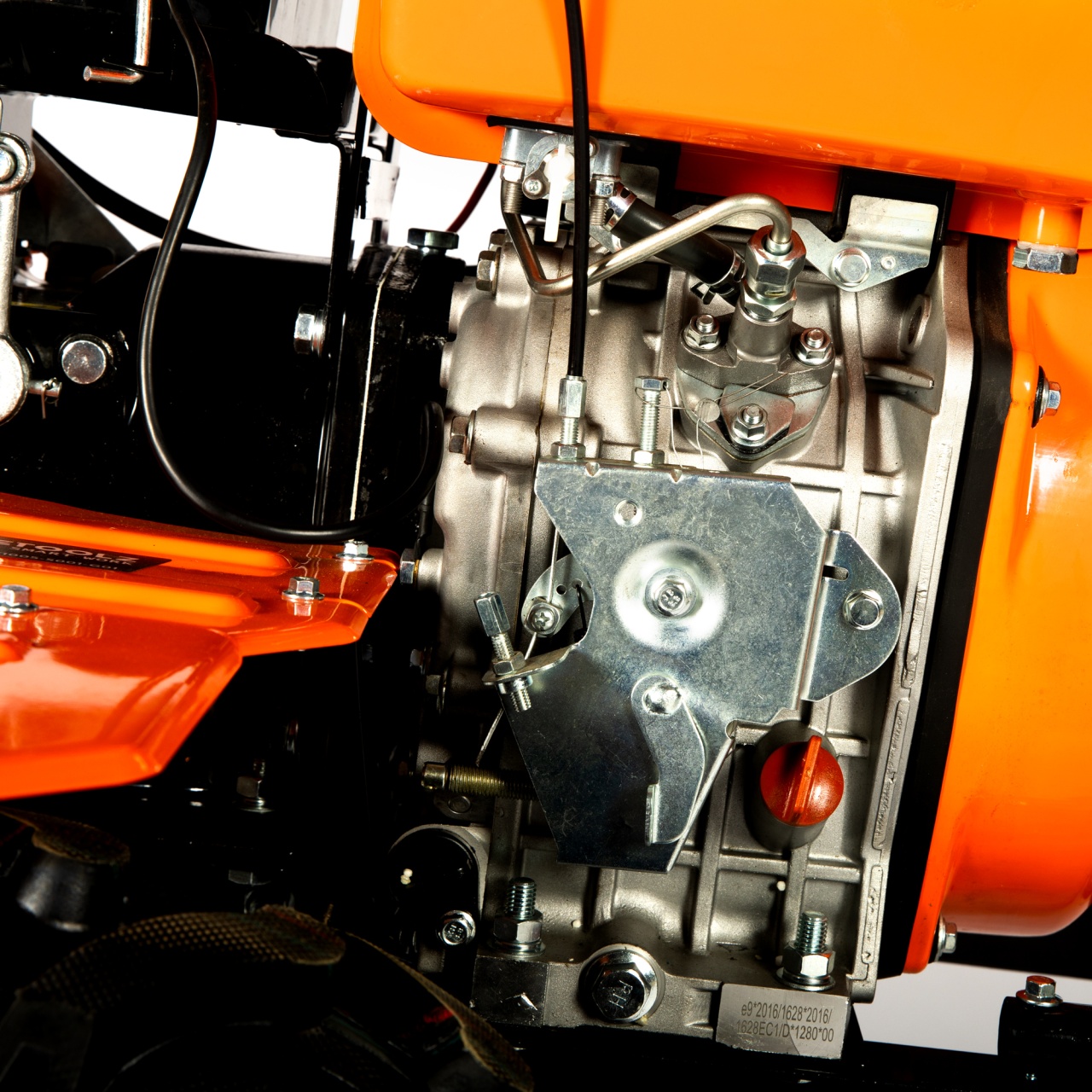

🔹 Engine type: 4-stroke, single-cylinder, OHV, air-cooled
🔹 Displacement: 418cc
🔹 Engine power: 11HP
🔹 Fuel type: Diesel

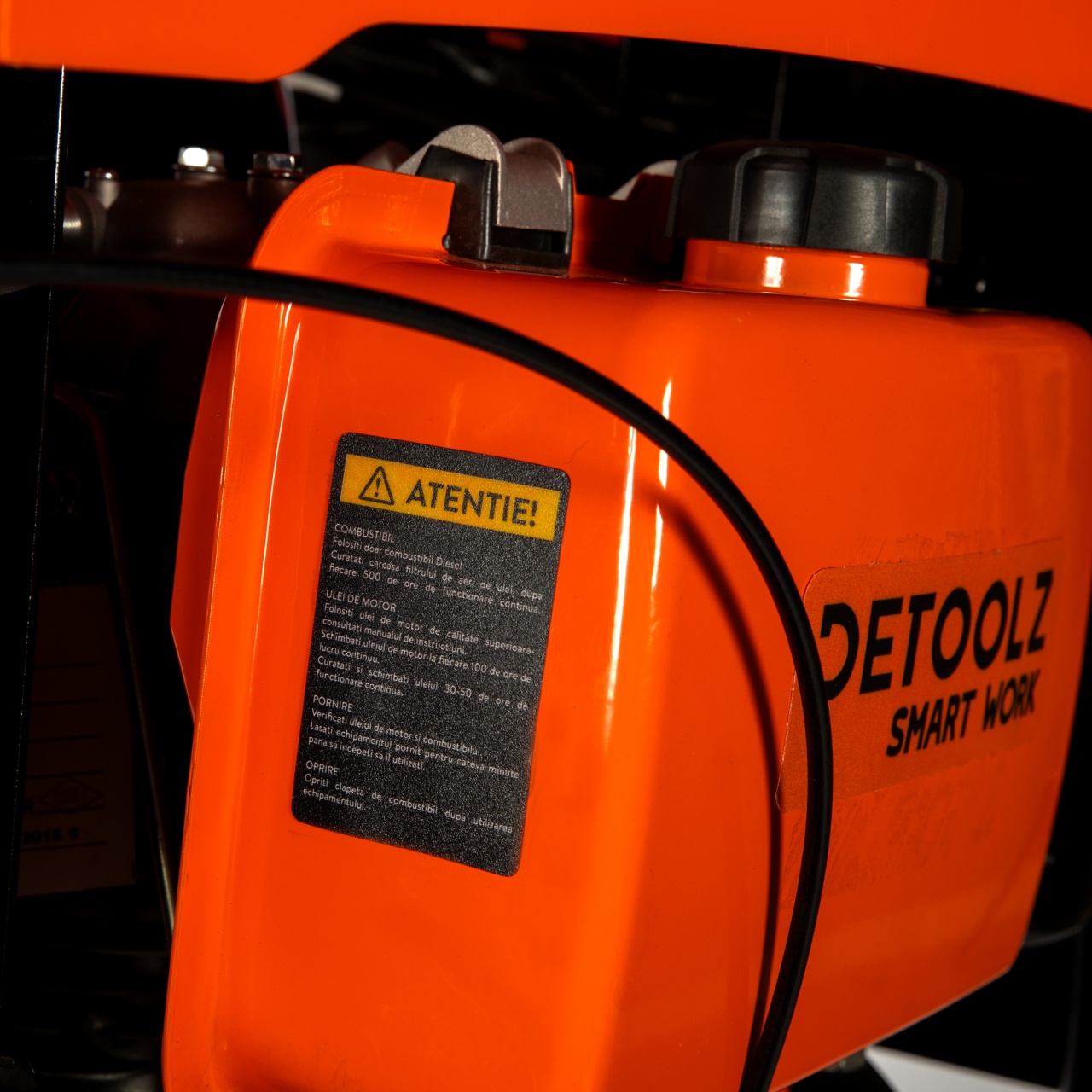

🔹 Fuel tank capacity: 5.5L
🔹 Fuel consumption: ≤2.0L/h
🔹 Engine oil capacity: 1.65L (SAE10W-30)
🔹 Transmission type: Gear-driven
🔹 Gears: 2 forward + 1 reverse
🔹 Maximum working width: 1150 mm
🔹 Maximum working depth: ≥100 mm

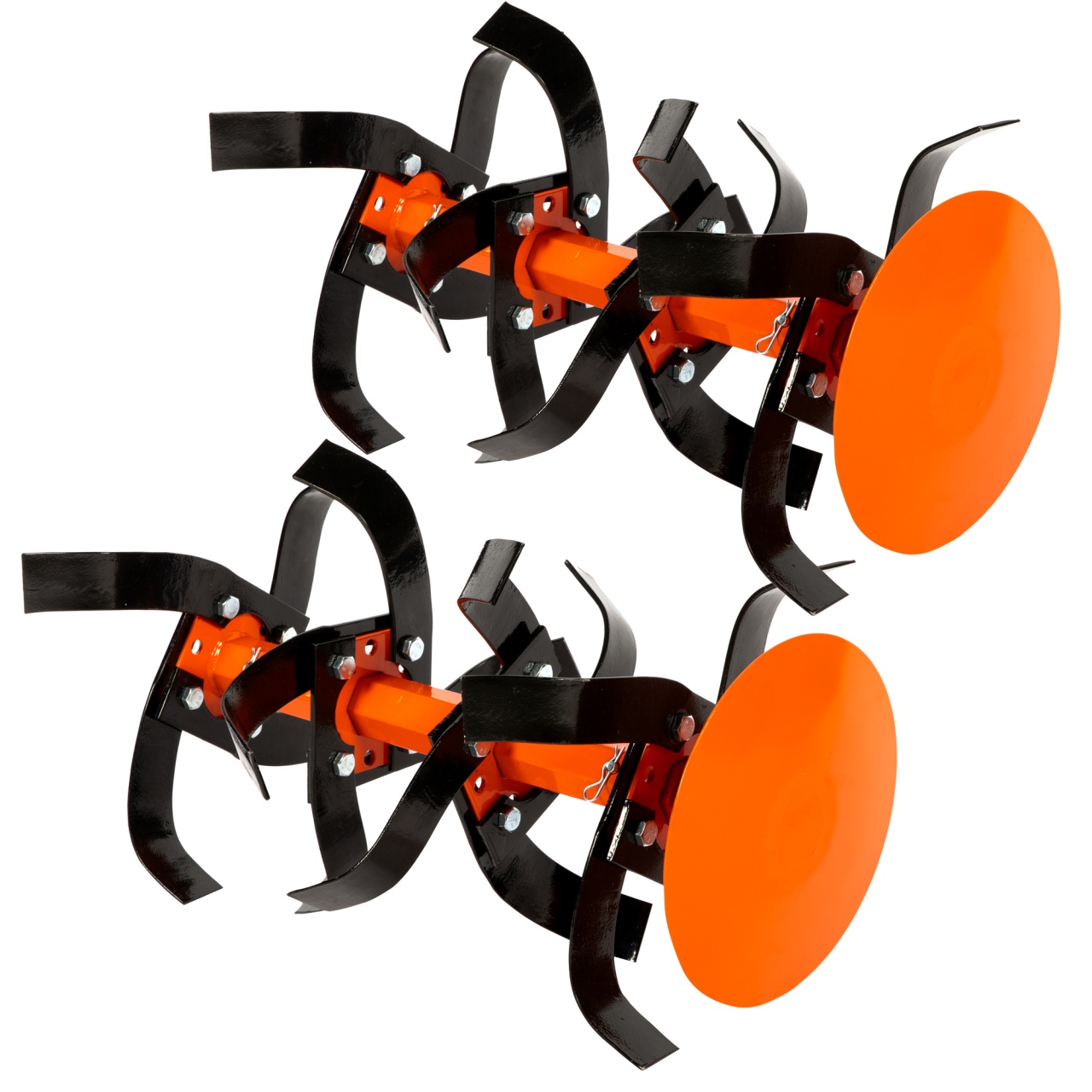

🔹 Number of cutter blades: 32 + 2 side

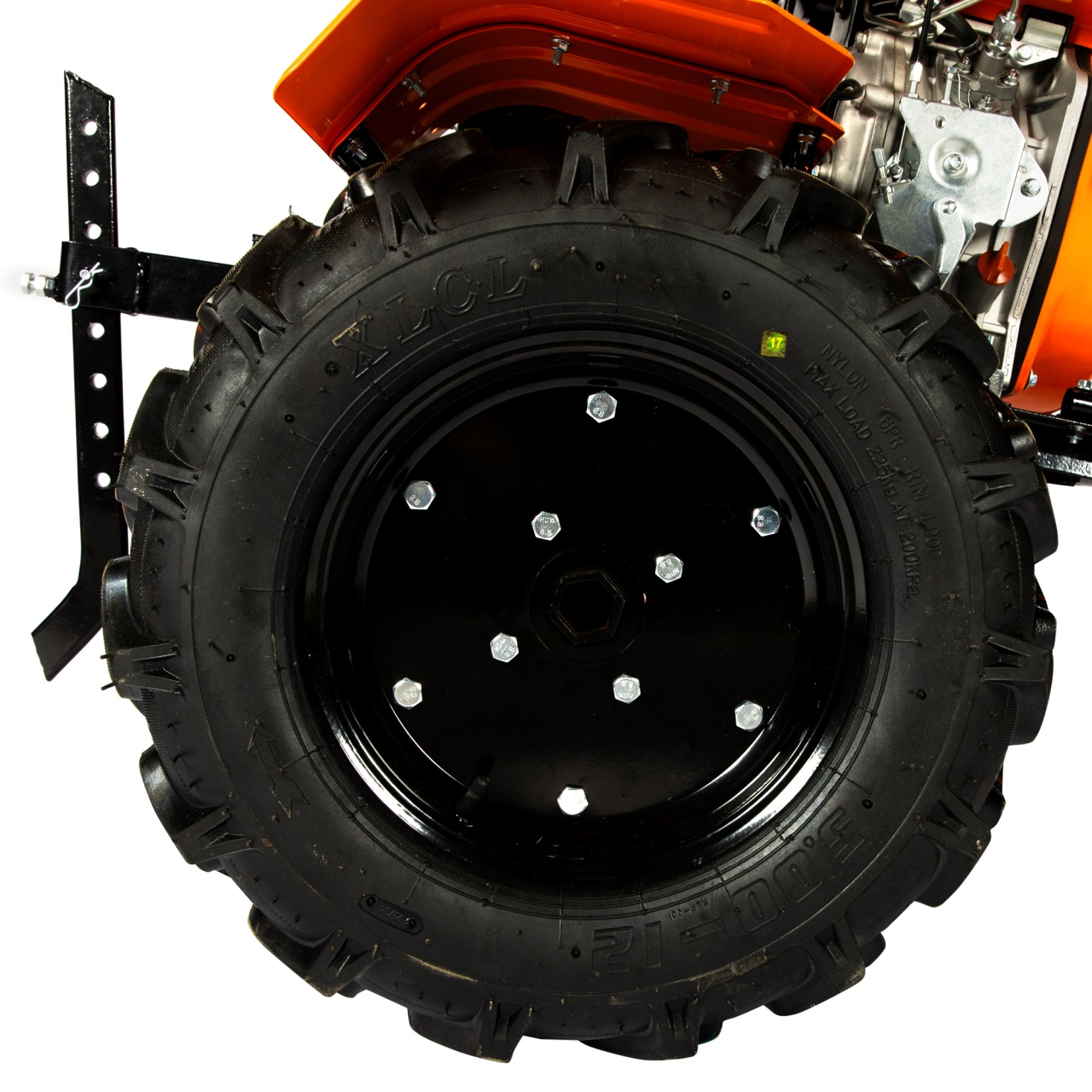

discs 🔹 Wheel size: 500-12
🔹 Noise level: 85.8 dB(A)
🔹 Net weight: 172 kg
🔹 Equipment dimensions: 980 x 570 x 780 mm


💡 User benefits


✔ High power for extensive agricultural work – ideal for medium and large
areas ✔ Easy electric start – quick and effortless

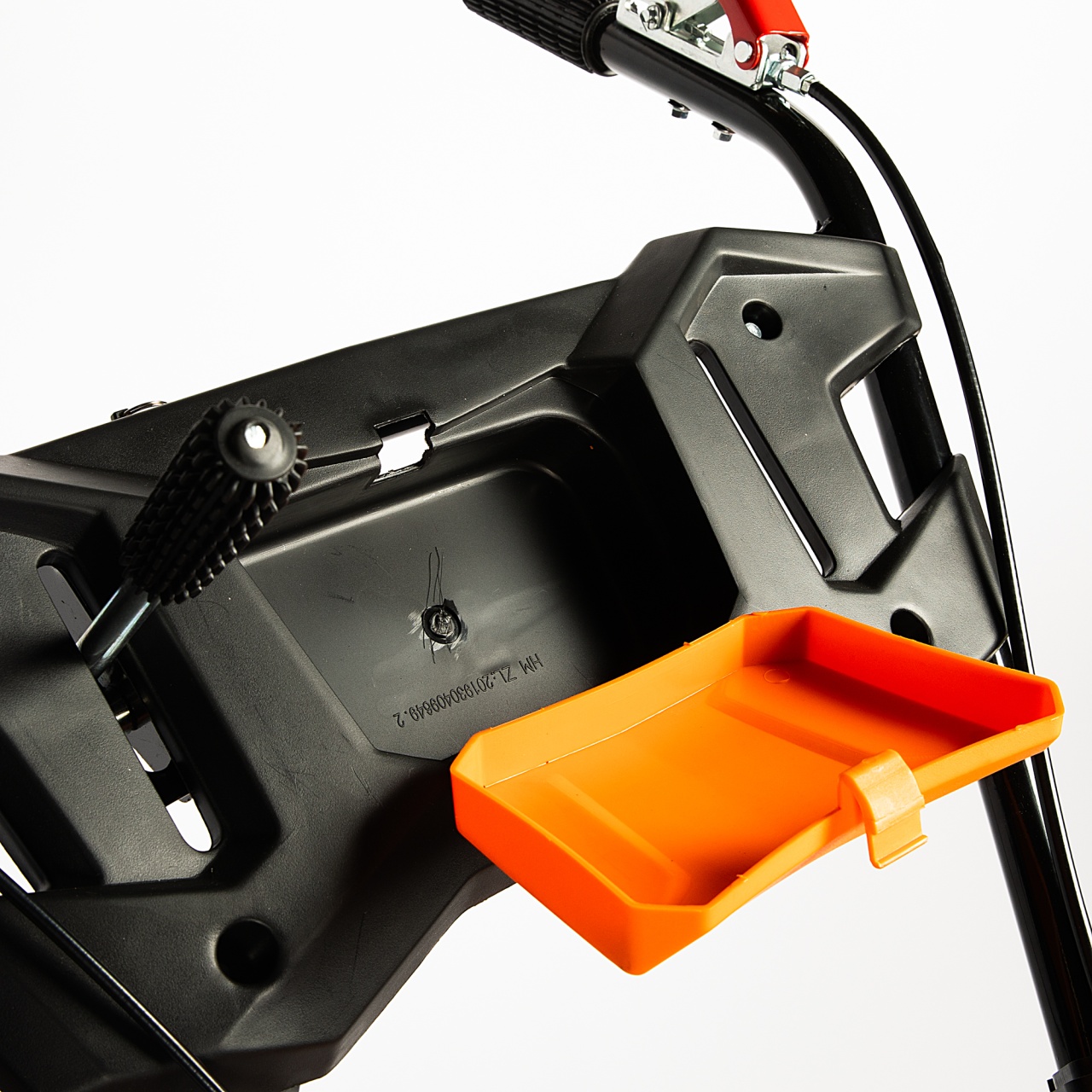

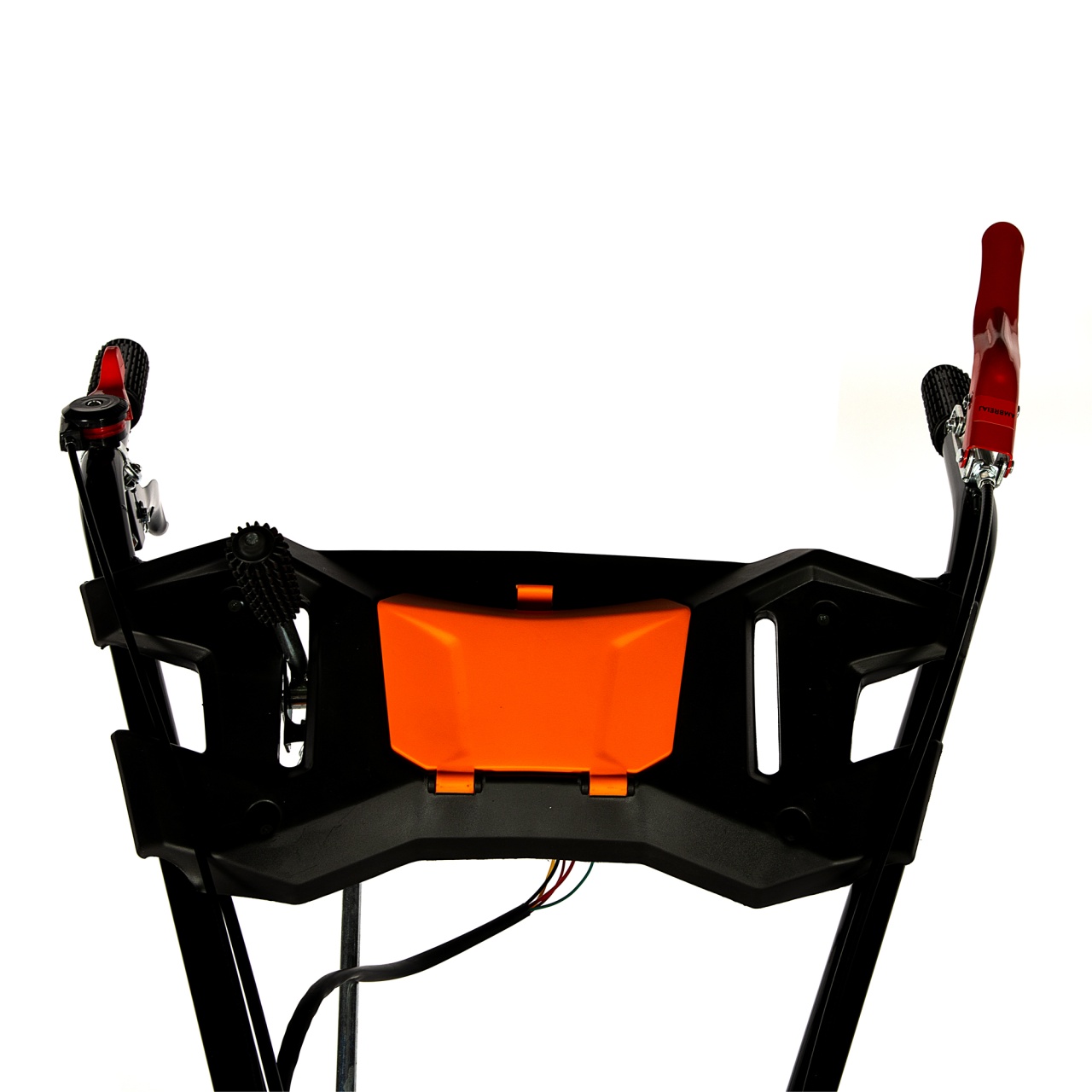

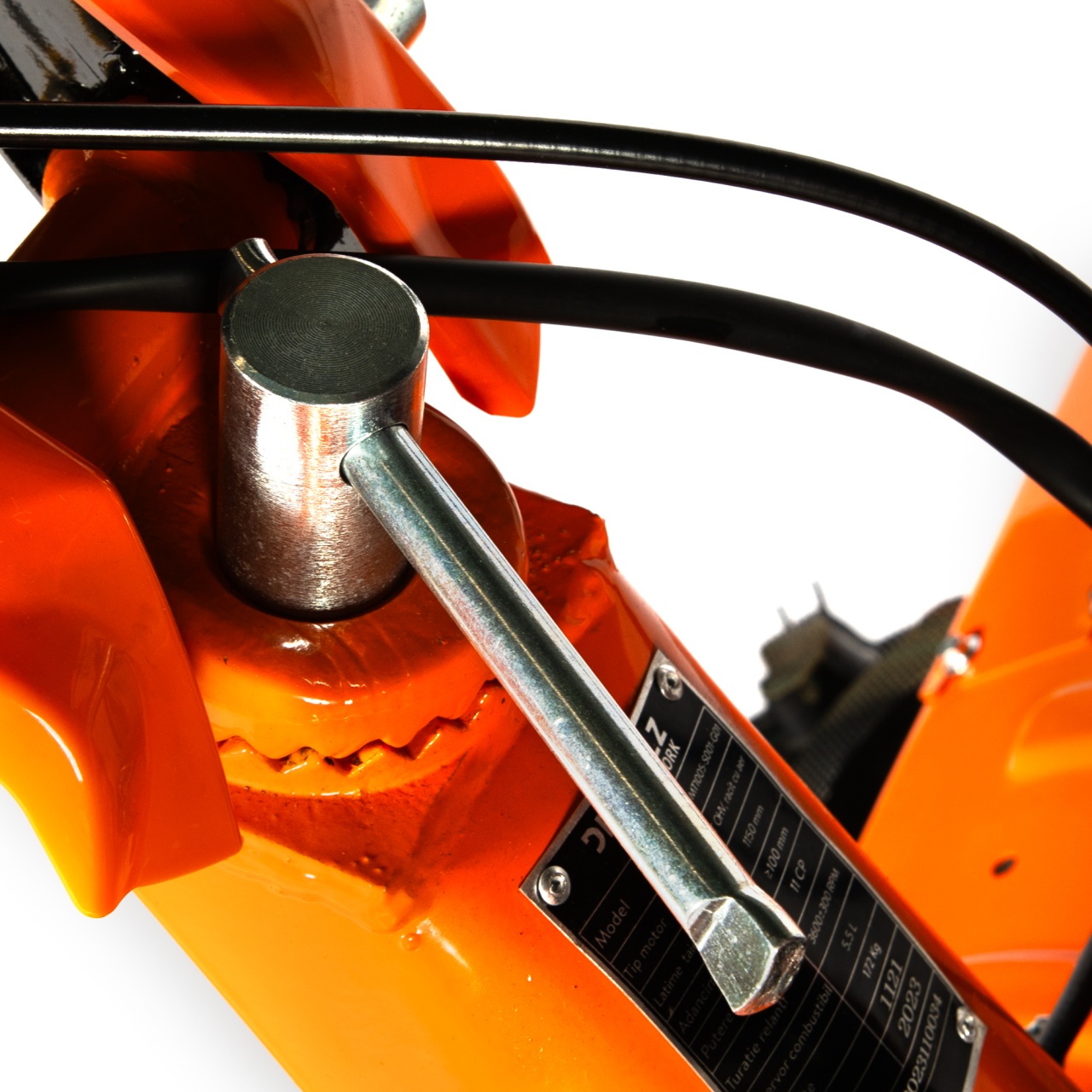

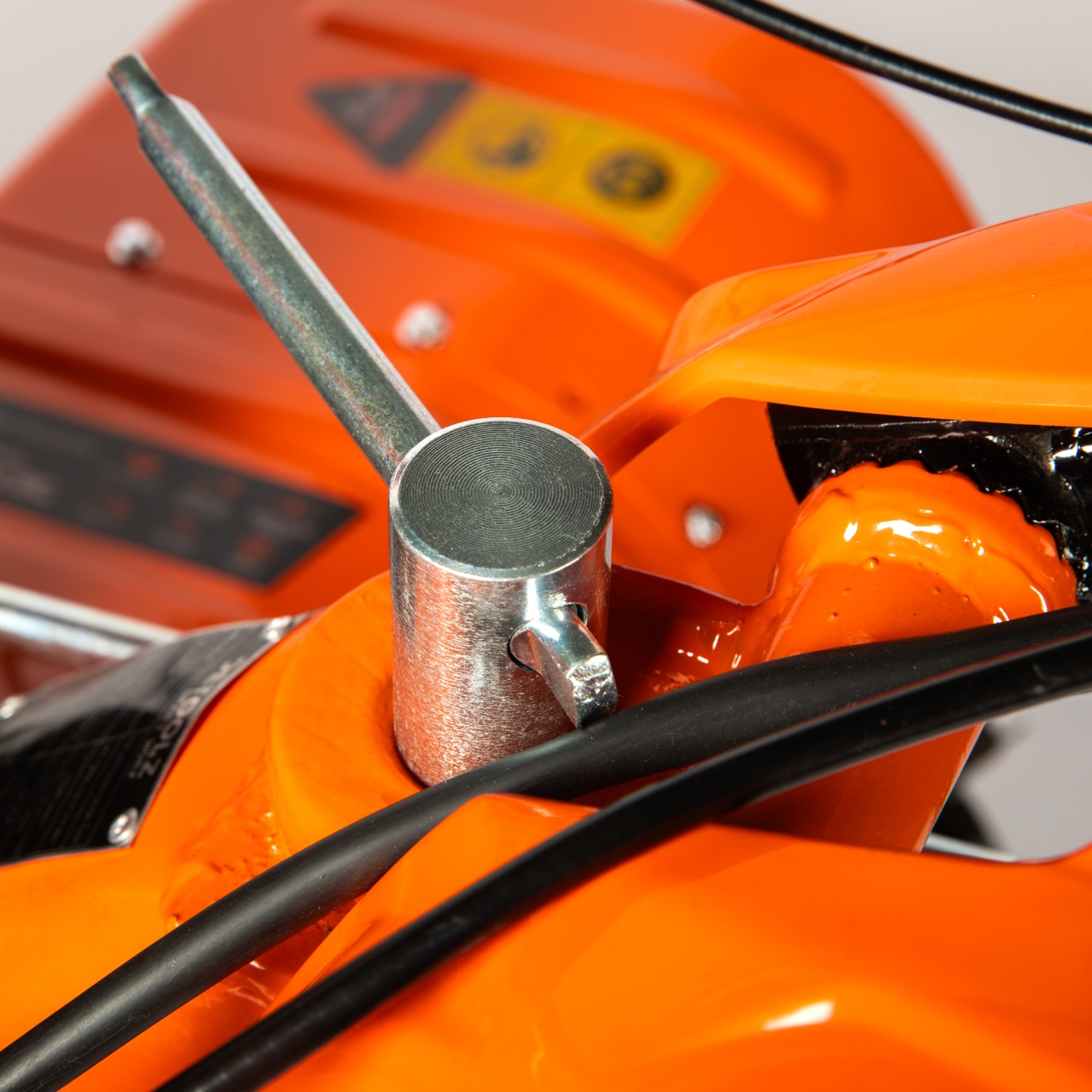

operation ✔ Improved manoeuvrability – horizontally and vertically
adjustable handlebars ✔ Compatibility with various accessories – can be used for multiple agricultural activities
✔ High efficiency and low fuel consumption – minimal maintenance costs


📦 Package contents


✔ Detoolz 11CP 418cc, 4-stroke tiller

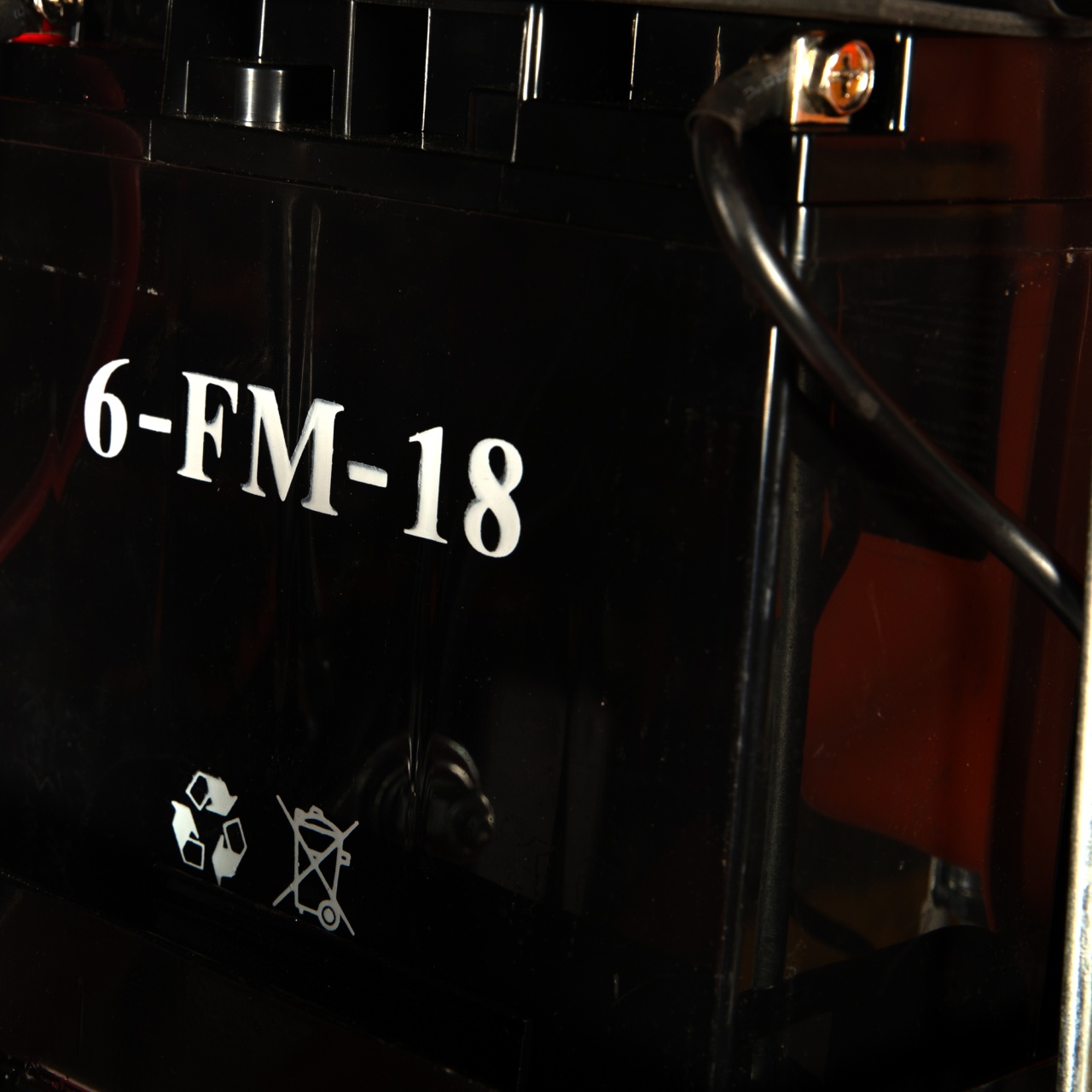

✔ 18Ah battery for electric

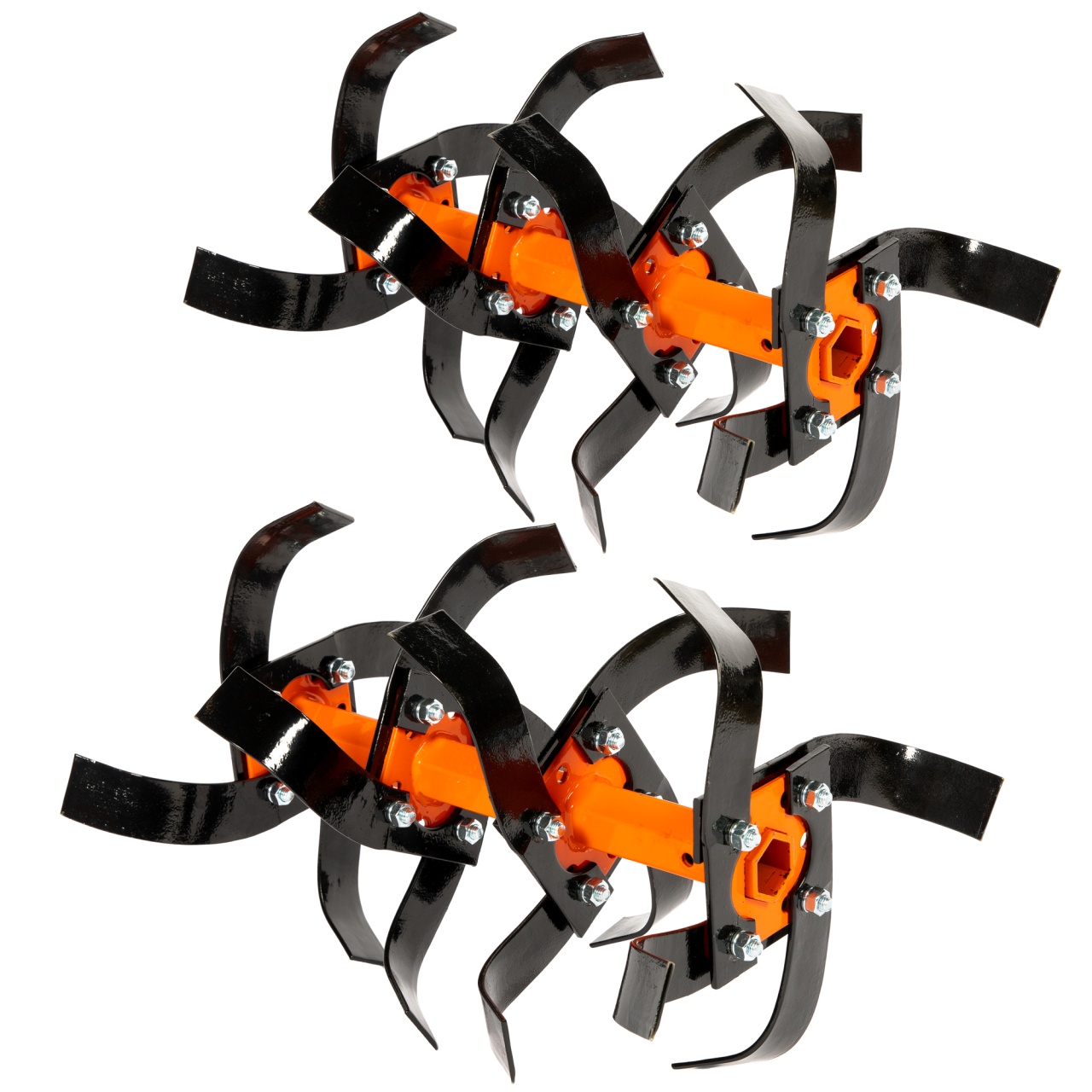

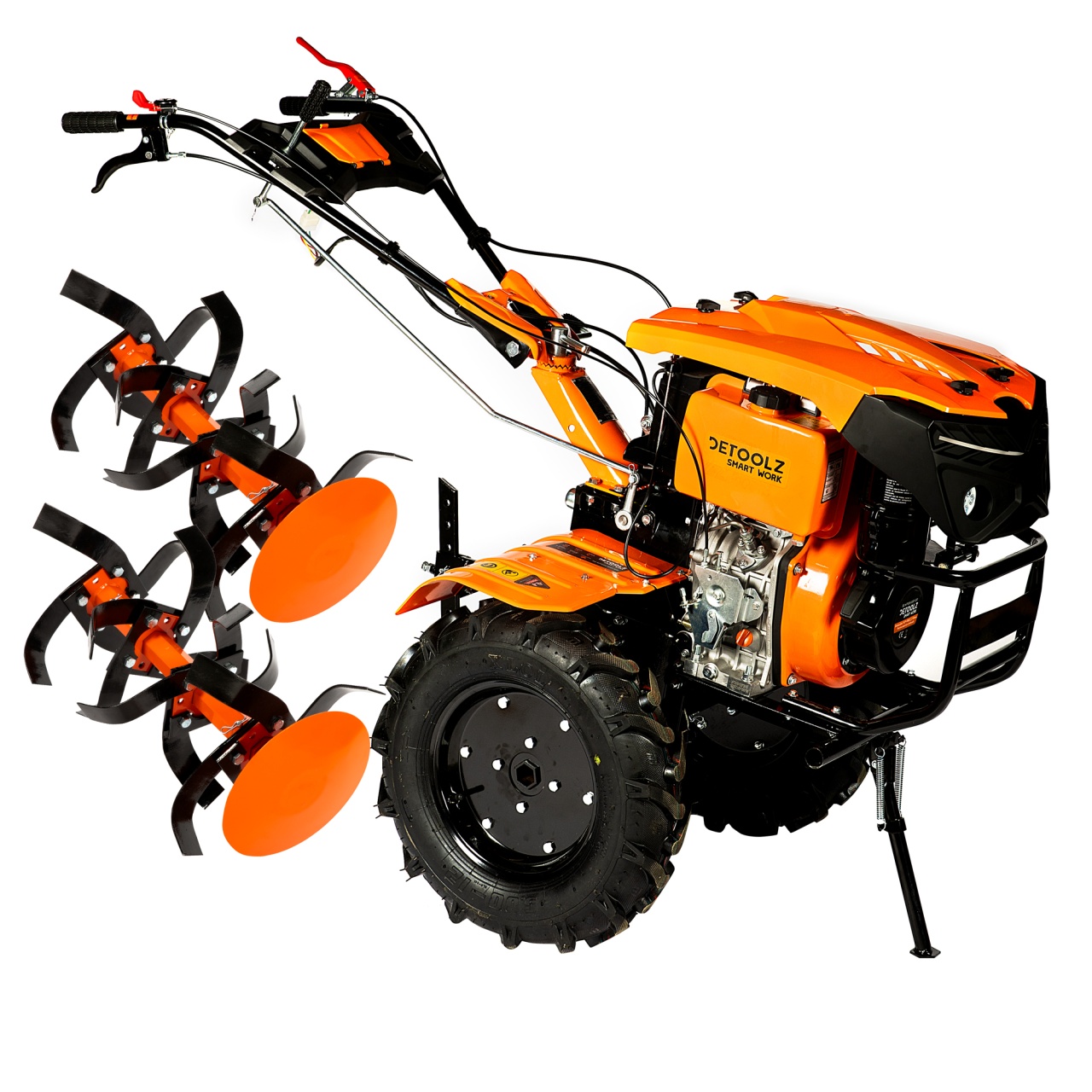

start ✔ Cutter set (32 blades + 2 side discs)
✔ 4 protective

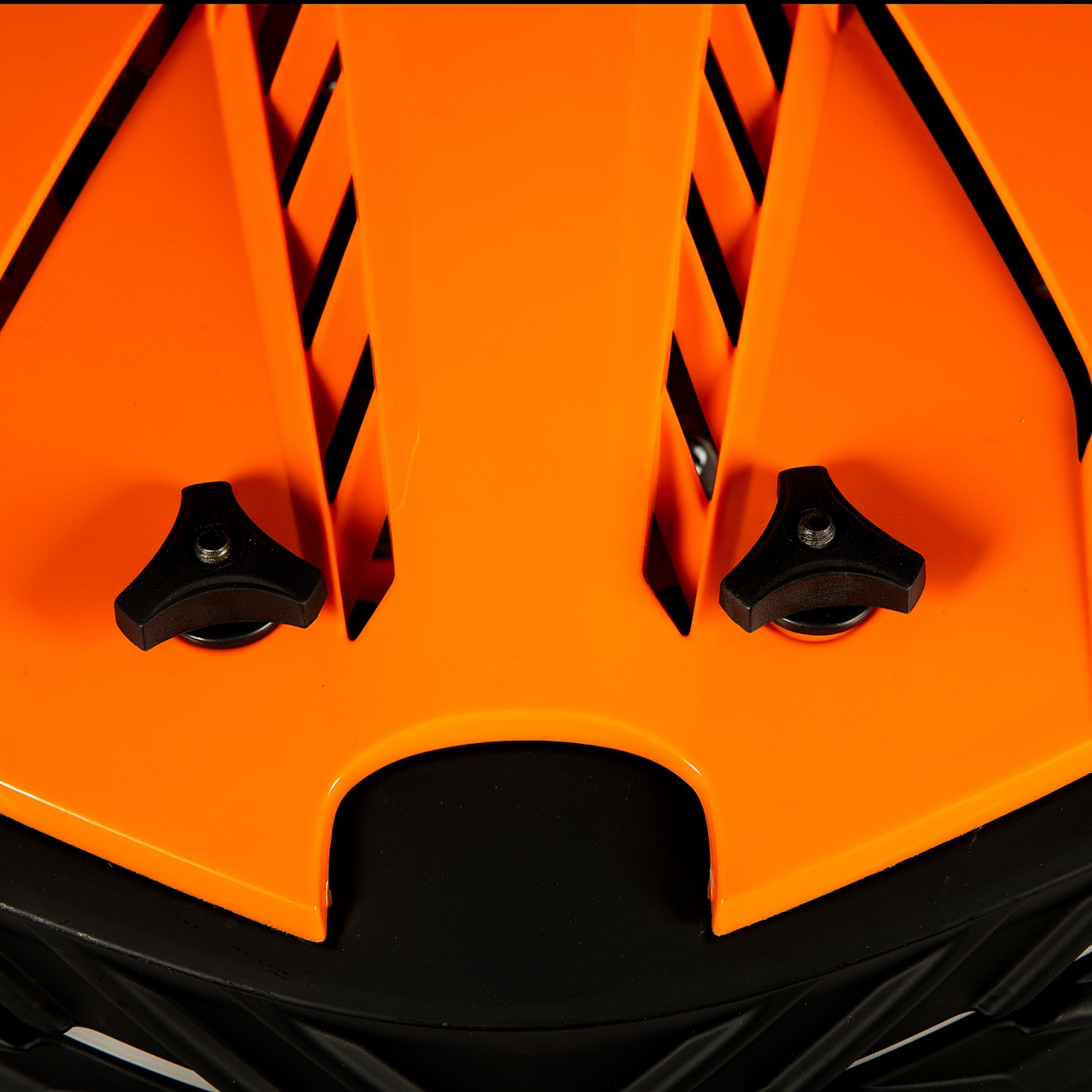

guards ✔ Protective housing + front
headlight ✔ 500-12 wheels for transport and increased
stability ✔ Maintenance
tool kit ✔ User manual


⚠️ Recommendations for use


🔹The equipment is delivered with no oil in the engine or gearbox.
🔧 Before first use, you must fill the equipment with oil in accordance with the specifications in the user manual.
❌ Failure to follow this instruction may result in engine failure and void the warranty.
❌ Use the equipment for its intended purpose – using it for purposes other than those specified in the manual may pose risks and cause serious injury.

🔹 Engine running-in: During the first 10 hours of operation, use moderate revs to allow for even wear of the components.
🔹 Regular checks: After the first 2 hours of use, check and tighten all nuts and bolts.
🔹 Correct positioning: Whilst working, keep the handlebar slightly tilted backwards (5–7°) for efficient cutting.
🔹 Safe use: Do not use the front wheel for agricultural work, but only for transport and turning.


📖 For safety and optimal performance, please consult the user manual before first use!


🔥 Detoolz 11CP 418cc – the ideal solution for extensive and efficient agricultural work!
