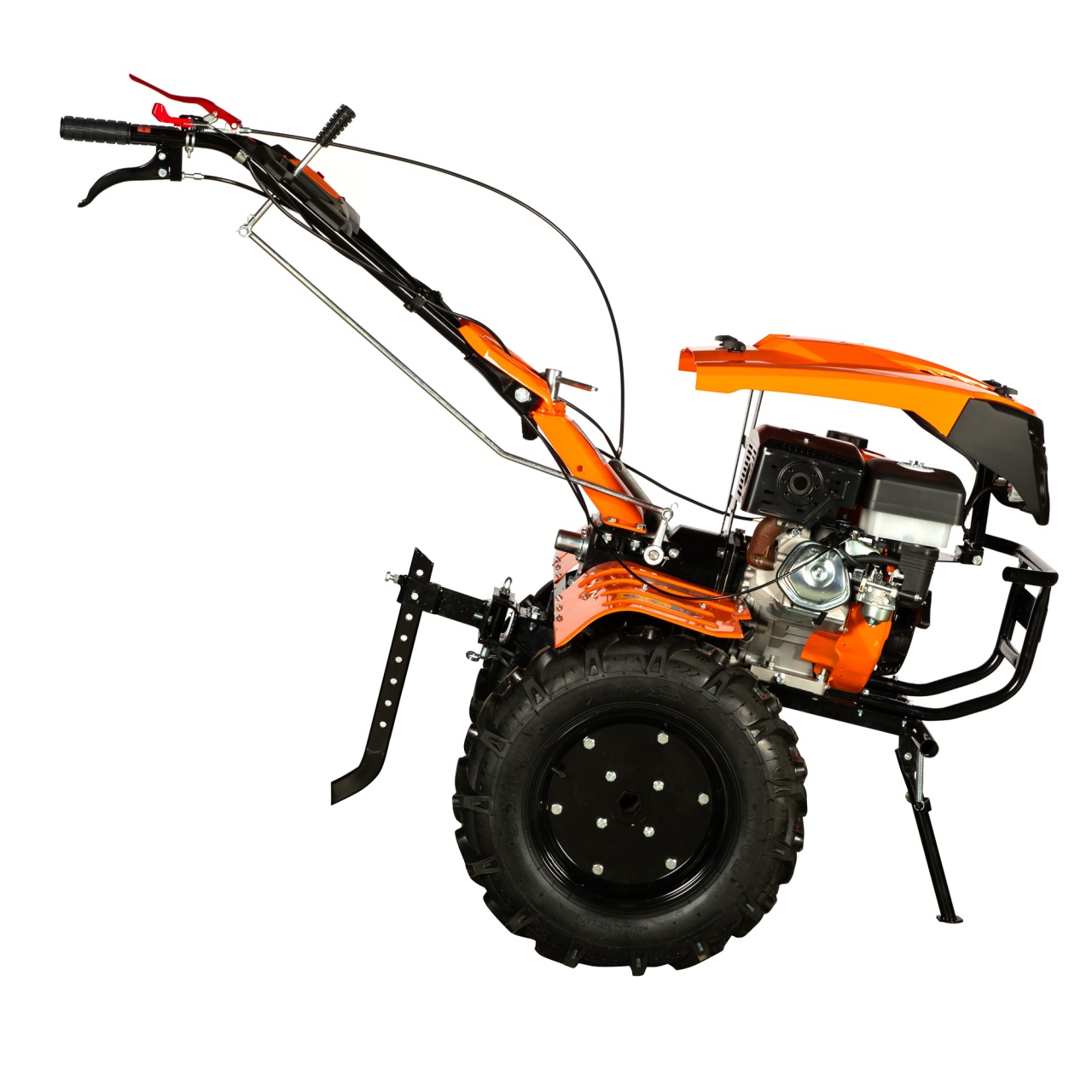

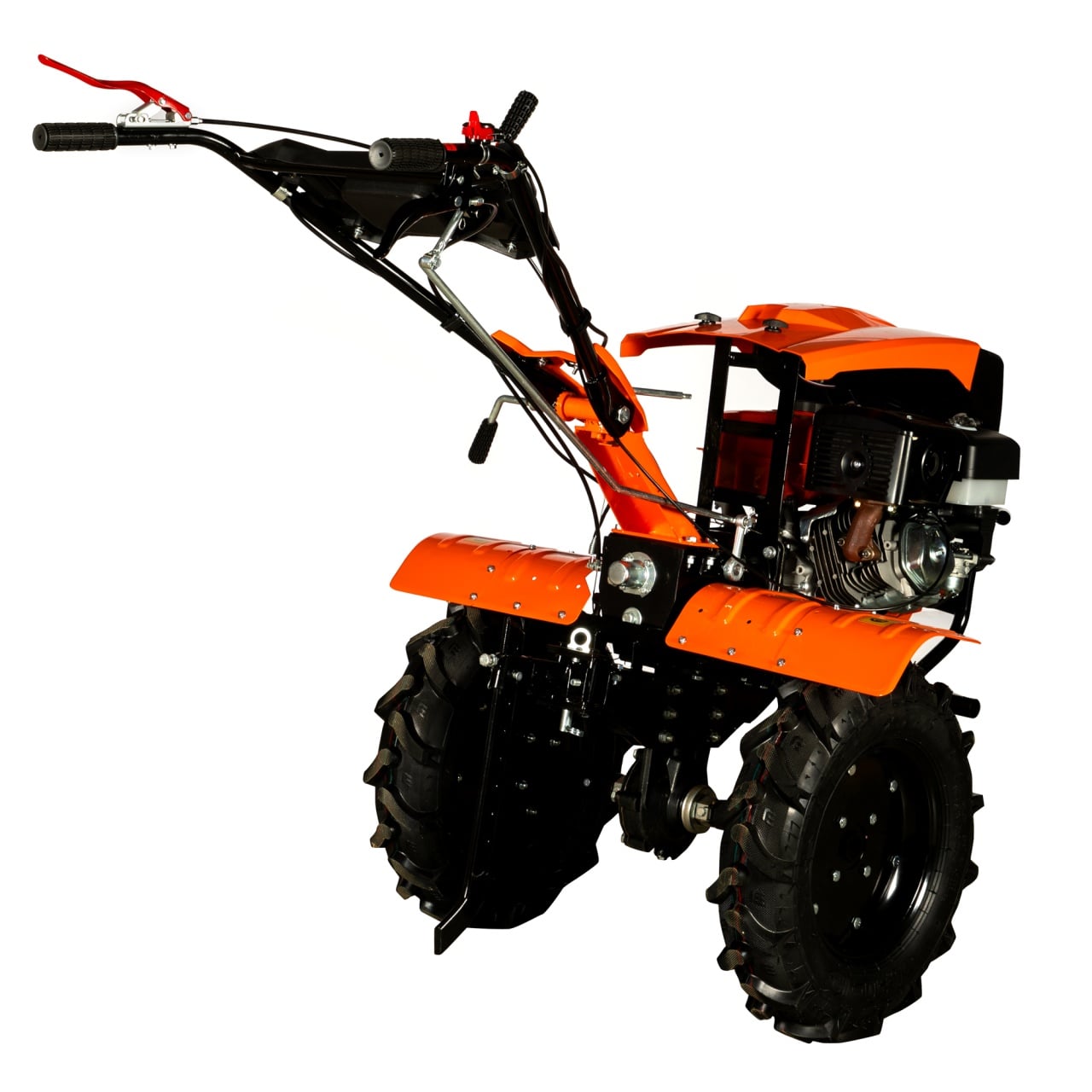

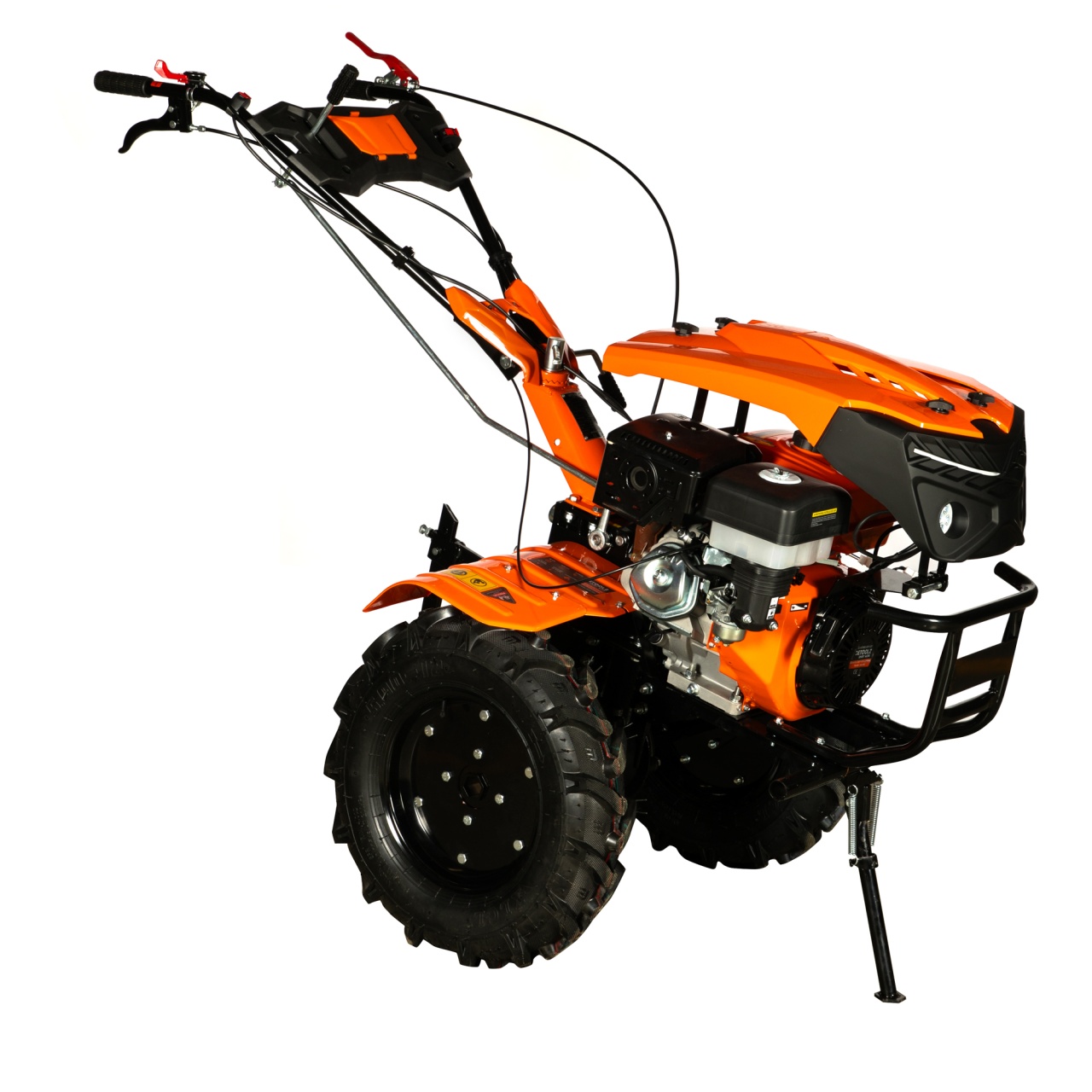

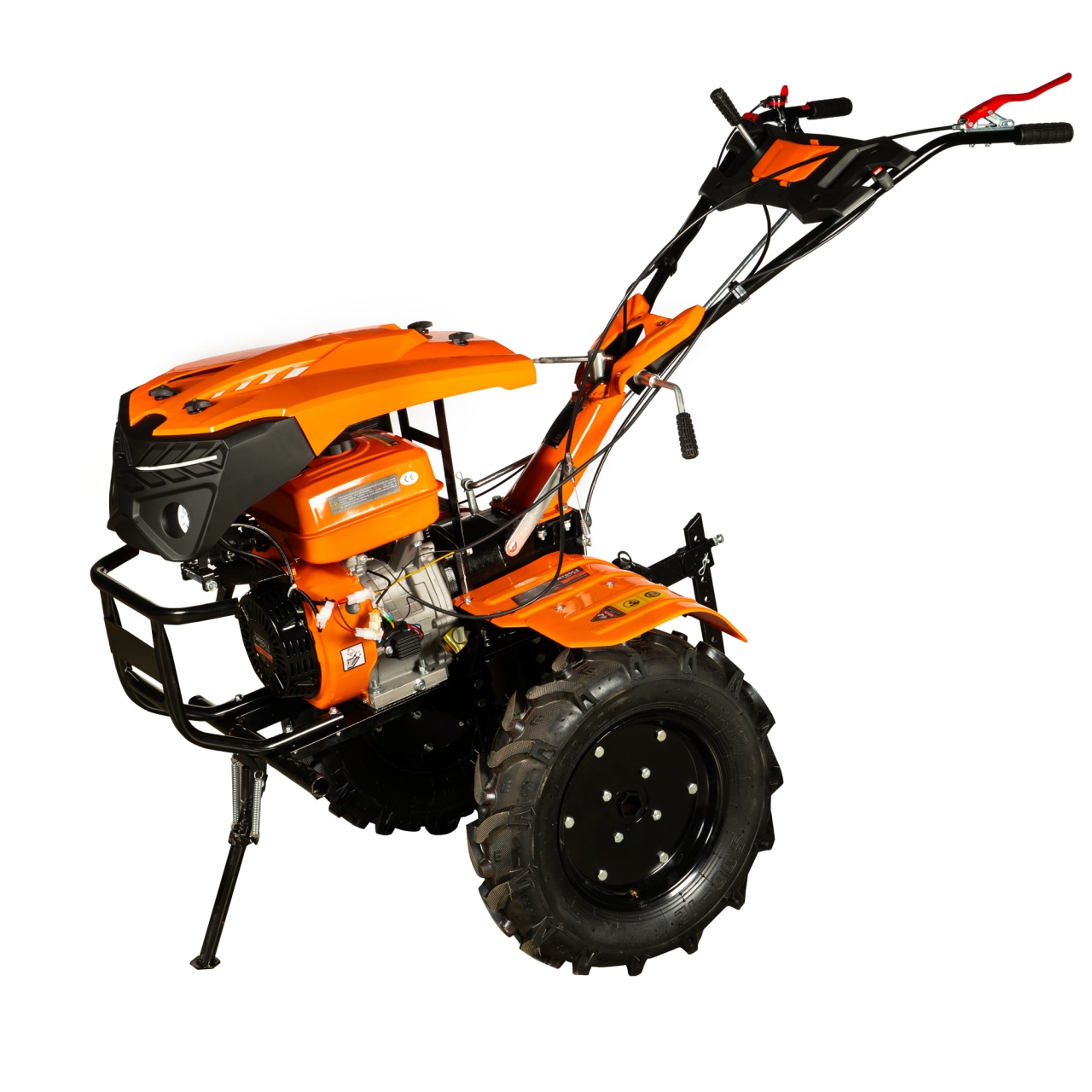

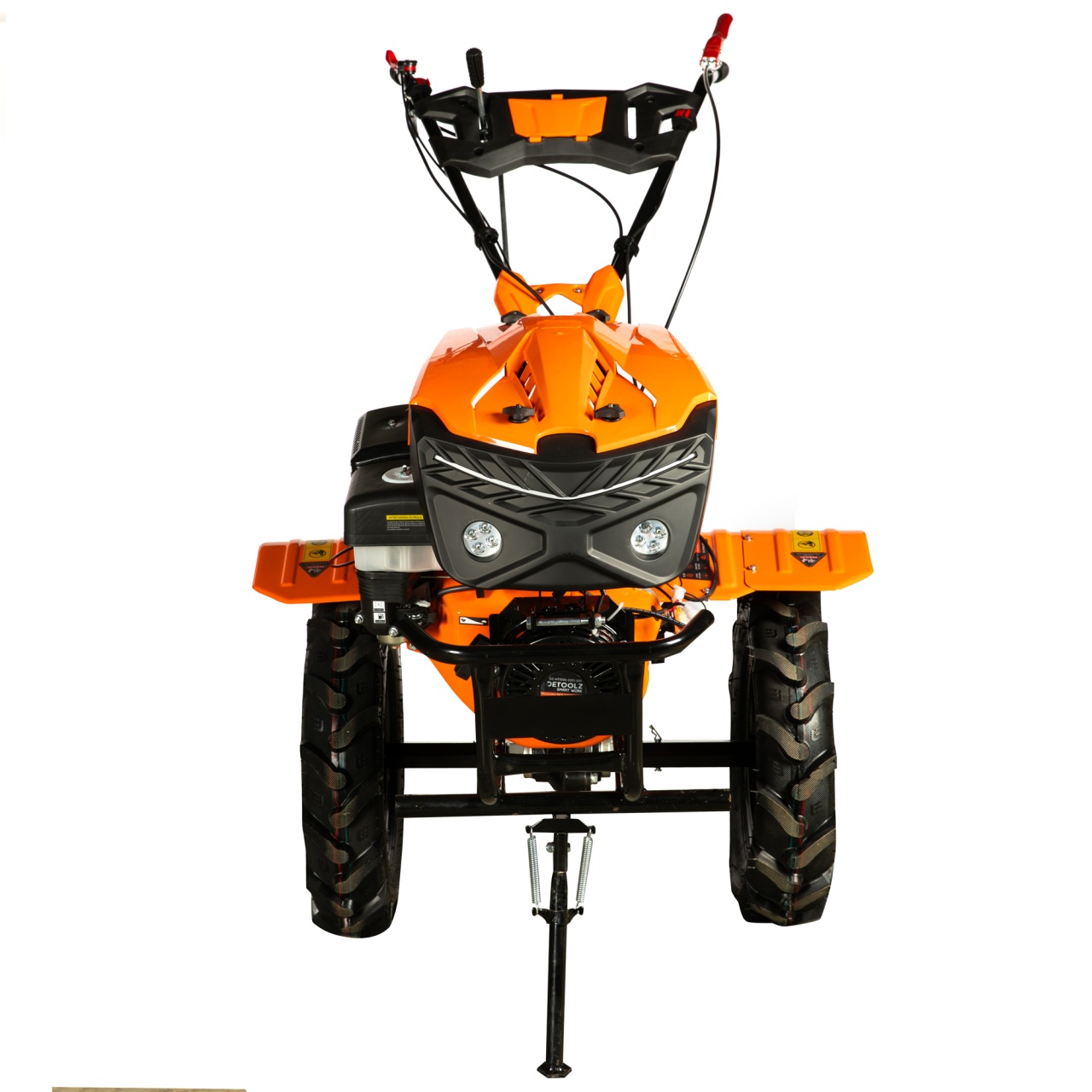

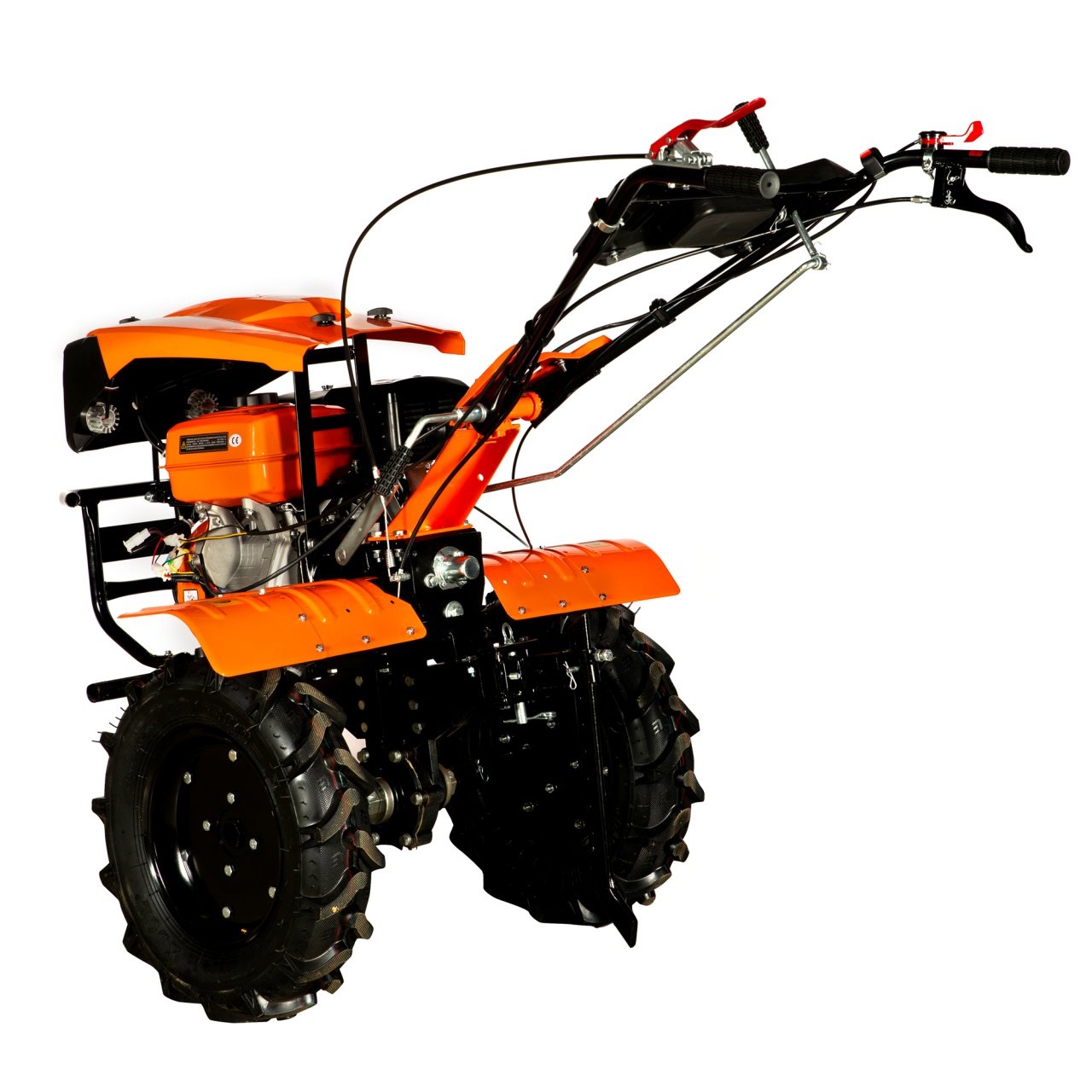

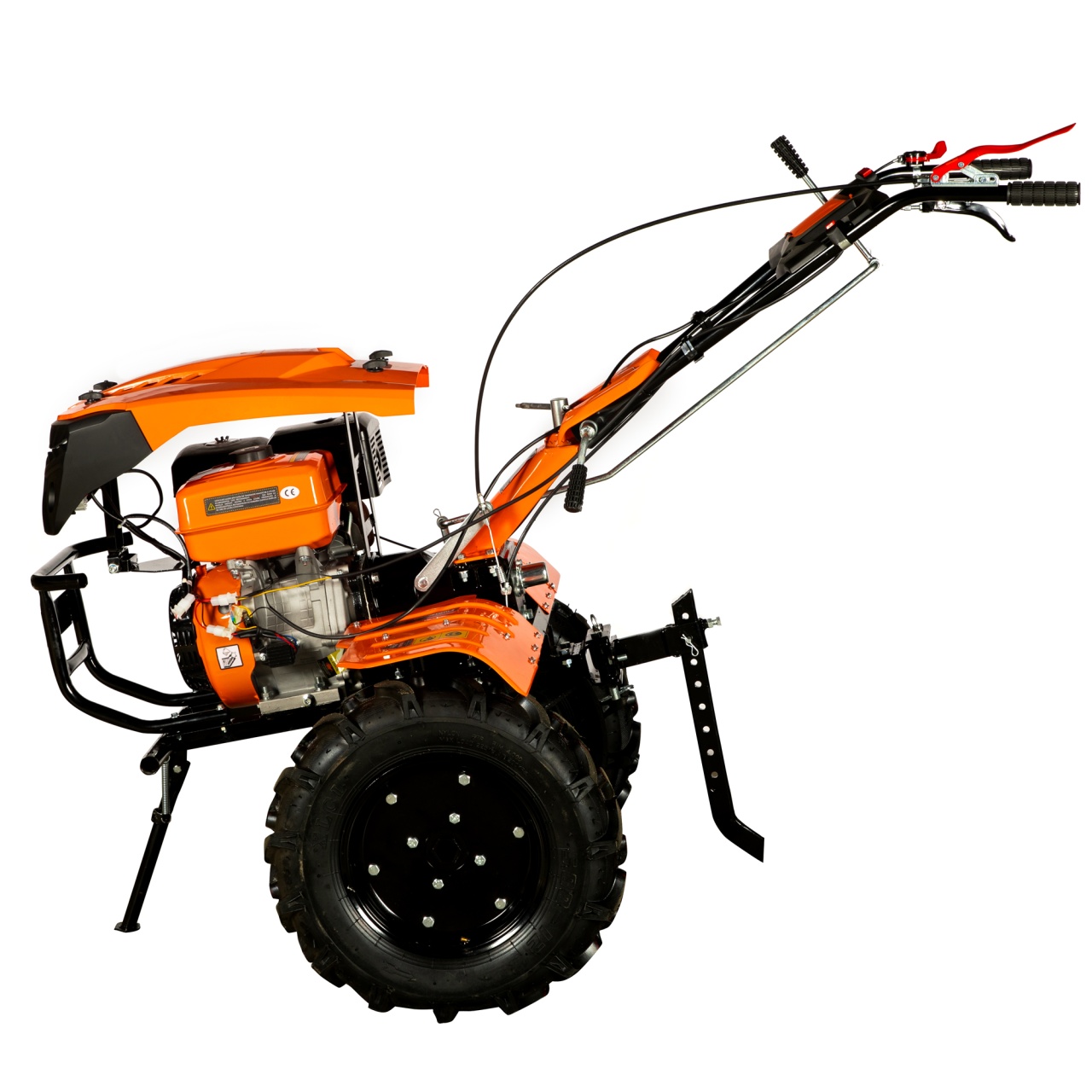

Detoolz 15CP 420cc petrol rotary tiller, 4-stroke, 3-speed, manual start, with wheels – DZ-MT1006-S001-G01 🚜

Power and reliability for complex agricultural work! The Detoolz 15HP 420cc 4-stroke tiller is a robust and high-performance machine, designed for soil cultivation on large agricultural plots, orchards, gardens and greenhouses. With a 15HP engine, gear transmission and 3 speeds, this tiller offers maximum power, efficiency and enhanced manoeuvrability in a variety of working conditions.


🔧 Key features


✅ Powerful 15HP engine – 4-stroke, single-cylinder, OHV, air-cooled
✅ Manual recoil start – TCI ignition system (Transistor Controlled Ignition)
✅ Gear transmission and wet clutch – maximum
durability and efficiency ✅ 3 speeds – 2 forward + 1 reverse, for optimal
manoeuvrability ✅ Working width adjustable up to 1150 mm – extended coverage for high
efficiency ✅ Working depth up to 360 mm – suitable for various soil
types ✅ Large wheels (500-12) – provide increased stability and enhanced traction
✅ Lighting system (front headlight) – allows use even in low-visibility
conditions ✅ Low fuel consumption – high efficiency and minimal operating
costs ✅ Ergonomic and robust design – ensures stability and comfort in use


📌 Recommended uses


✔ Soil preparation for cultivation – ploughing, ridging, loosening and levelling
✔ Farmland maintenance – fertilising, sowing and harvesting (with compatible accessories)
✔ Use on various types of terrain – dry soil, rice fields, orchards, gardens and greenhouses
✔ Work on hilly and uneven terrain – thanks to increased power and variable speeds


📌 Technical specifications

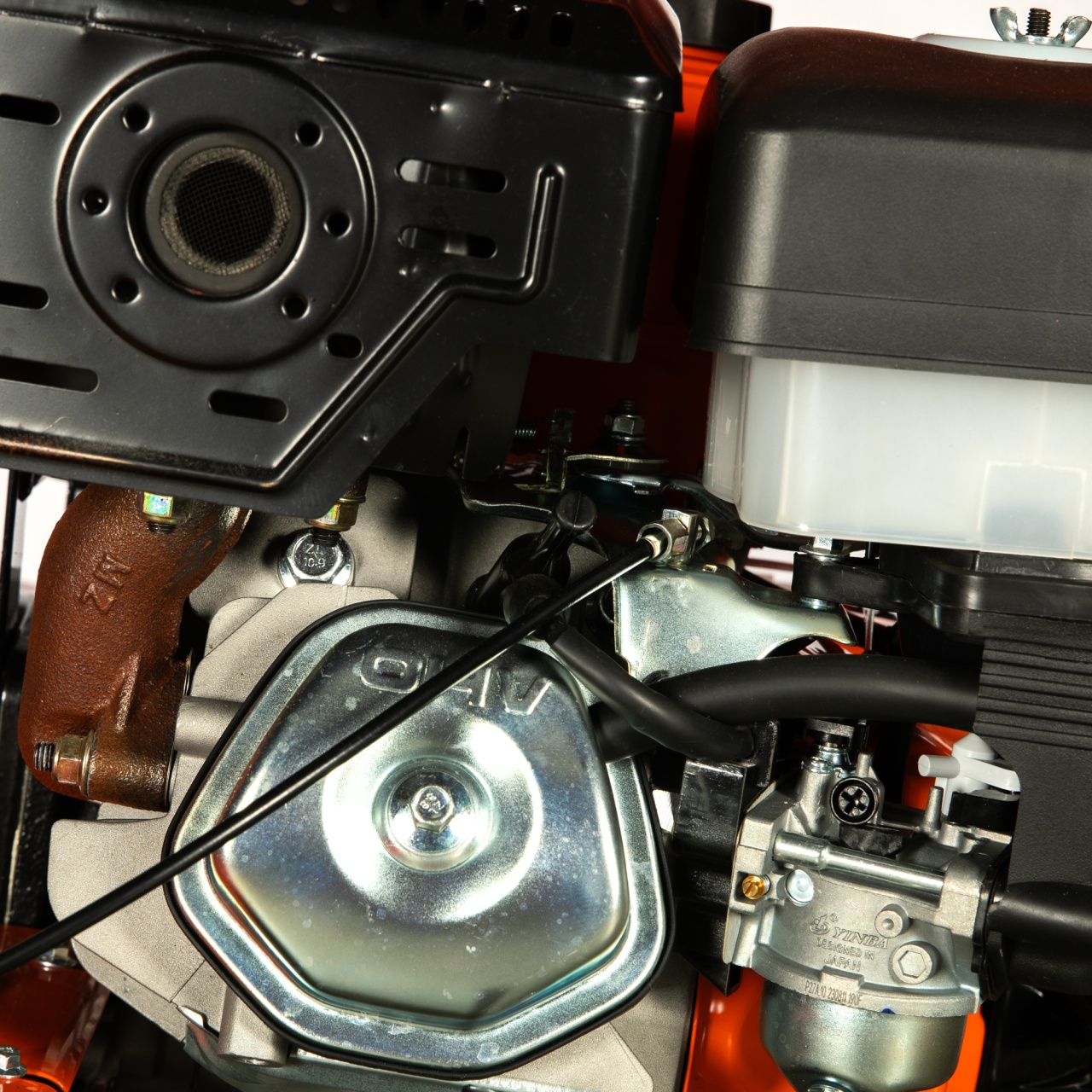

🔹 Engine type: 4-stroke, single-cylinder, OHV, air-cooled
🔹 Displacement: 420cc
🔹 Engine power: 15HP
🔹 Engine speed: 1800–3600 rpm
🔹 Fuel type: Petrol
🔹 Fuel tank capacity: 6L
🔹 Fuel consumption: ≤2.0L/h
🔹 Engine oil capacity: 1.1L (SAE10W-30)
🔹 Transmission type: Gearbox
🔹 Clutch type: Wet
clutch 🔹 Transmission oil: T90 (capacity: 2.6L)
🔹 Gears: 2 forward + 1 reverse
🔹 Maximum working width: 1150 mm
🔹 Maximum working depth: 360 mm
🔹 Number of cutter blades: 32 + 2 side
discs 🔹 Wheel size: 500-12
🔹 Noise level: 103.8 dB(A)
🔹 Net weight: 143 kg
🔹 Equipment dimensions: 98 x 57 x 78 cm


💡 User benefits


✔ High power for extensive agricultural work – ideal for medium and large

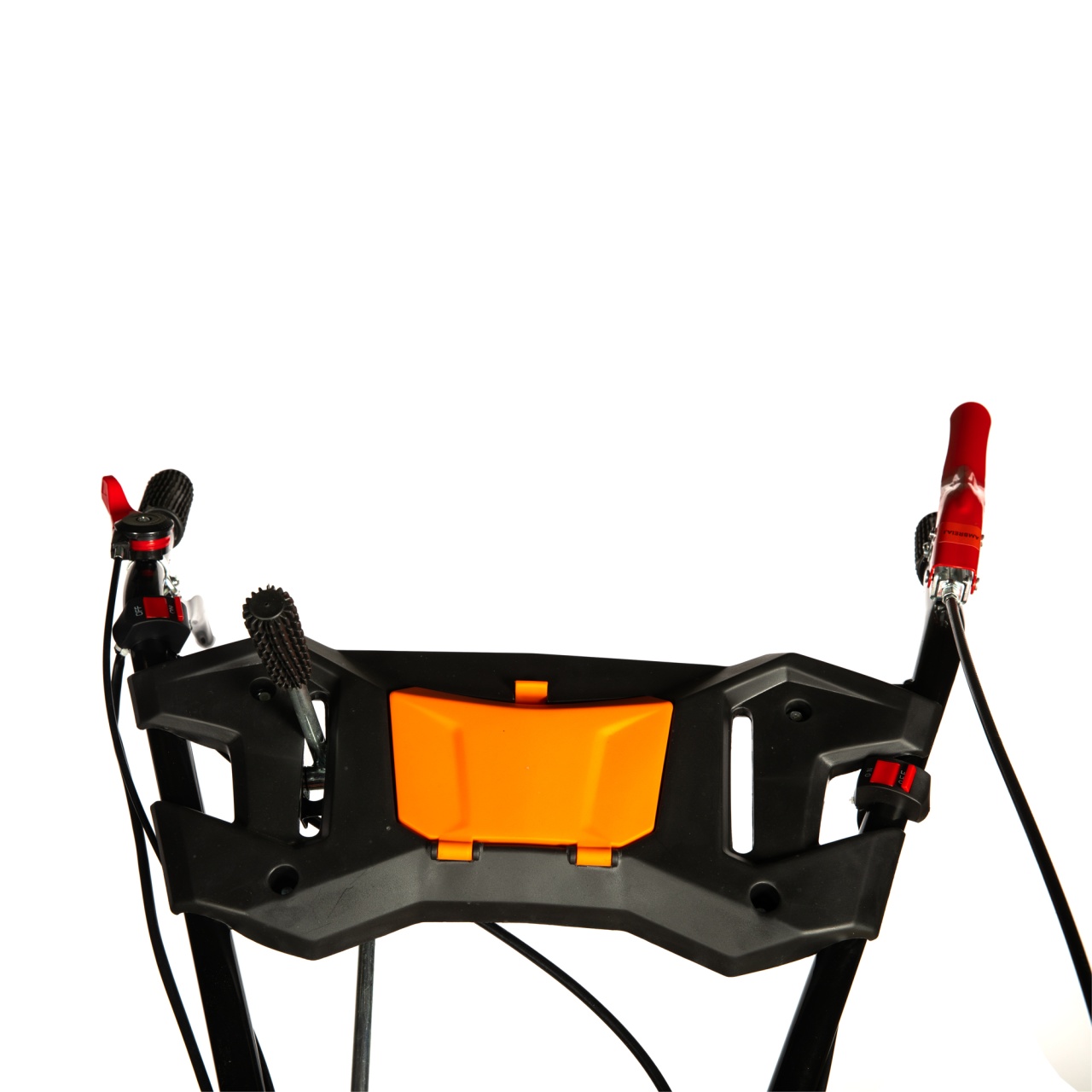

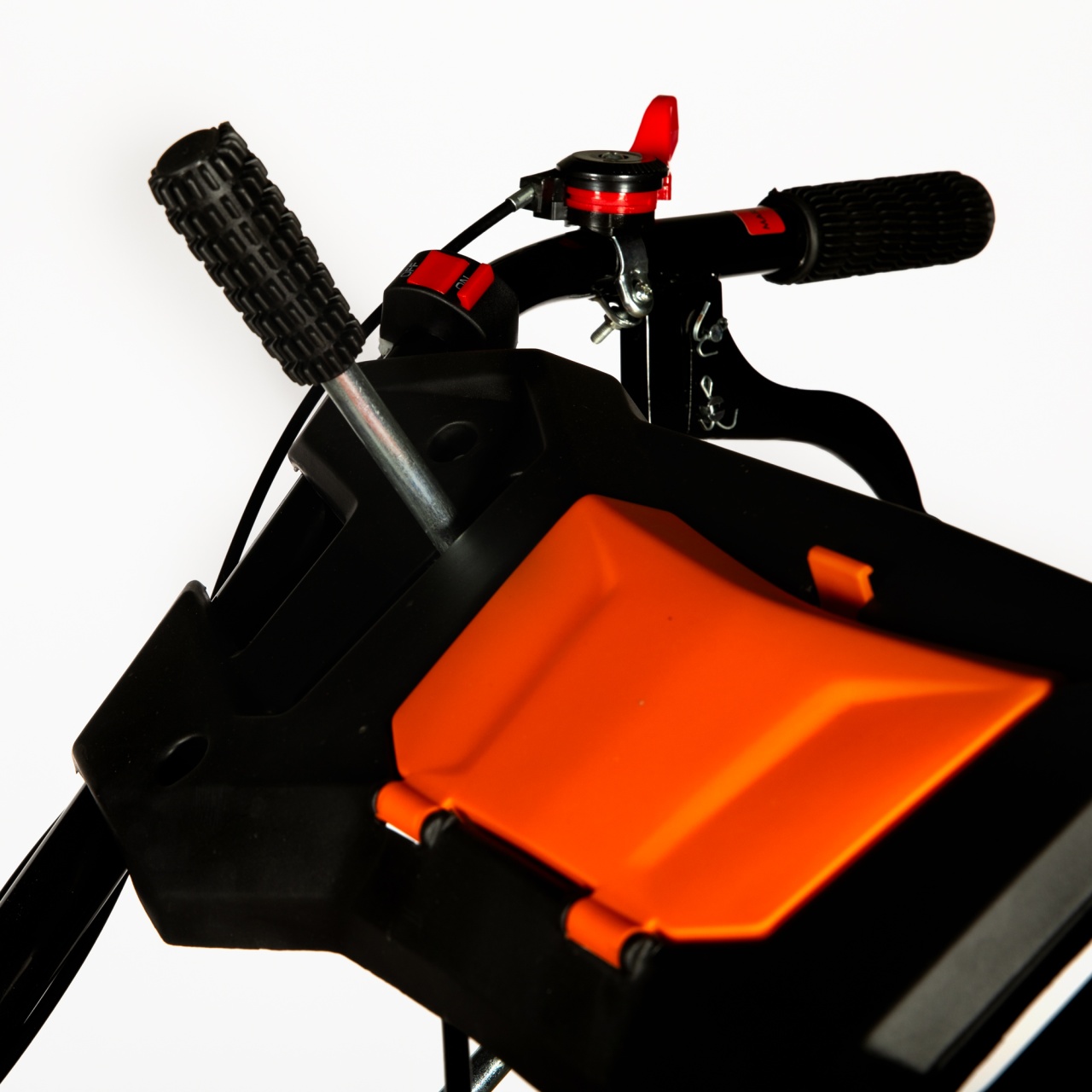

areas ✔ Improved manoeuvrability – horizontally and vertically
adjustable handlebars ✔ Compatibility with various accessories – can be used for multiple agricultural
activities ✔ High efficiency and low fuel consumption – minimal maintenance costs


📦 Package contents


✔ Detoolz 15CP 420cc, 4-stroke

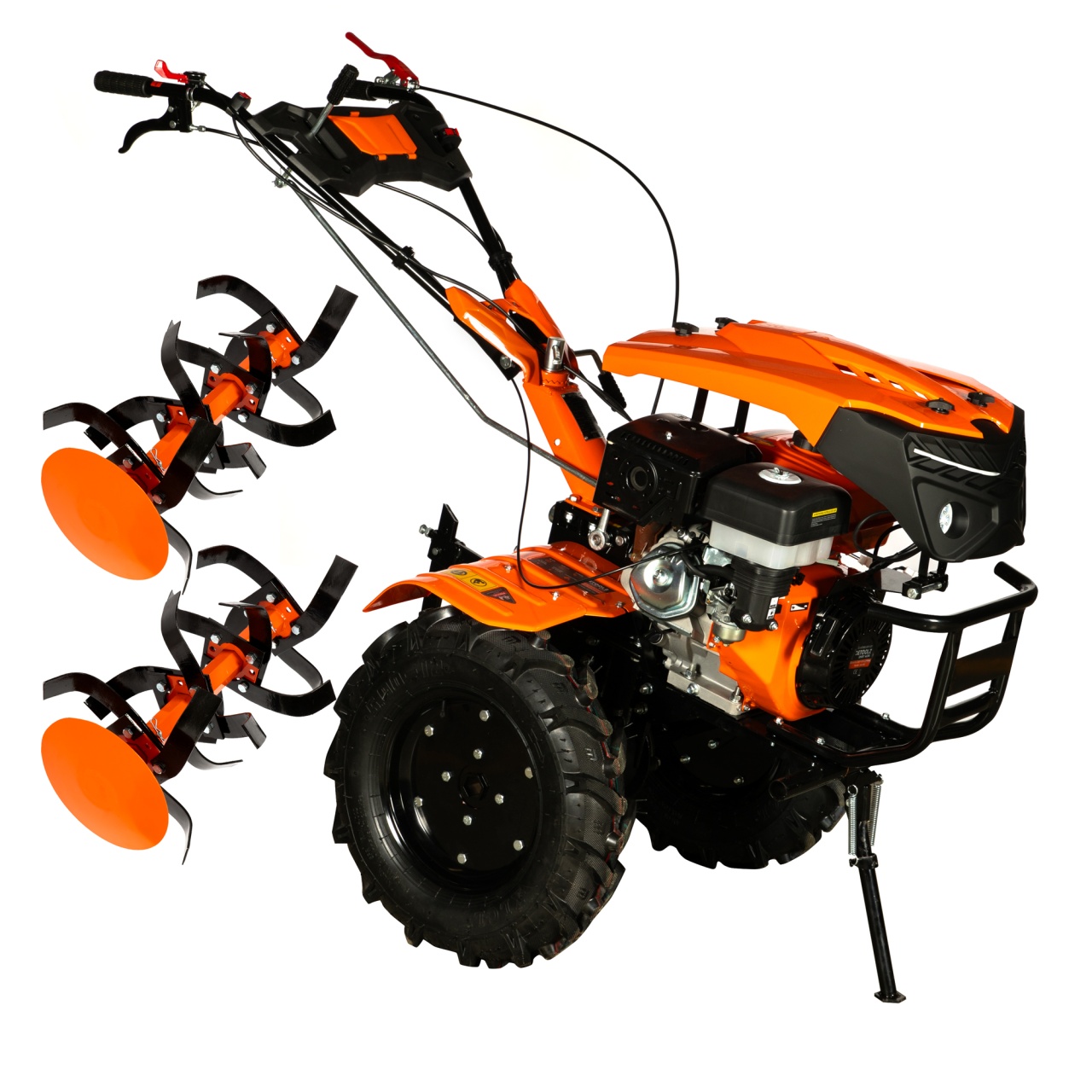

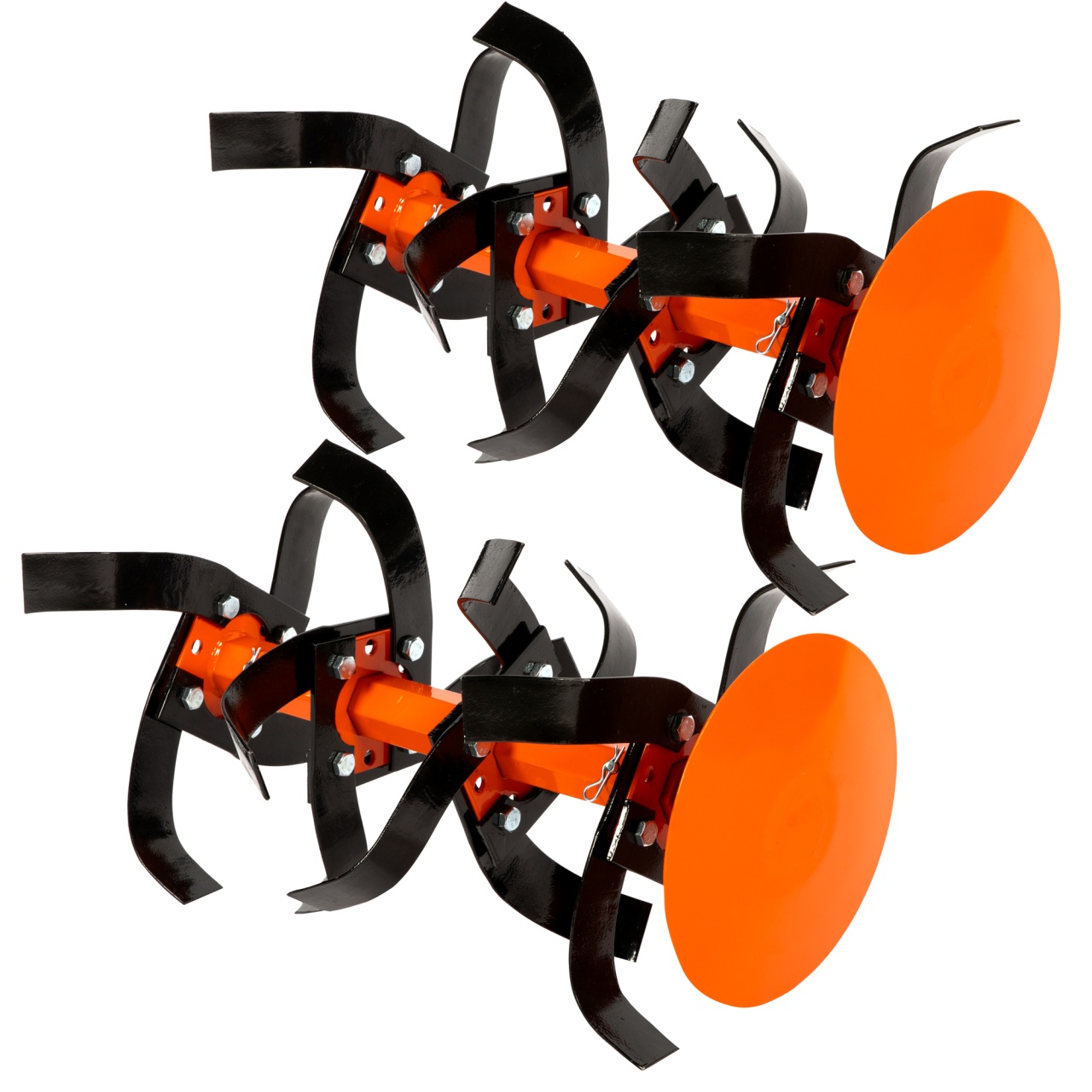

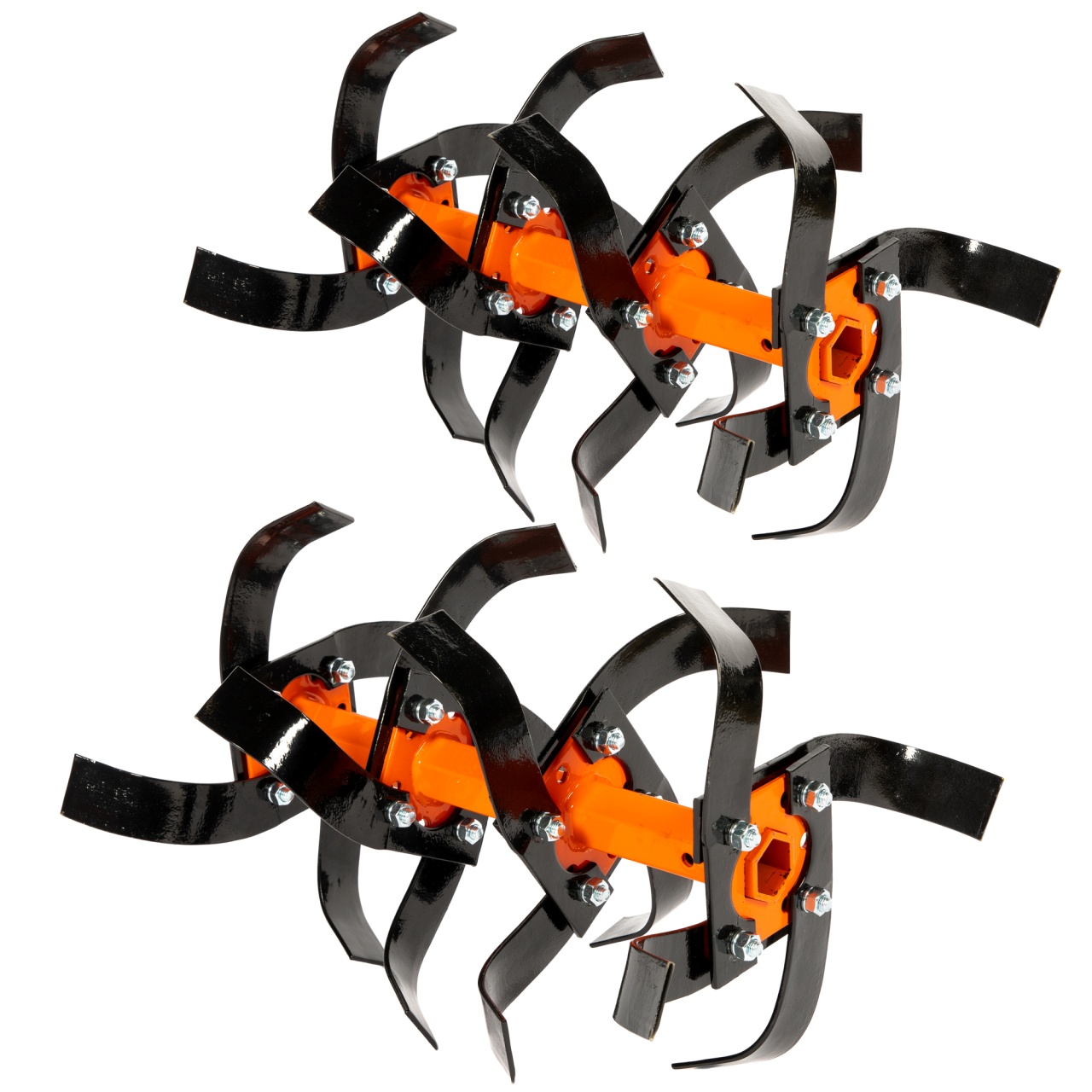

tiller ✔ Cutter set (32 blades + 2 side discs)
✔ 4 protective
wings ✔ Protective housing + front
headlight ✔ 500-12 wheels for transport and increased
stability ✔ Maintenance
tool kit ✔ User manual


⚠️ Recommendations for use


🔹The machine is delivered with no oil in the engine or gearbox.
🔧 Before first use, you must fill the machine with oil in accordance with the specifications in the user manual.
❌ Failure to follow this instruction may result in engine failure and void the warranty.
❌ Use the equipment for its intended purpose – using it for purposes other than those specified in the manual may pose risks and cause serious injury.

🔹 Engine running-in: During the first 10 hours of operation, use moderate revs to allow for even wear of the components.
🔹 Regular checks: After the first 2 hours of use, check and tighten all nuts and bolts.
🔹 Correct positioning: Whilst working, keep the handlebar slightly tilted backwards (5–7°) for efficient cutting.
🔹 Safe use: Do not use the front wheel for agricultural work, but only for transport and turning.



📖 For safety and optimal performance, consult the user manual before first use!


🔥 Detoolz 15CP 420cc – the ideal solution for extensive and efficient agricultural work!
