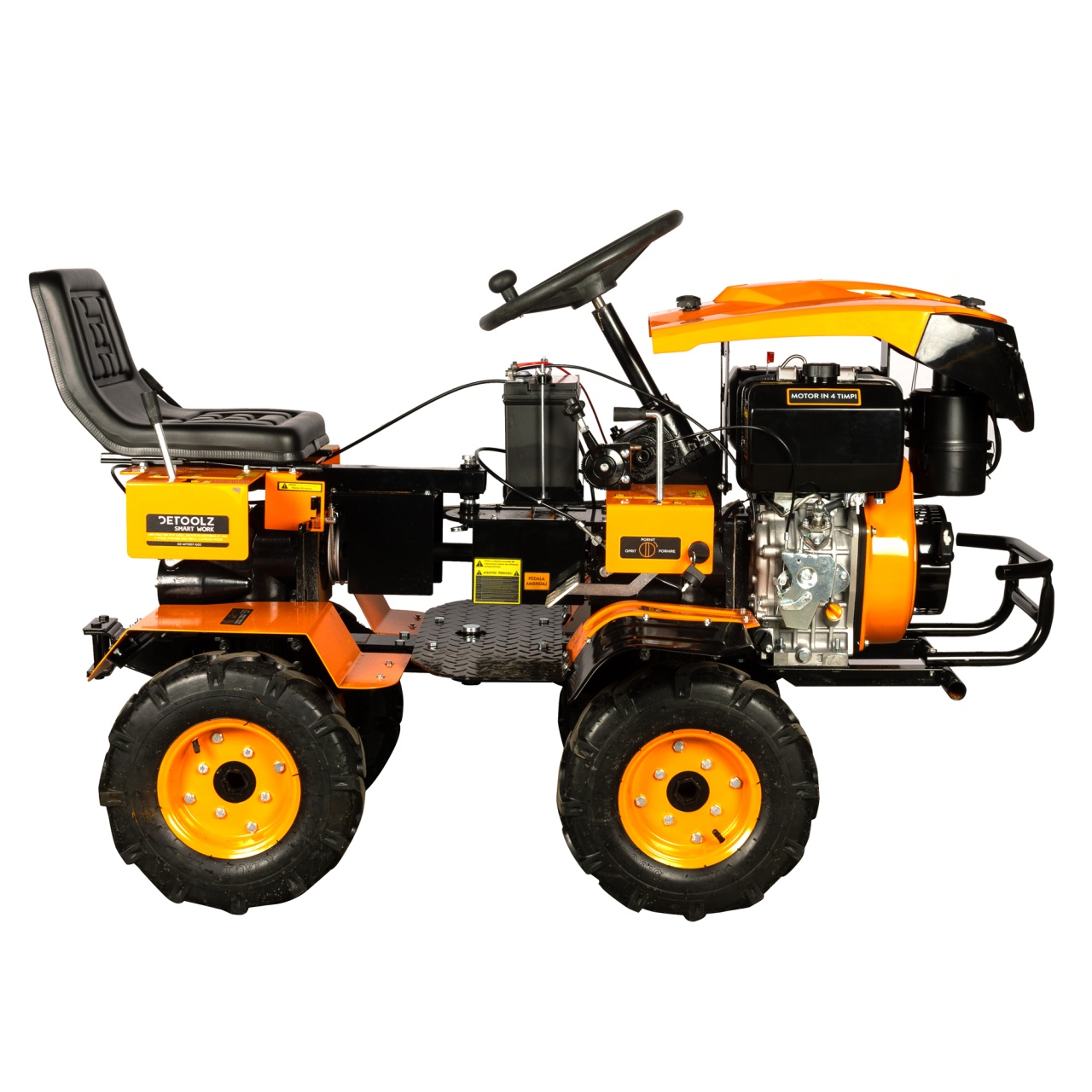

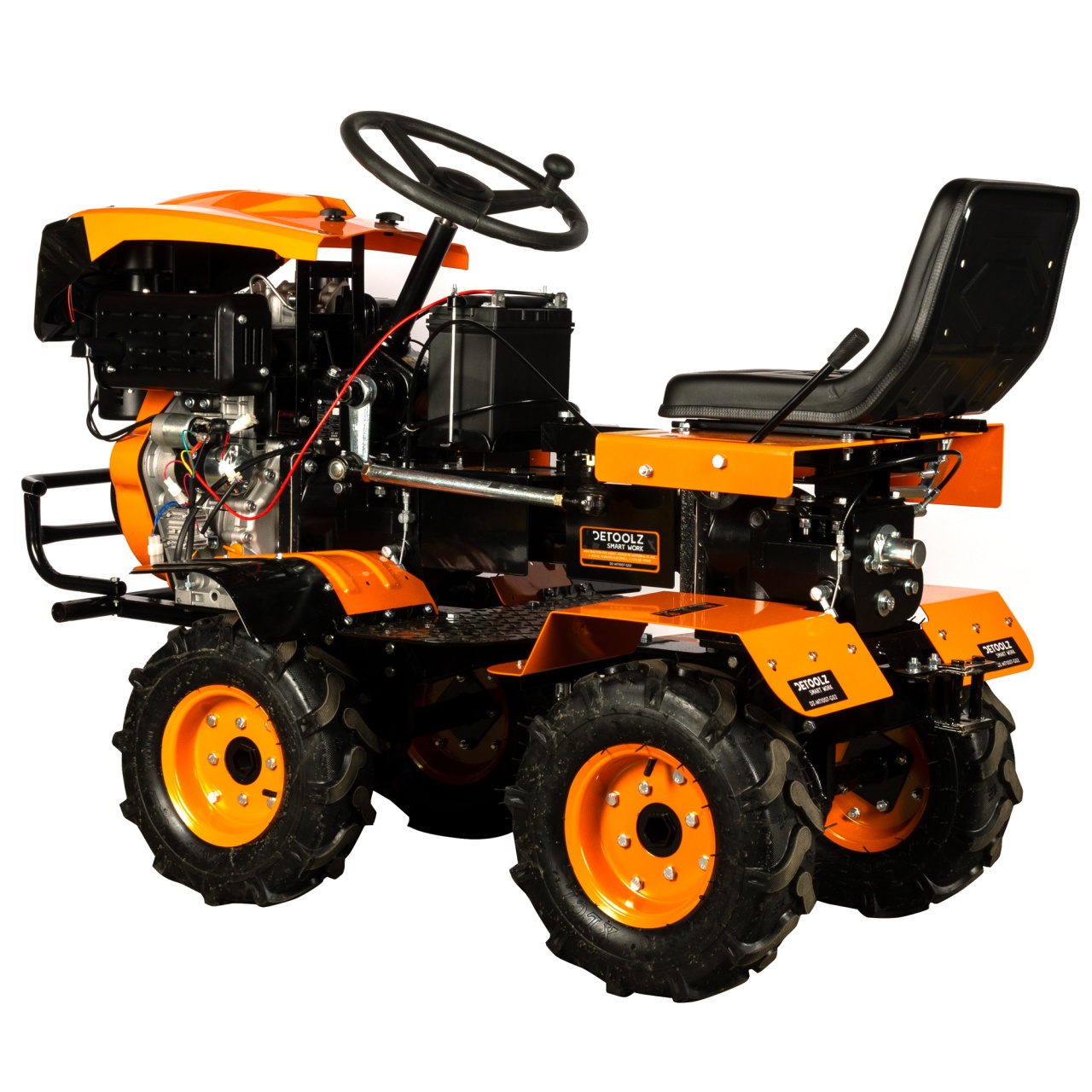

Detoolz Mini Tractor, 17 hp, 530 cc, 4-stroke diesel engine, 4x4, 4-speed, electric start, 2 gearboxes

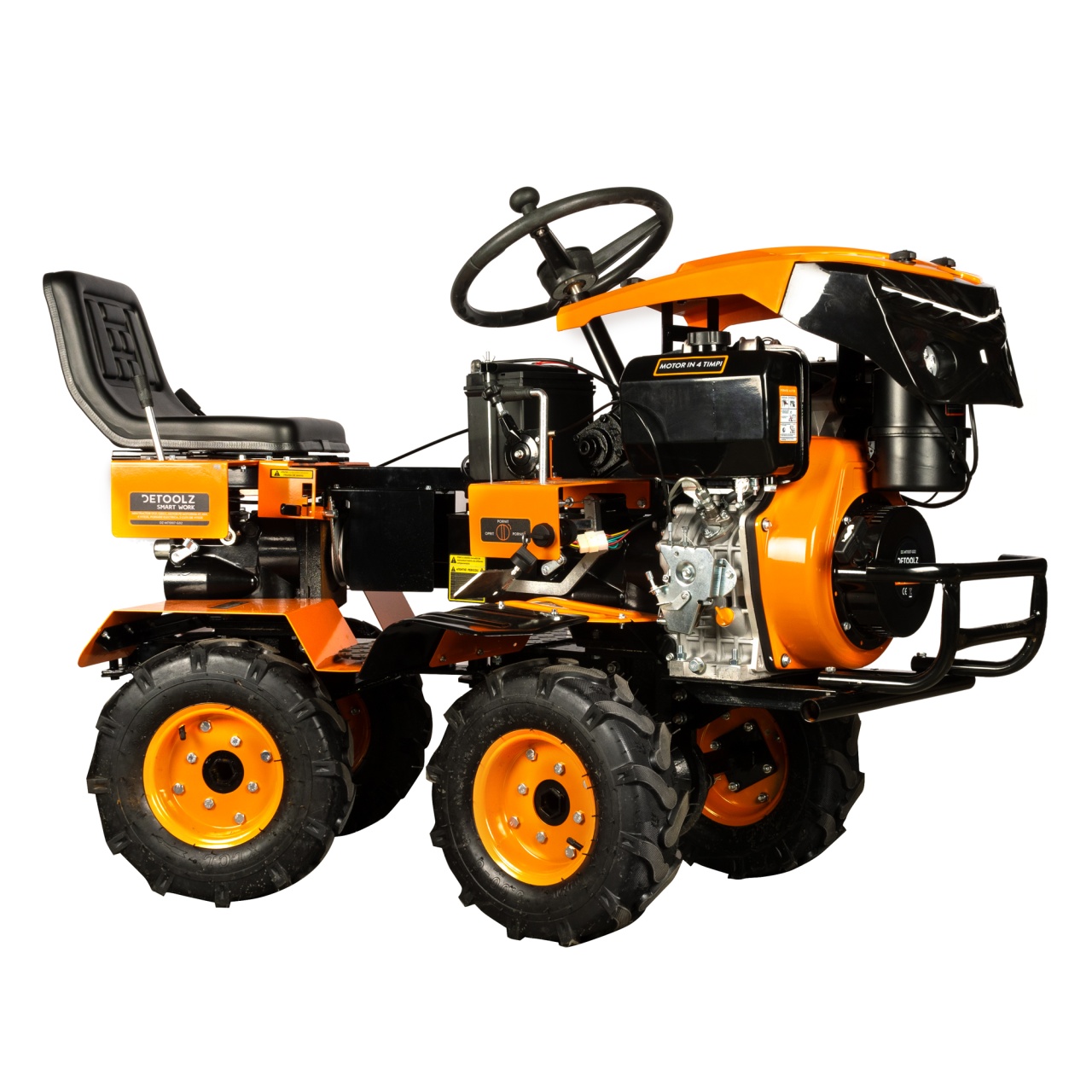

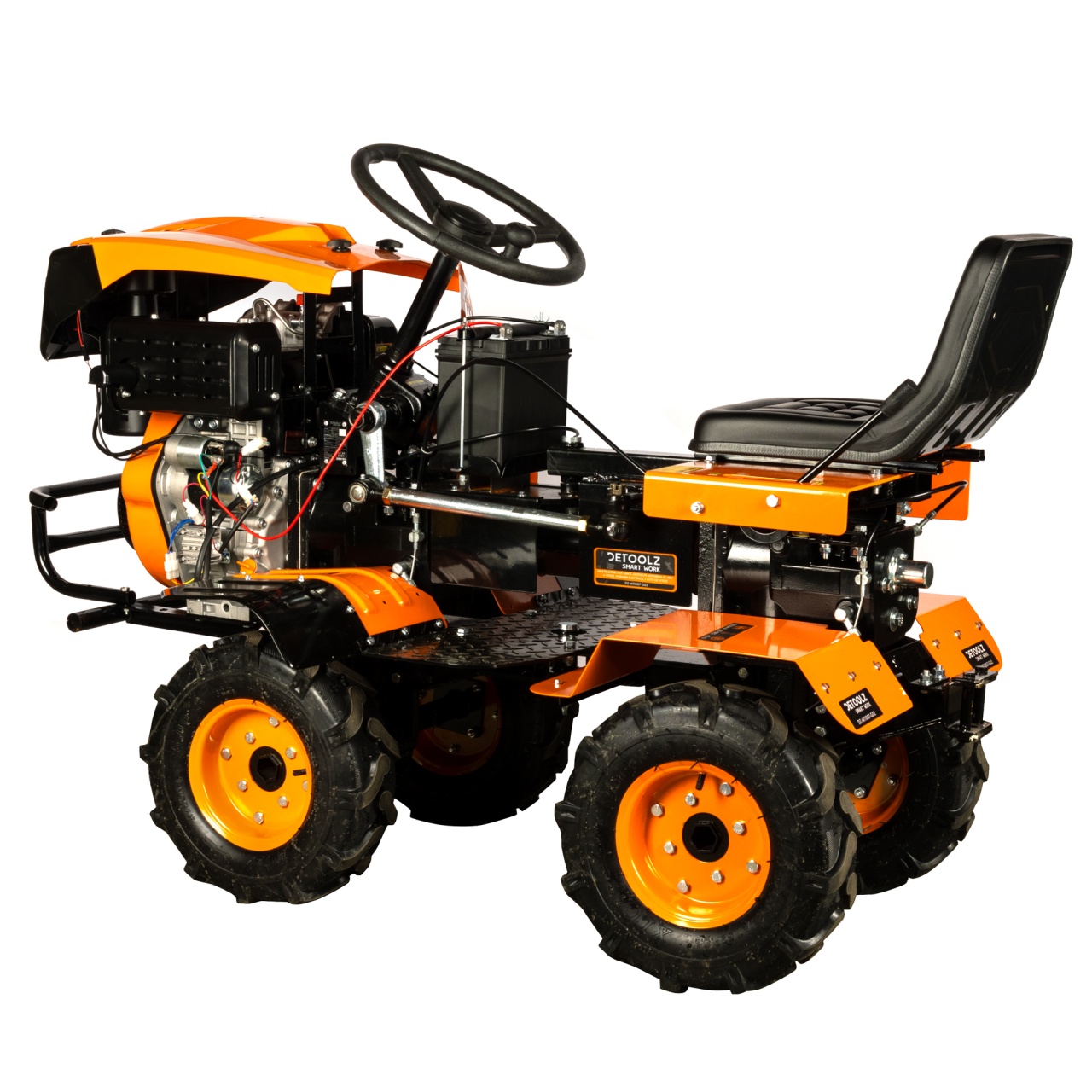

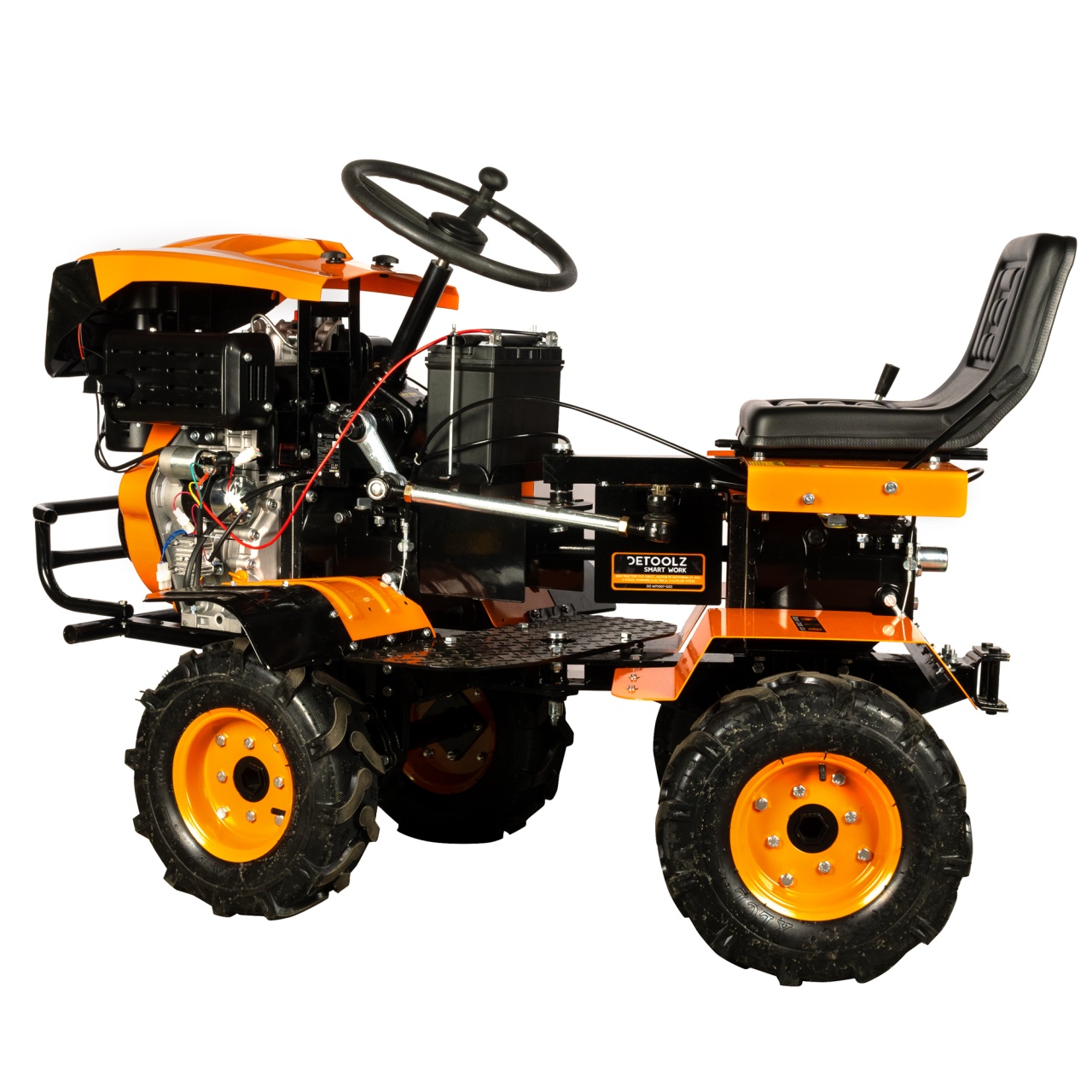

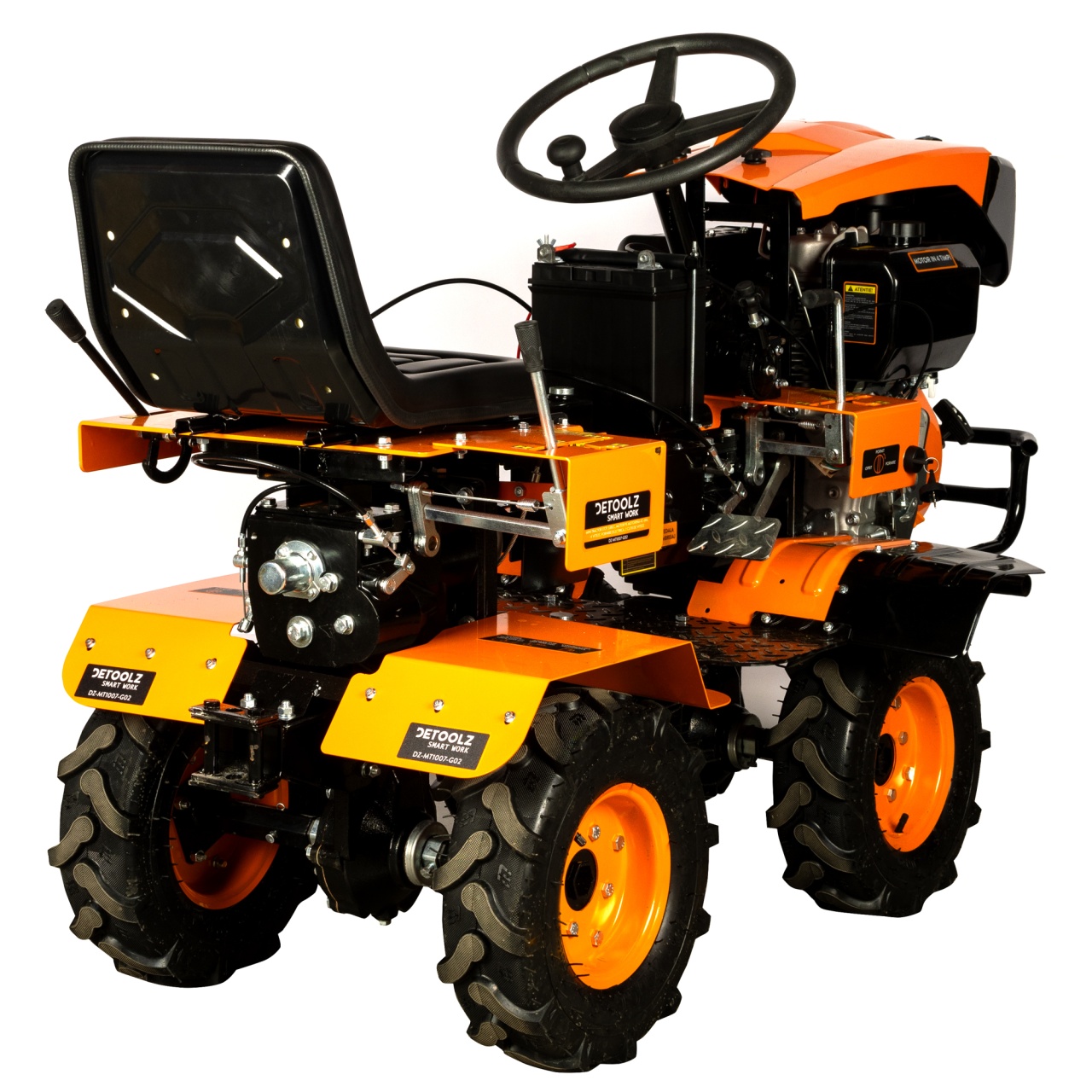

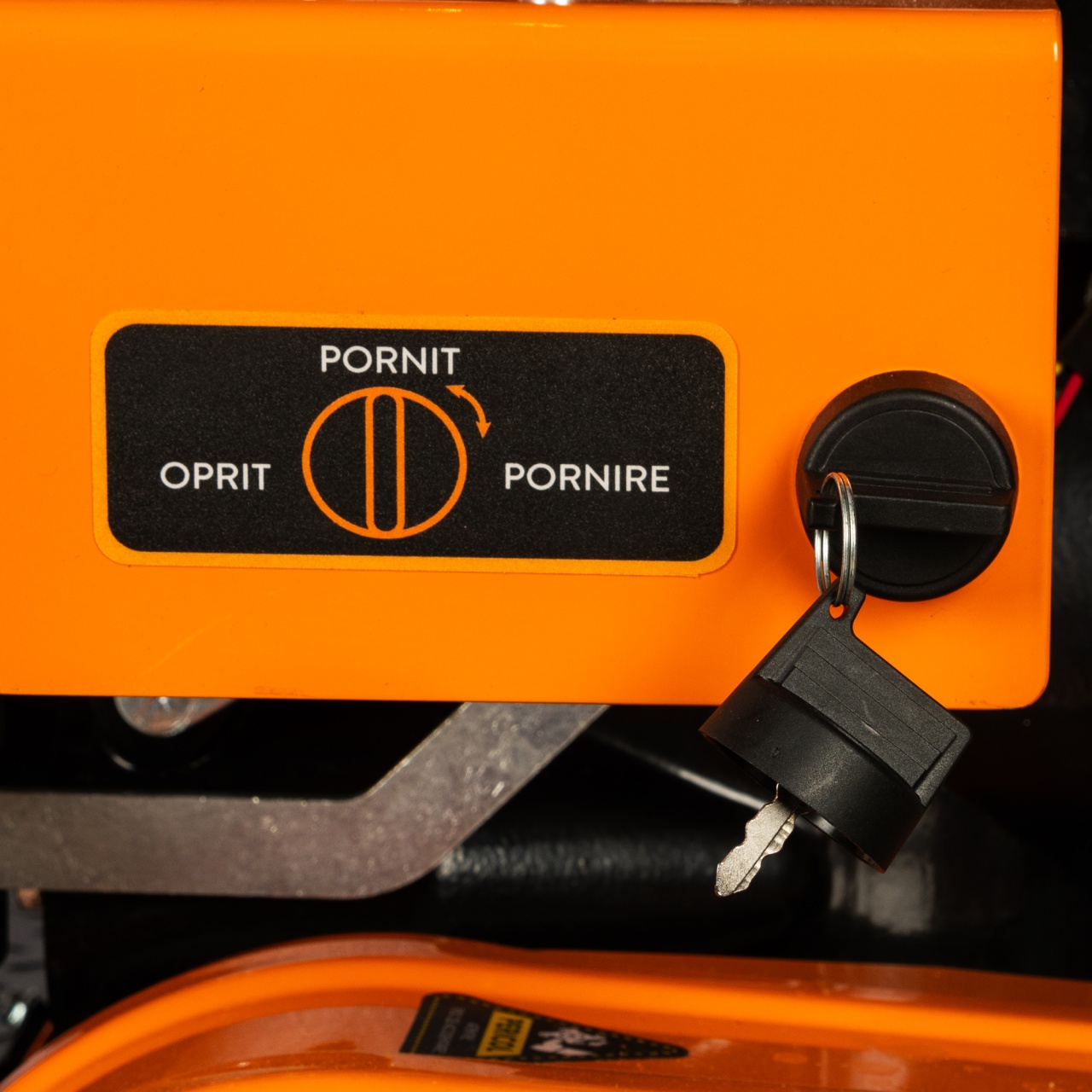

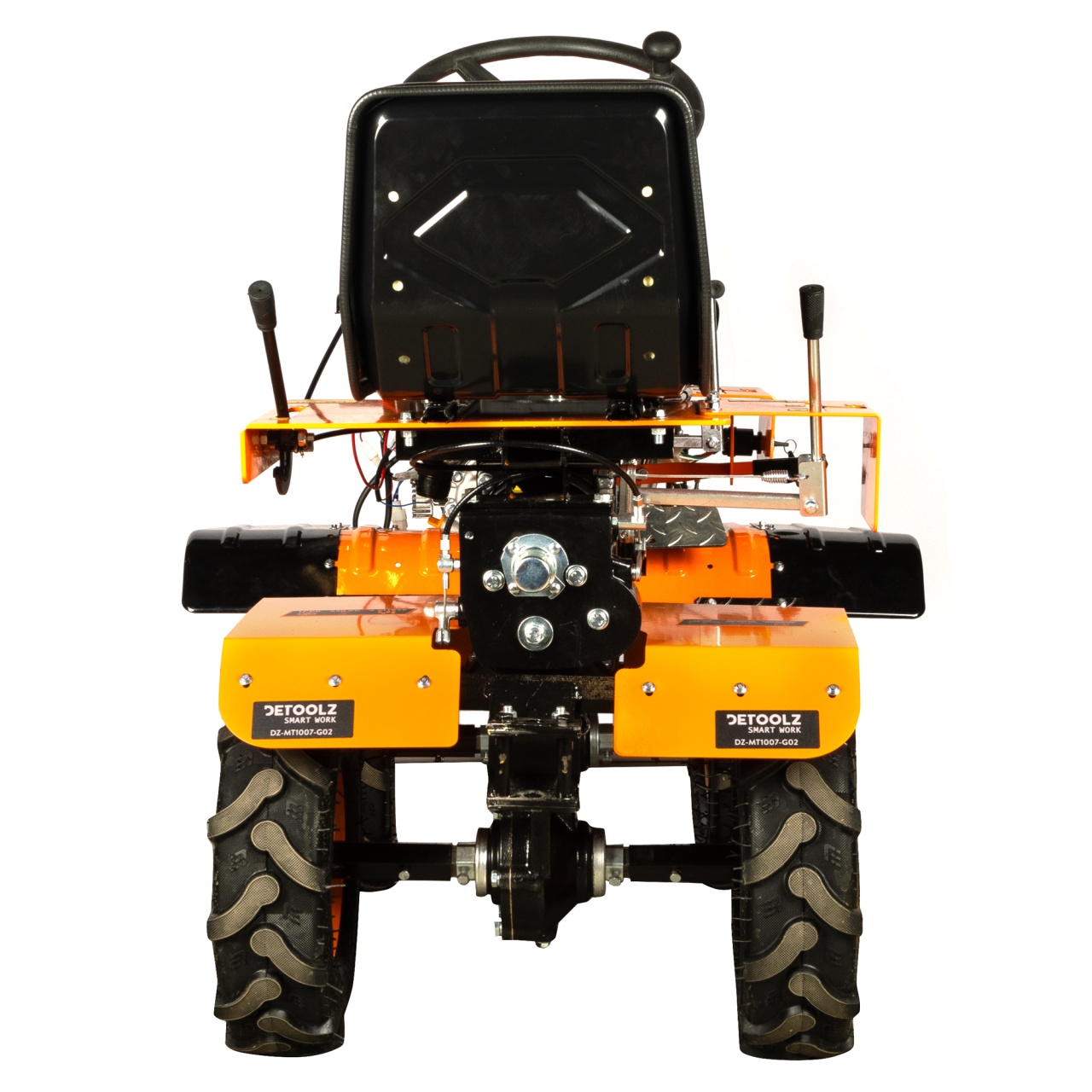

The Detoolz DZ-MT1007-G02 mini tractor is a compact, multifunctional and efficient agricultural machine, designed for work on small and medium-sized agricultural plots. Fitted with a 530cc, air-cooled, 4-stroke, single-cylinder OHV diesel engine, it develops 17HP and features electric key start or manual pull-start. It is built to operate in a variety of terrain conditions, including hilly areas, slightly waterlogged land, orchards, gardens and greenhouses.


Technical specifications:


• Engine power: 17 hp
• Engine capacity: 530cc

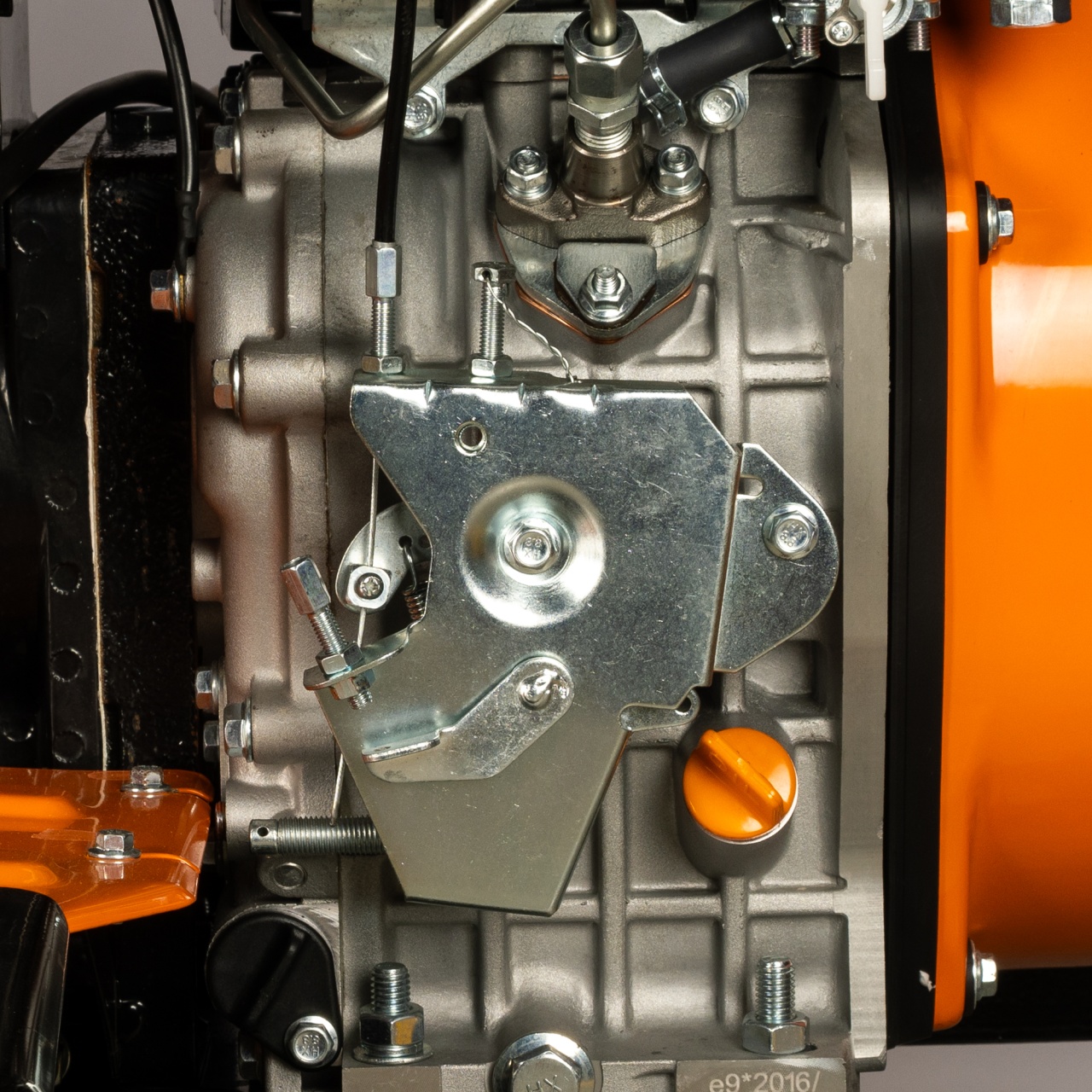

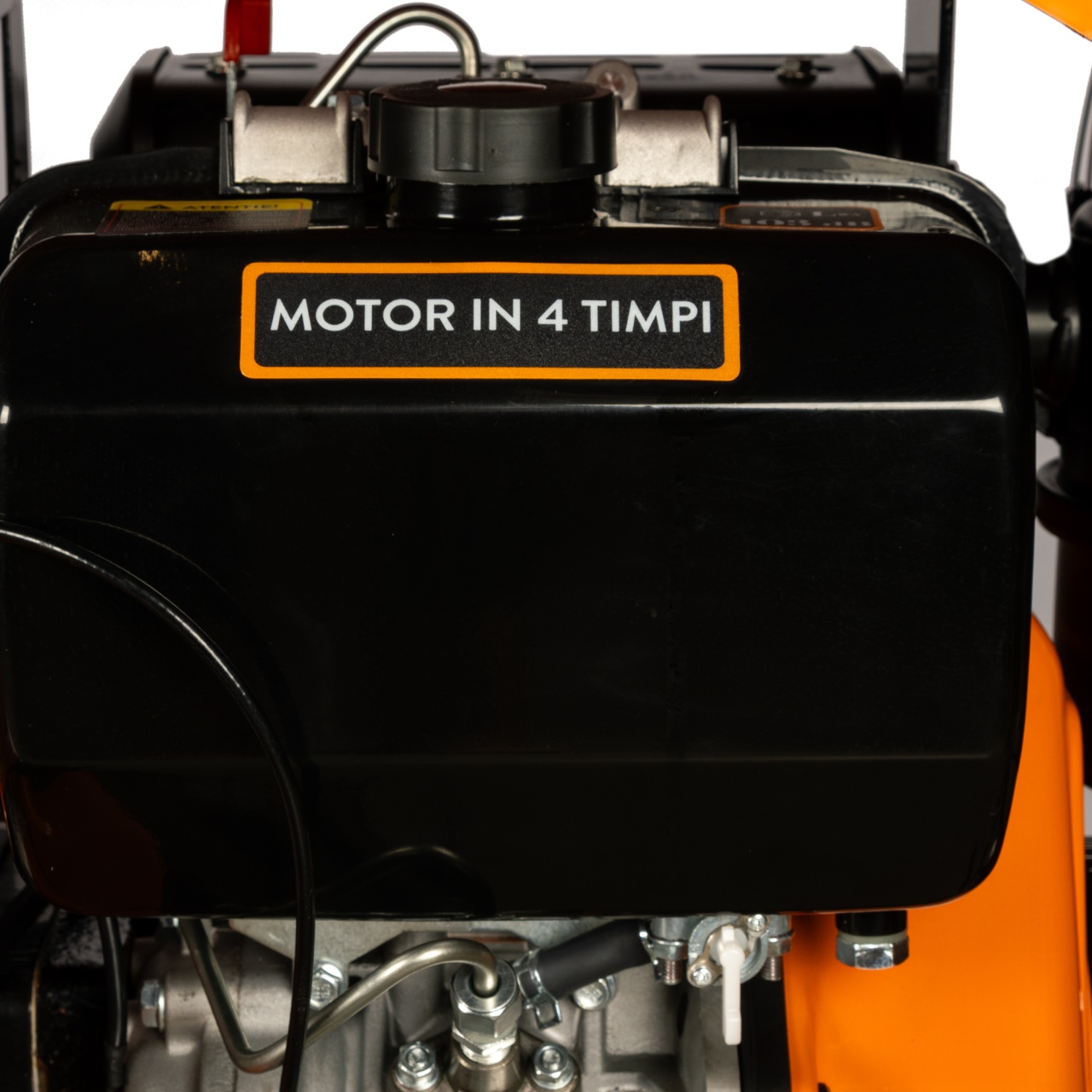

• Engine type: Diesel, 4-stroke, OHV, air-cooled
• Ignition system: Compression ignition

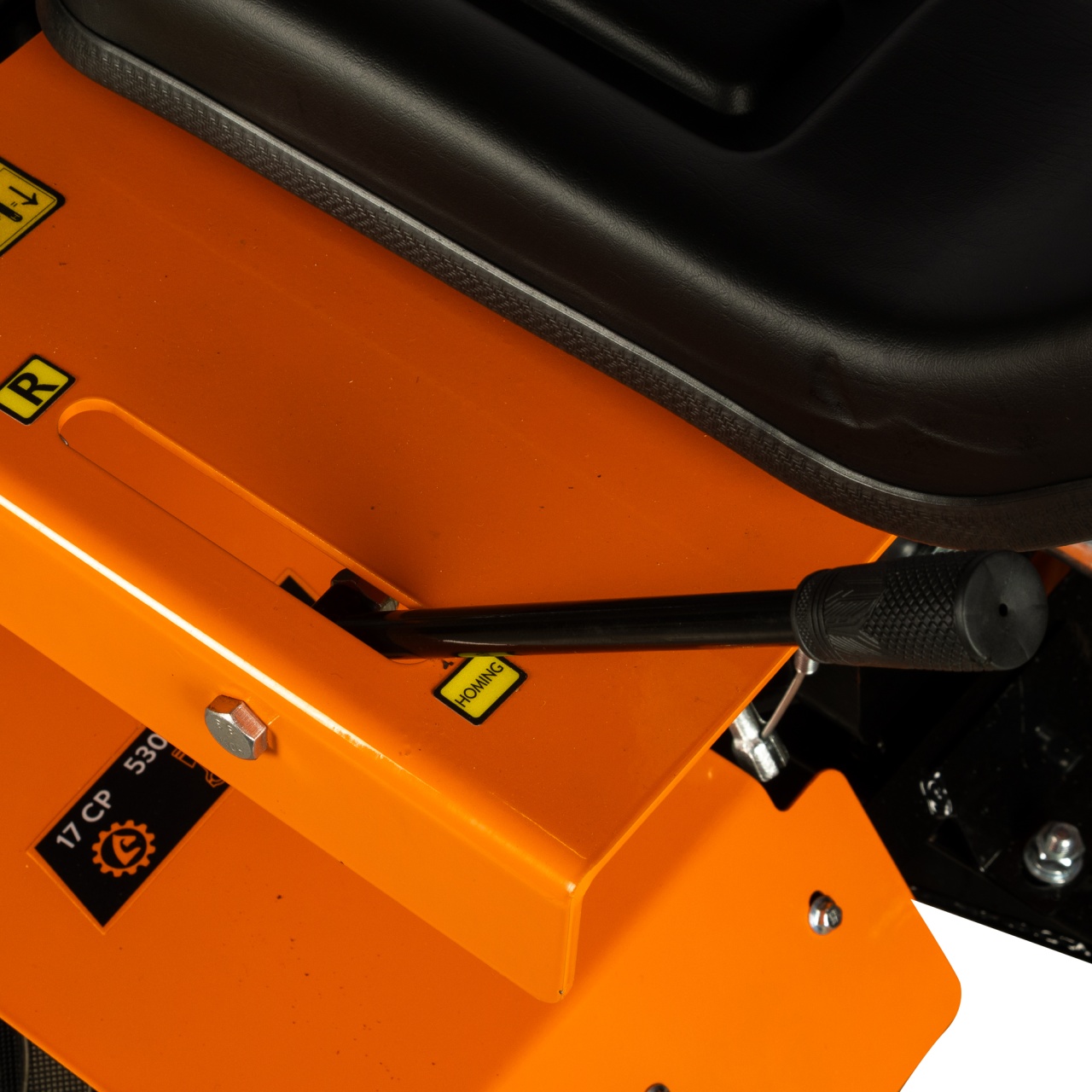

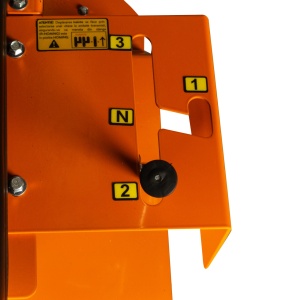

• Transmission: 3 forward gears + 1 reverse

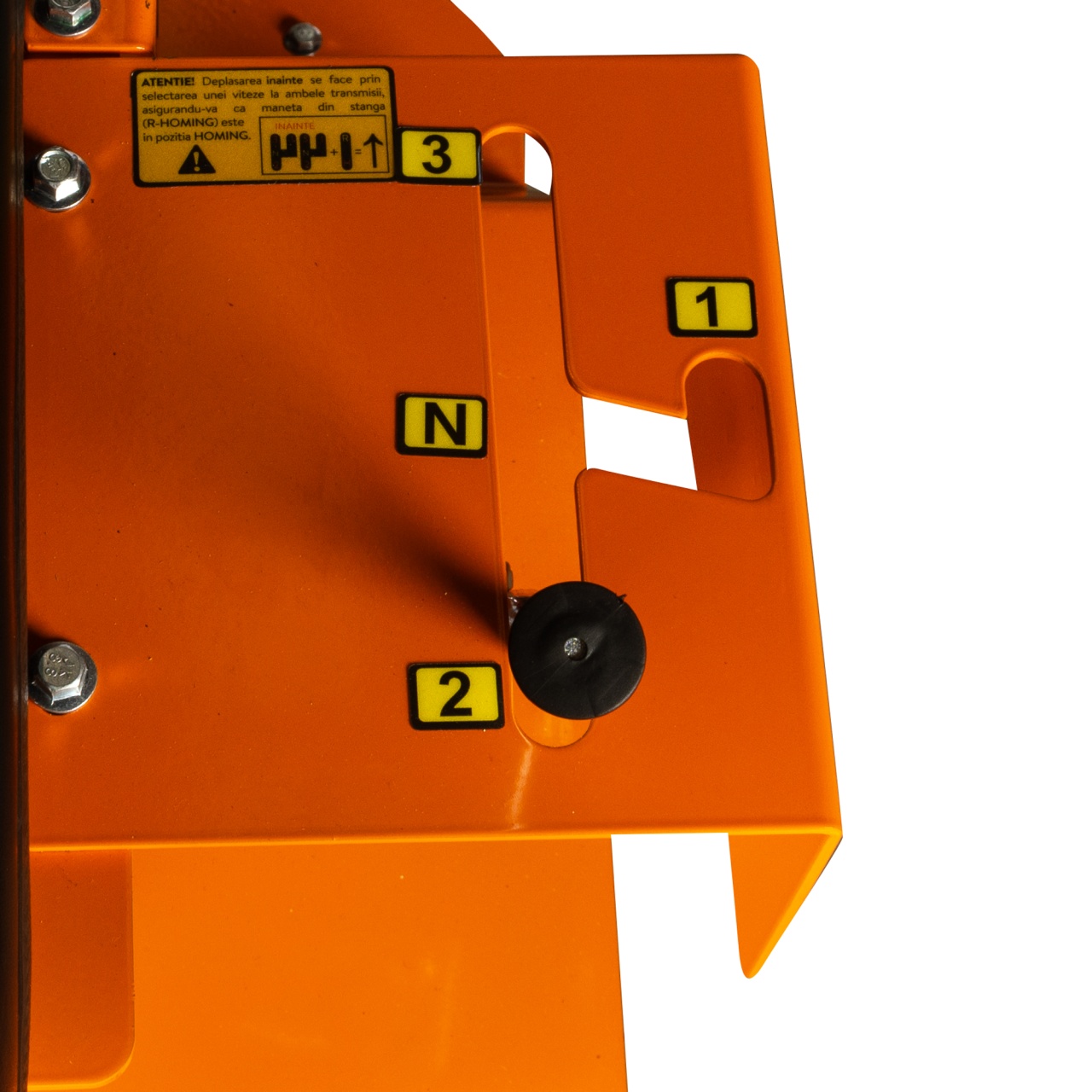

• Gearboxes: 2 independent gearboxes

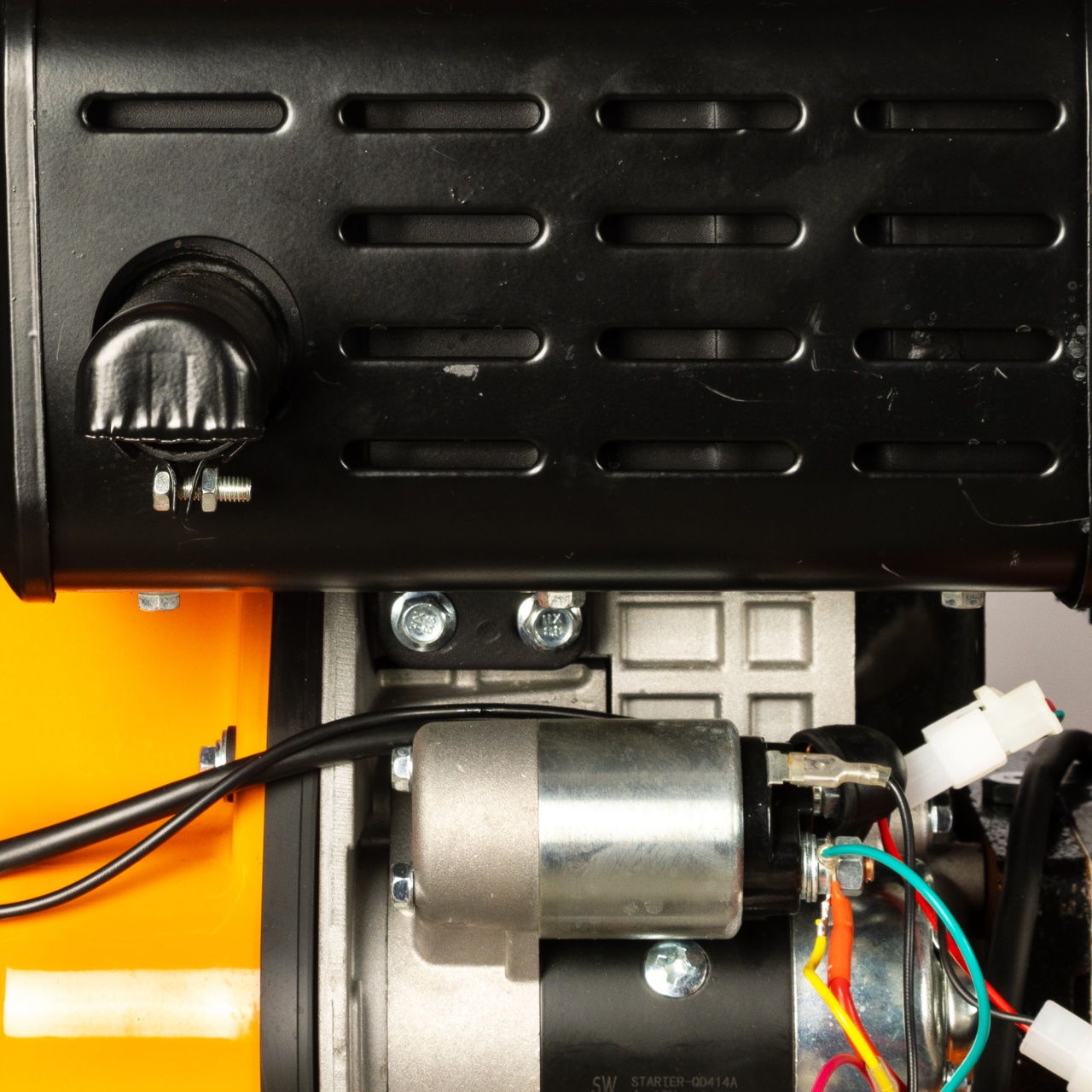

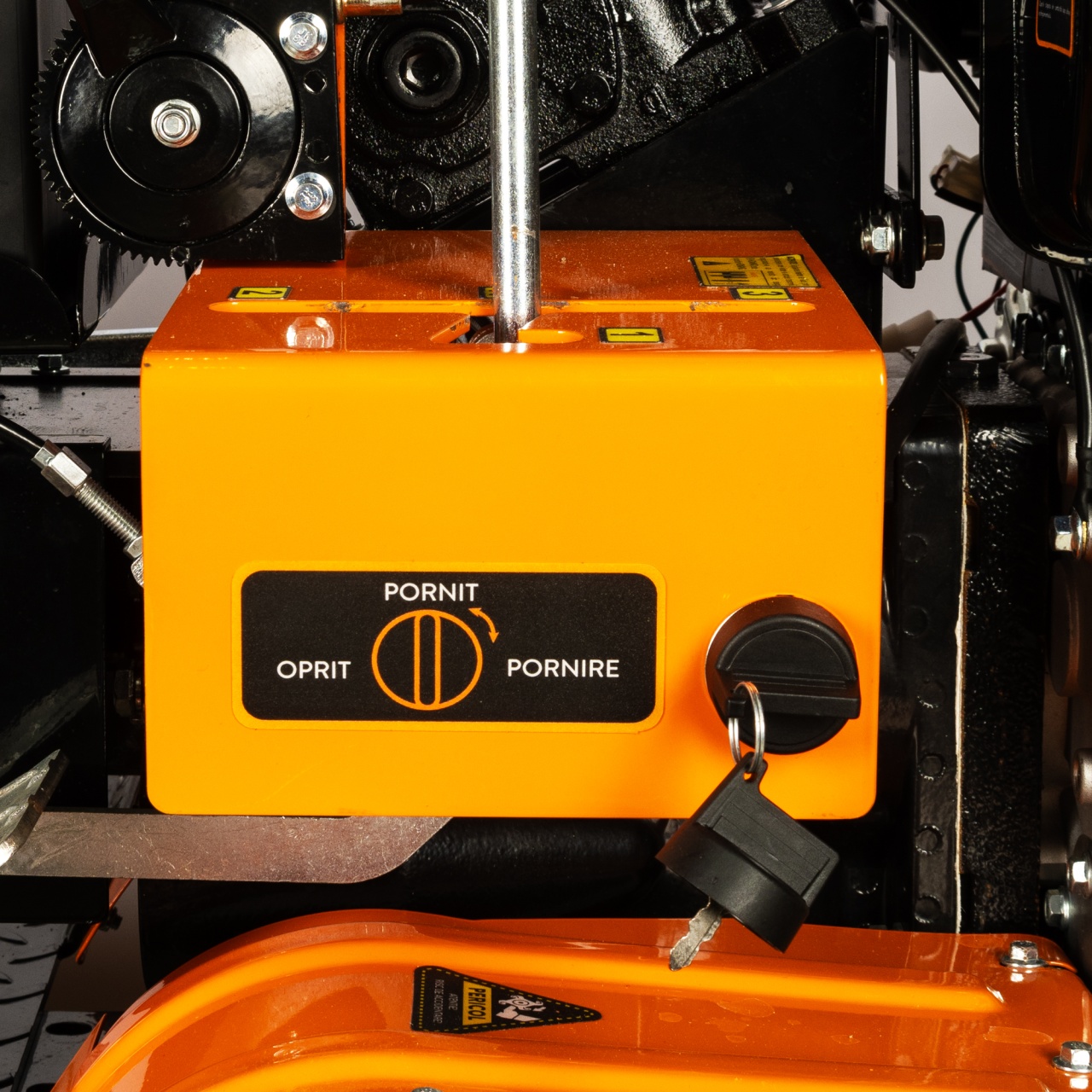

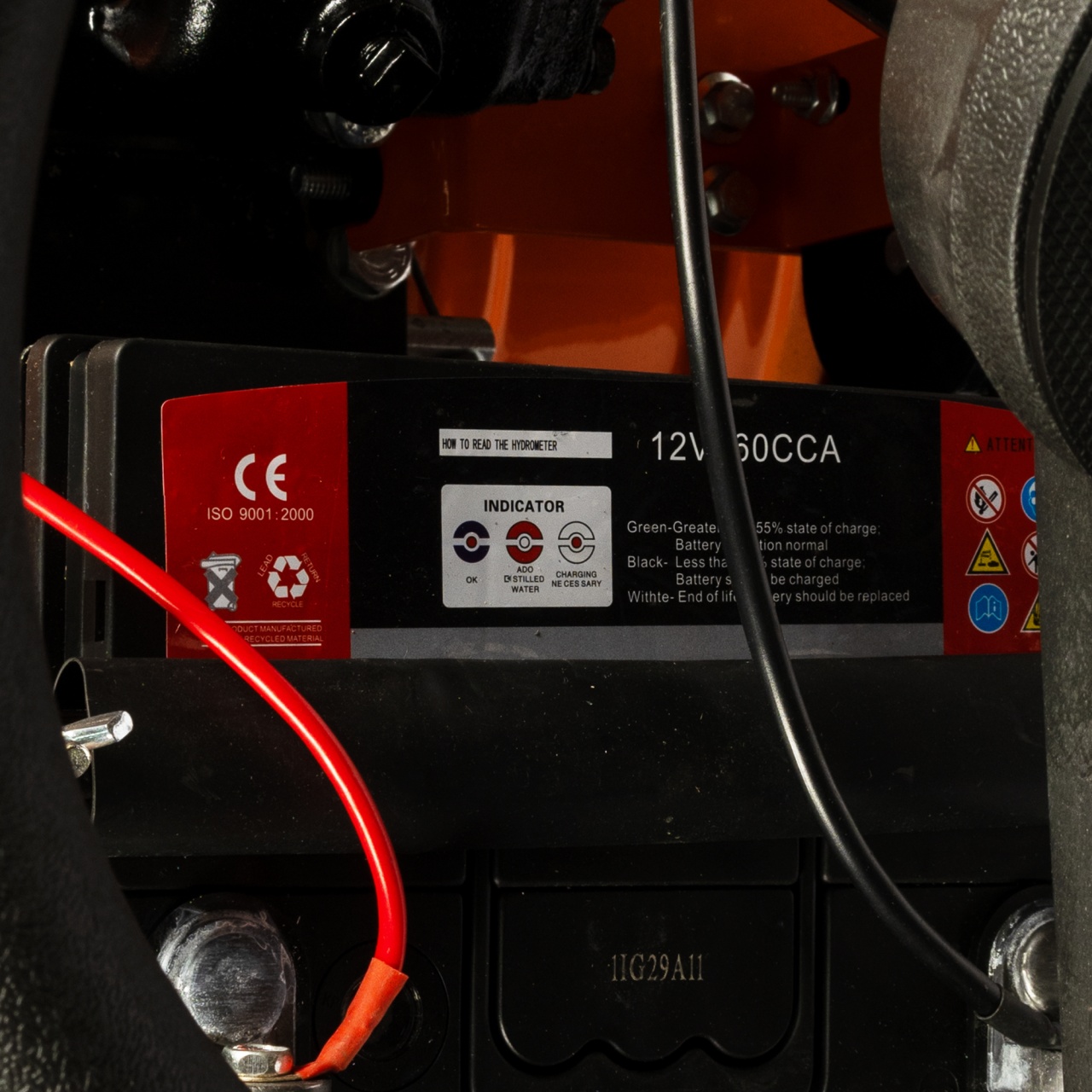

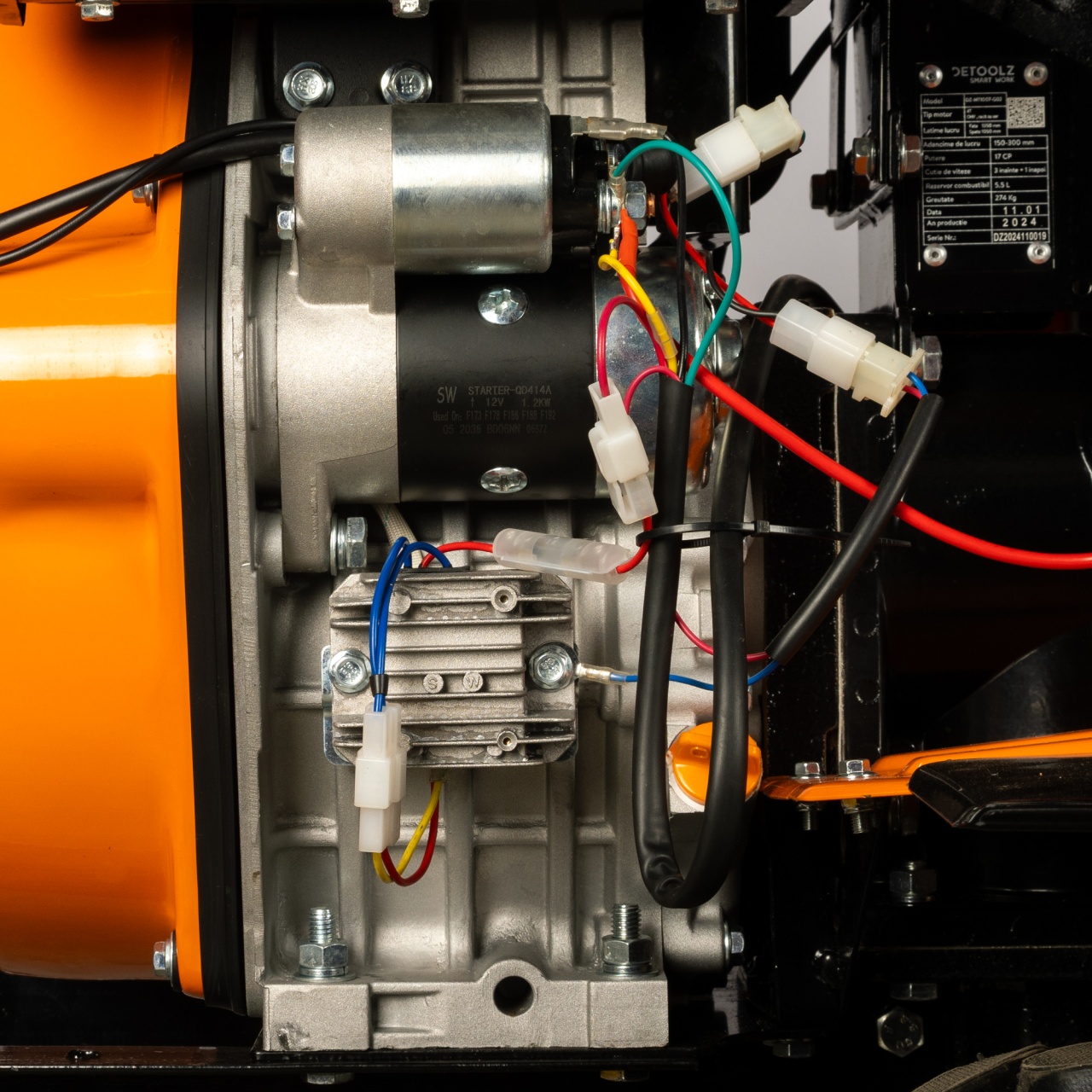

• Starting: Electric (12V, 36Ah) and manual (recoil)
• Fuel tank capacity: 5.5L
• Fuel type: Diesel
• Engine oil capacity: 1.65L (recommended oil SAE 10W-30)
• Transmission oil: T90, capacity 2 x 2.6L
• Dimensions: 157 x 76 x 132 cm
• Net weight: 274 kg
• Gross weight: 342 kg
• Noise level: 103 dB(A)


Features:


✅ Effective for various agricultural tasks:


• Ploughing with a single-furrow, reversible or two-furrow plough
• Soil tillage with a trailed rotary tiller
• Towing a trailer
• Potato harvesting
• Weeding and ridging
• Sowing with a trailed seed drill


✅ Robust construction: High-quality materials for an extended service life.

✅ 4x4 system: Capable of working on rough terrain, including gentle slopes and soft ground.

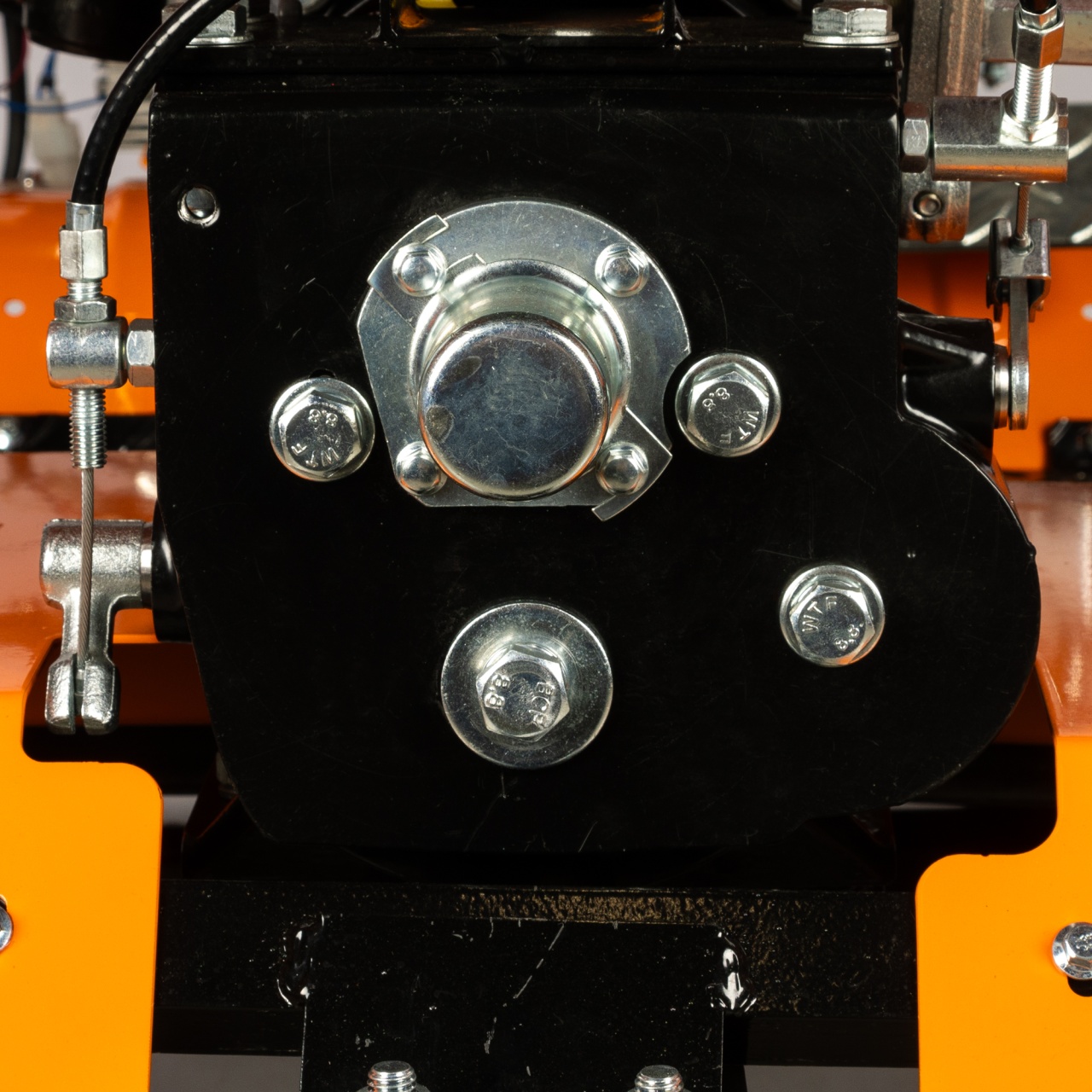

✅ Power take-off (PTO): Allows the attachment of various compatible implements.

✅ High efficiency: Low fuel consumption and easy maintenance.

✅ Optimal safety:

• Recoil protection

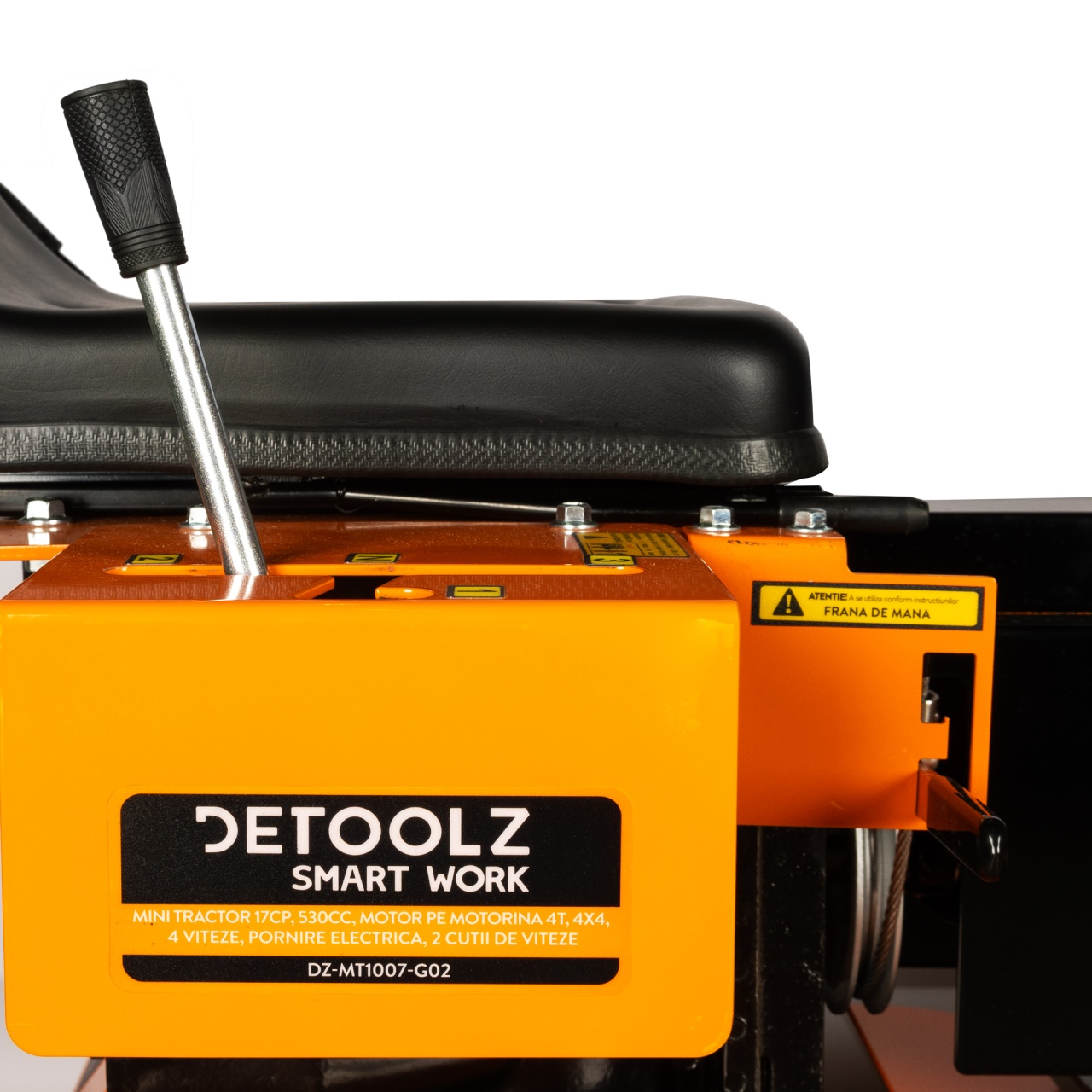

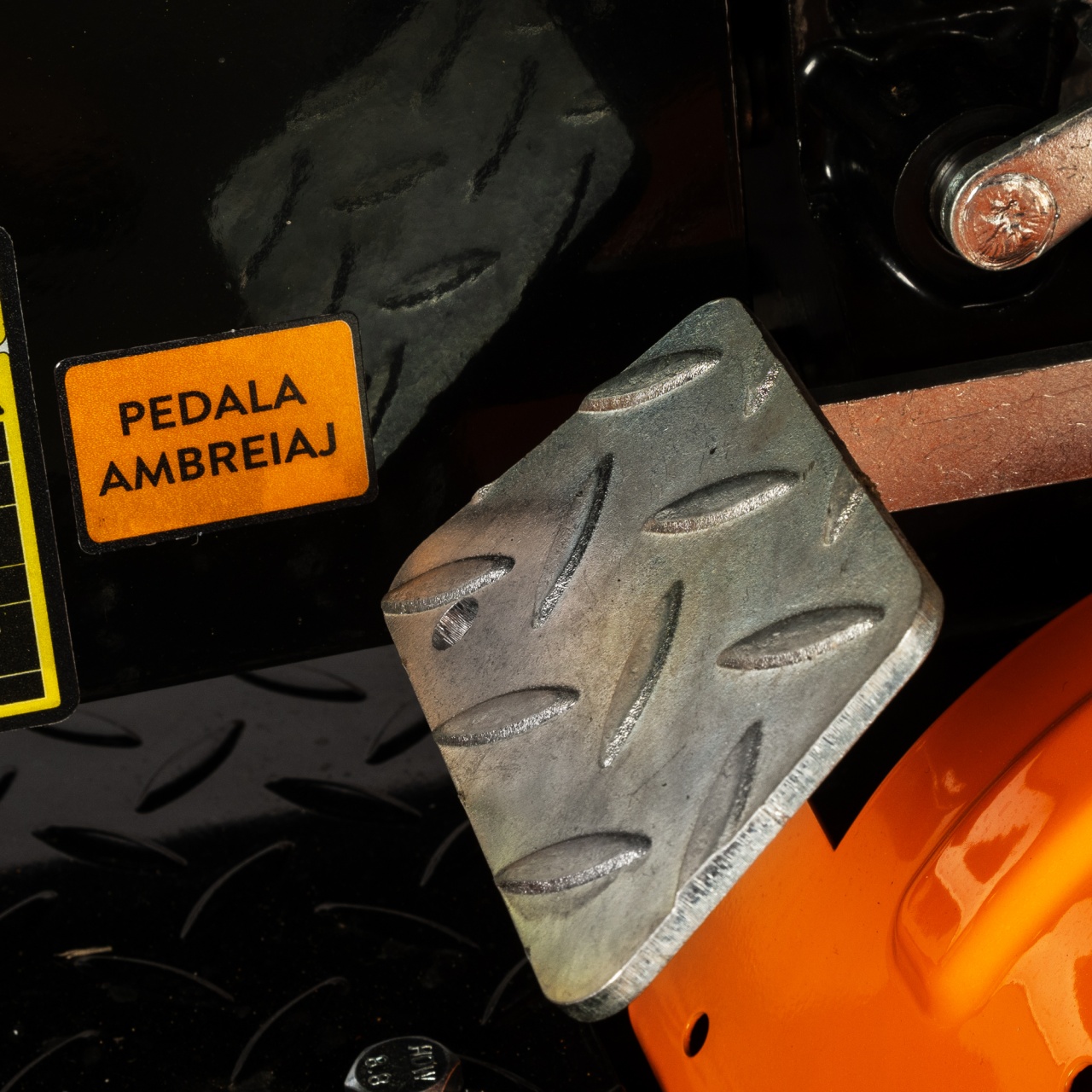

• Wet clutch and integrated handbrake
• Headlights for night work


Package contents:


• DZ-MT1007-G02 mini tractor
• 500-8 wheels (4 pcs.)

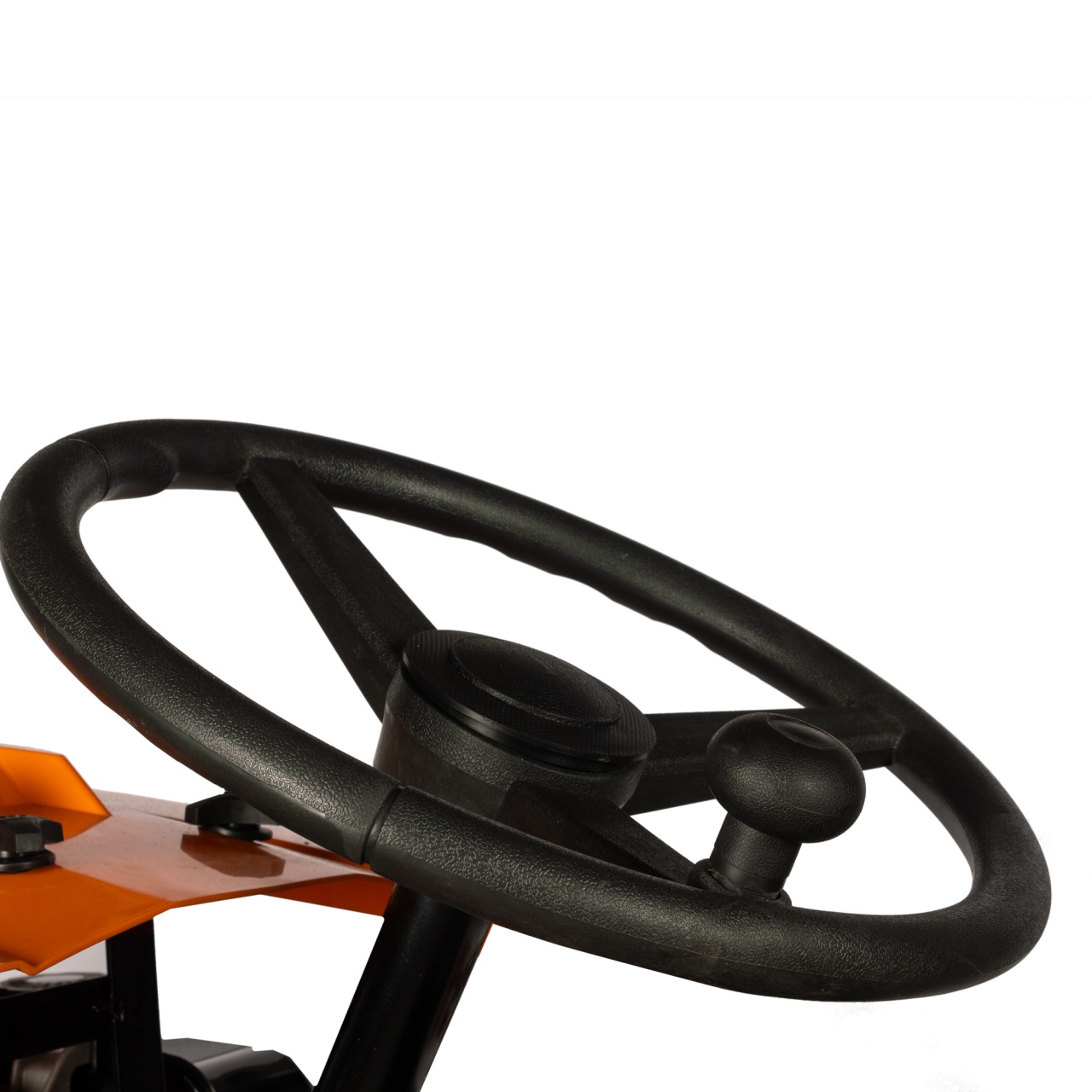

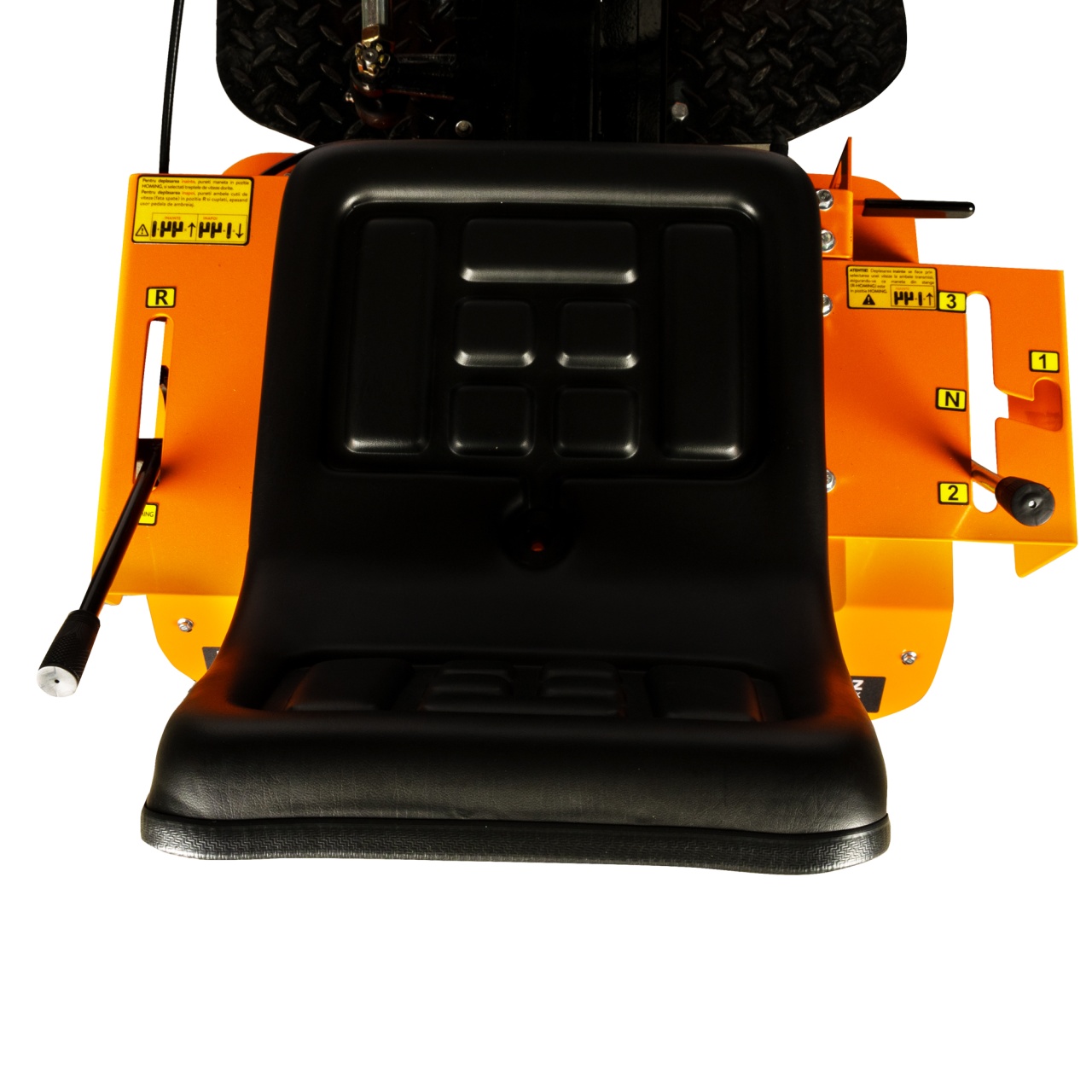

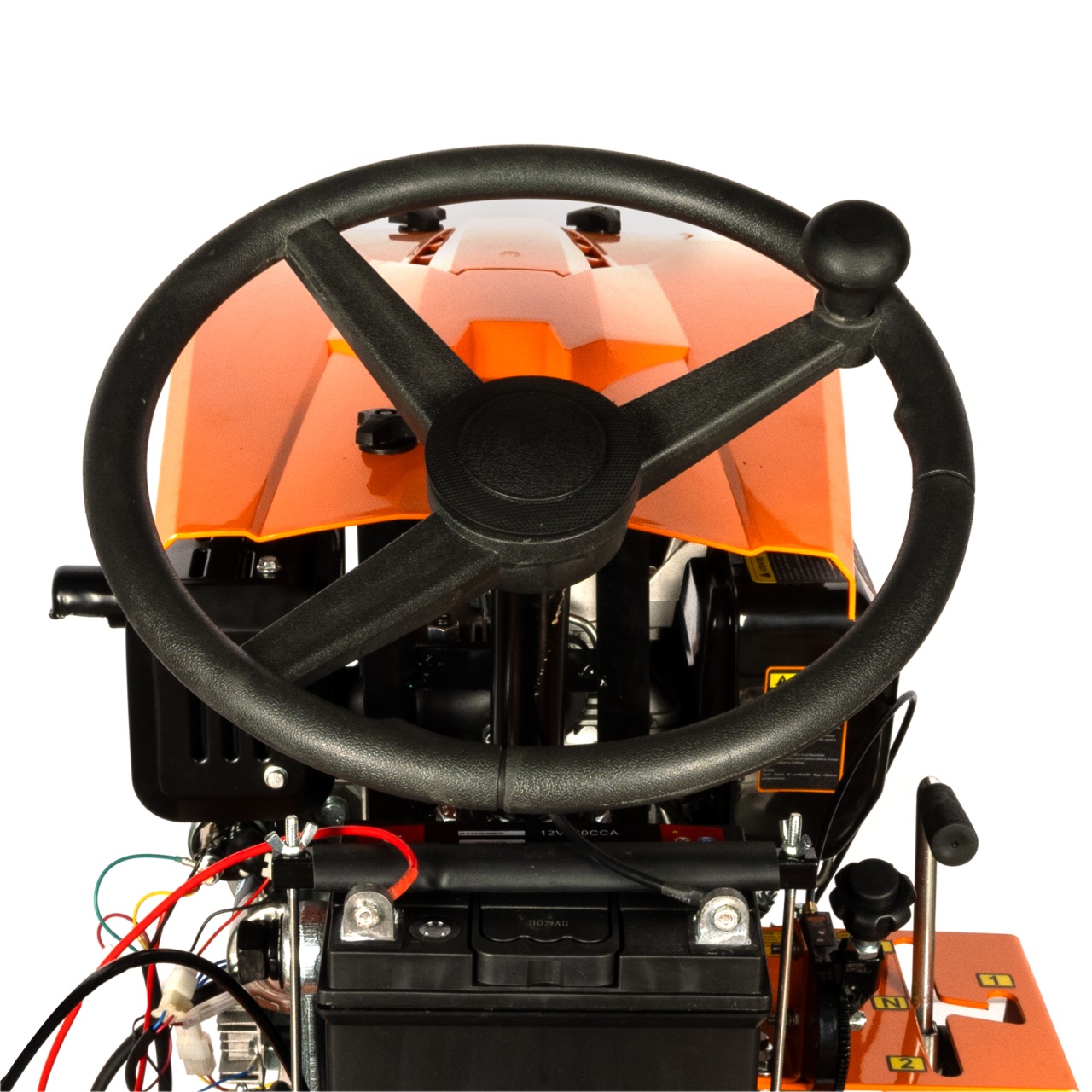

• Seat and steering wheel

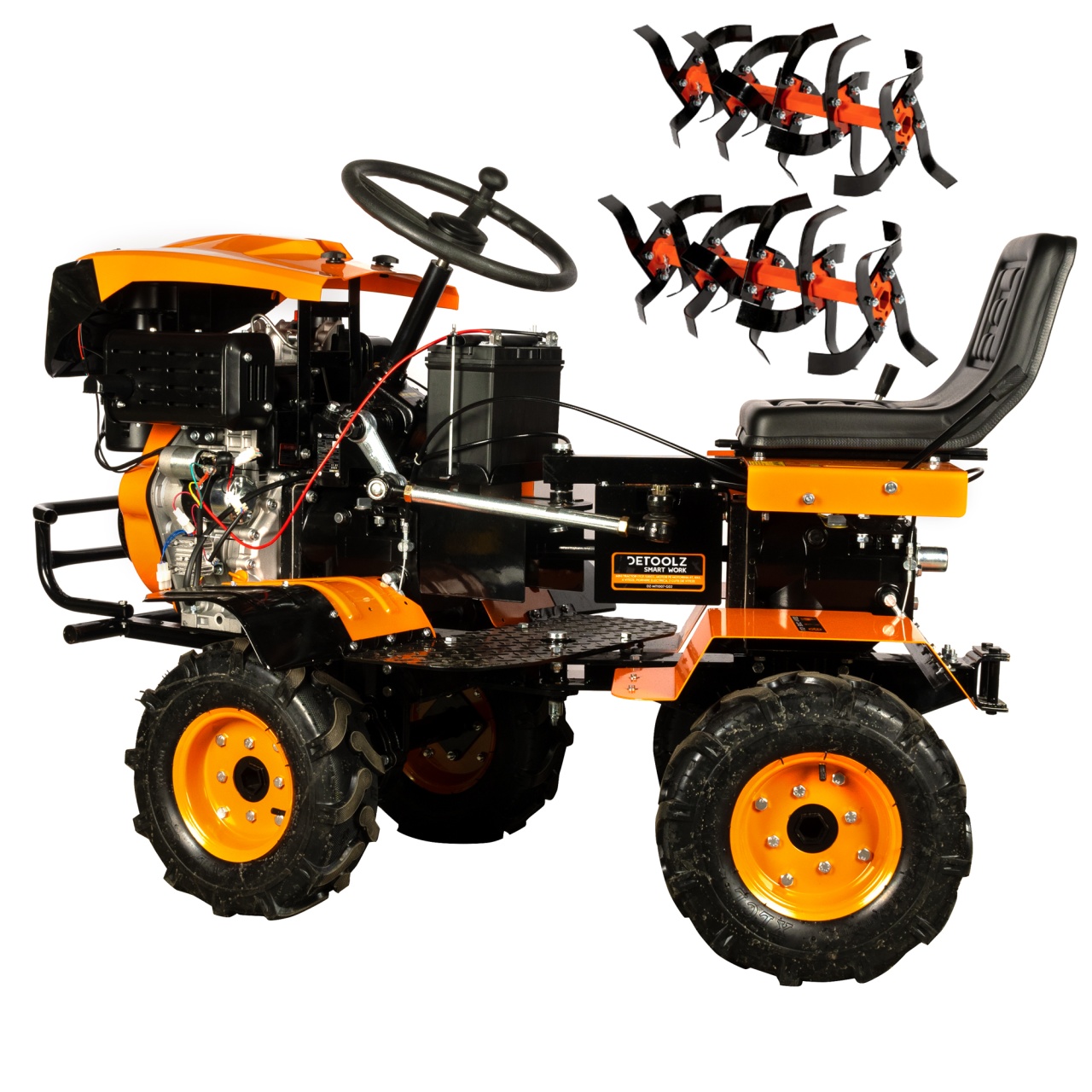

• 32 rear axle tiller blades
• 40 front axle milling blades
• Jack and mounting accessories
• Carrying case
• User and maintenance manual


Recommendations for use:


🔹 Diesel fuel – We recommend using high-quality fuel for maximum efficiency.
🔹 Regular maintenance – Check the engine oil and gearbox oil levels before use.
🔹 Avoid overloading – Use accessories in accordance with technical specifications.
🔹 Observe safety precautions – The tractor must only be operated by trained personnel.



⚠️ Warning! Important instructions and recommendations

❌ Use the equipment for its intended purpose – using it for purposes other than those specified in the manual may pose risks and cause serious injury. Avoid modifications or adaptations not specified by the manufacturer.

⚙️ The equipment is delivered with no oil in the engine or gearbox!
🔧 Before first use, you must fill the equipment with oil in accordance with the specifications in the user manual. Failure to follow this instruction may result in engine failure and void the warranty.

📖 For your safety, please consult the user manual before operating the equipment!
