The unpressurised solar water heating panel is a simple and more cost-effective system for heating water using solar energy. This type of system does not use pressure to transfer hot water, but relies on the thermosiphon principle, namely that hot water has a lower density than cold water and will therefore rise to the storage tank due to temperature differences.

The unpressurised solar water heating panel has the advantage of not requiring a pump for fluid circulation and therefore incurs no associated running costs. It is also a simple, reliable and durable system, with fewer mechanical components that might require maintenance. The advantages of the unpressurised solar panel system are:

  • They are easy to install;
  • They require no maintenance;
  • They do not use electricity;
  • They have very good efficiency;
  • They are the most economical solar systems for domestic hot water production;
  • The investment pays for itself in a short time;
  • They are made from high-quality materials;
  • They do not pollute the environment

SKU
DZ-ET1002-S001-G01
Categories
Brand
Brand
Detoolz
Water tank capacity
150L
Absorption coefficient
0.94~0.96%
Emission coefficient
0.04~0.06%
Outer tube diameter
58 mm
Inner tube diameter
47 mm
Connection dimensions
Air vent valve - 1/2" Float tank - 3/4" Water connection diameter - 3/4" Water outlet diameter - 3/4"
Crude weight
60.5 kg
Net weight
58.2 kg
Tube thickness
1.6 mm
Tube length
1800 mm
Tube table
1.95–2 kg
Tube material
Vitate / Borosilicate glass
Number of tubes
15
Maximum water supply pressure
6 bar
Resistant to
Hailstones up to 30 mm, Winds of up to 200 km/h
Type of solar panel
Unpressurised
Vacuum
P?5×10⁻⁴ Pa

Do you own or have used the product?
Post review
Detoolz

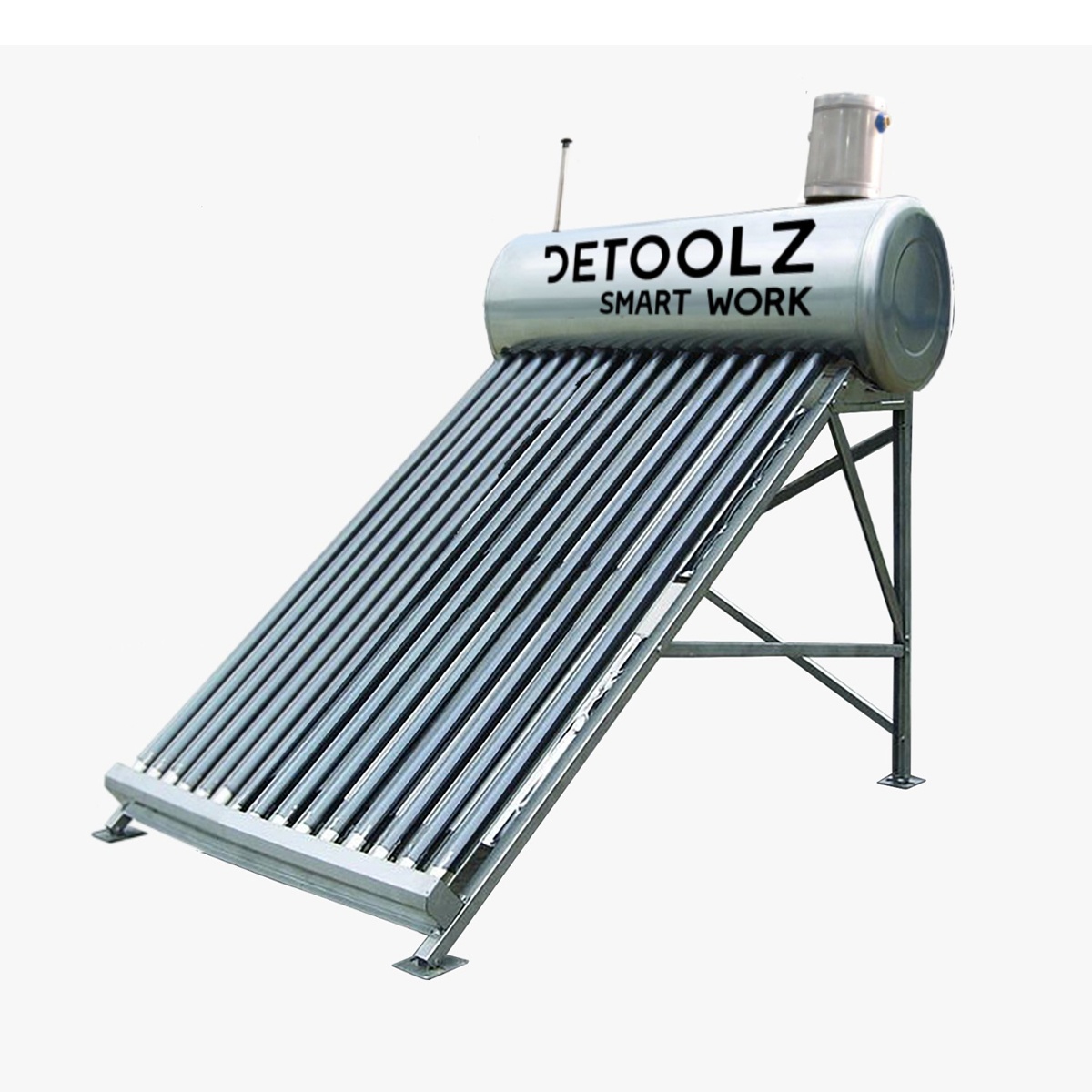

Detoolz unpressurised solar panel, 150-litre capacity, stainless steel, 15 tubes

In stock at supplier
DZ-ET1002-S001-G01
Number of tubes
15
Water tank capacity
150L
Maximum water supply pressure
6 bar
RON 1,705.51
Preț cu cod MF15: 1.449,68 lei (-15%)

La achiziționarea acestui produs primești 1705 puncte.

Dată estimată de livrare: 18-08-26 Comenzile plasate duminică vor începe livrarea luni.
