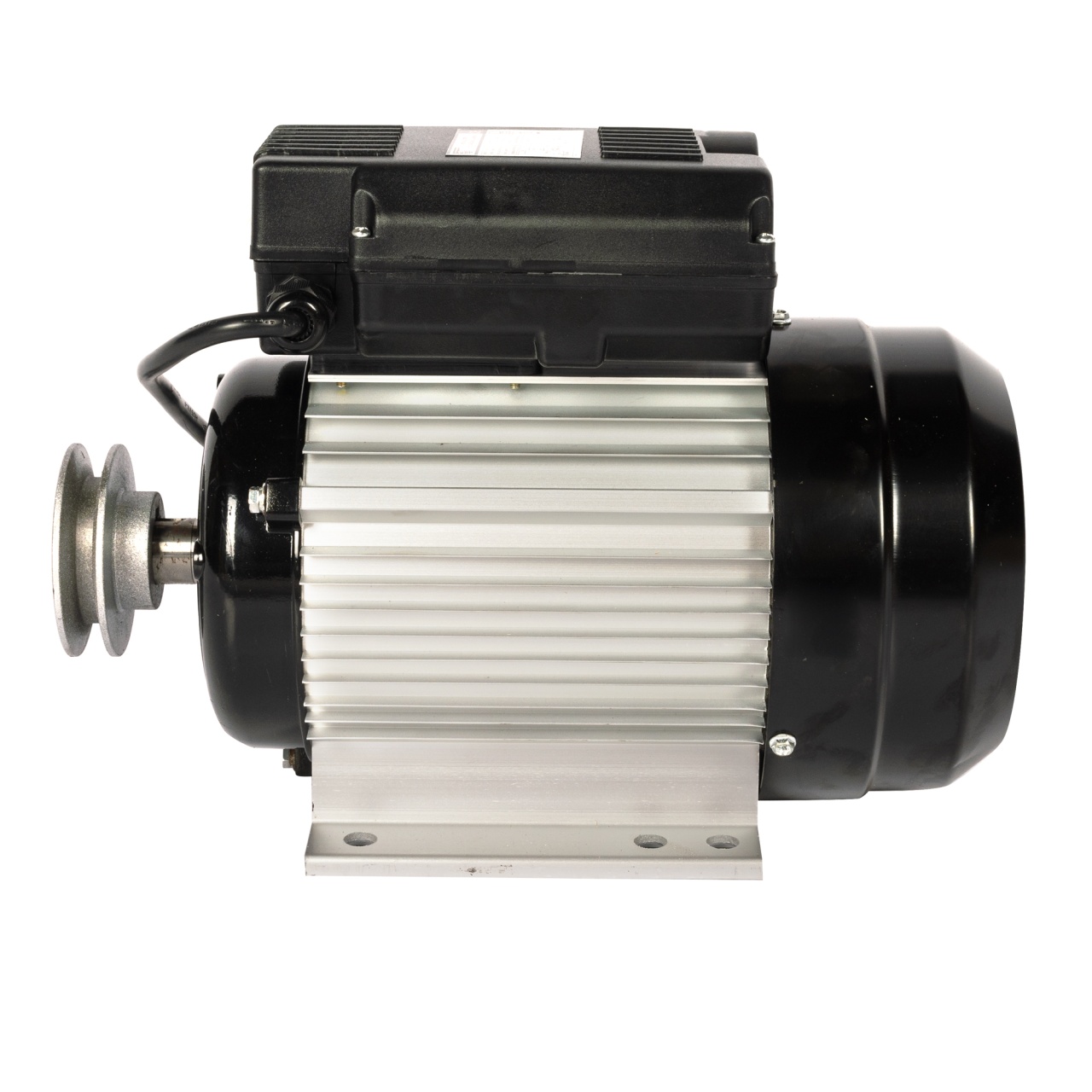

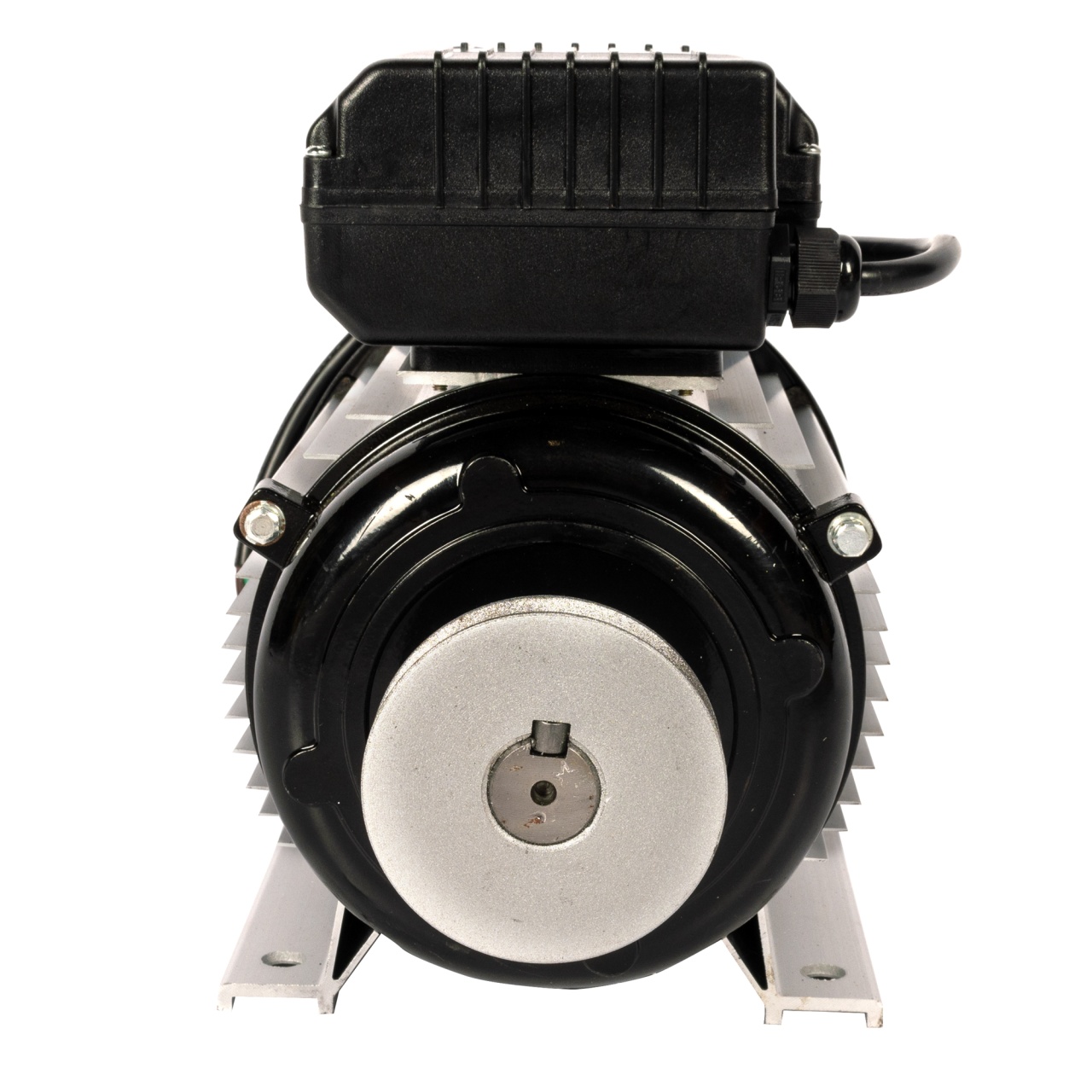

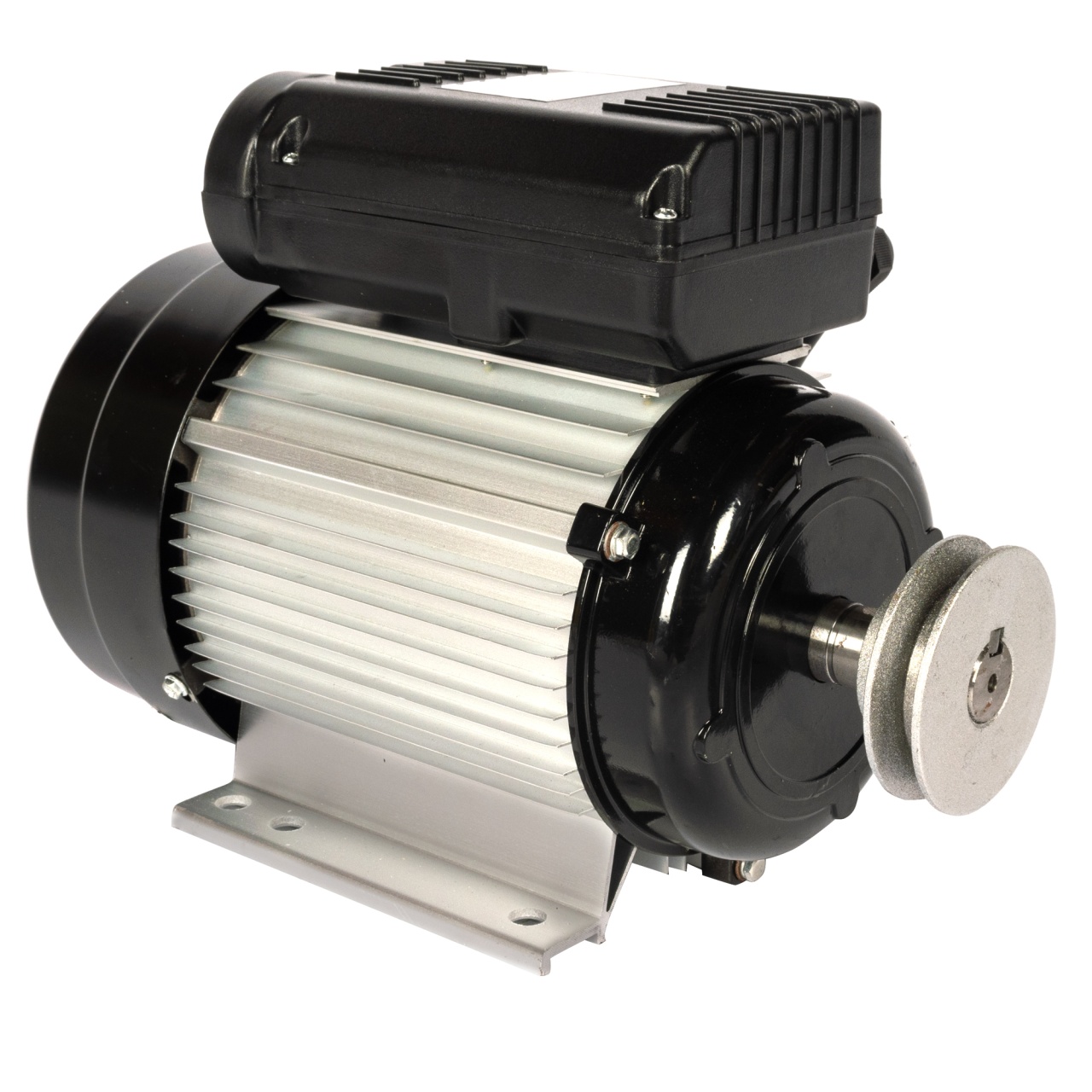

Electric motor 2800RPM, 2.2KW, with aluminium casing, the Little Farmer GF-1544 is never used alone. An electric motor must be integrated into a system that requires mechanical power. The standard direction of rotation for single-phase electric motors is counter-clockwise.
The field of use of these single-phase motors is the drive of various electrical appliances for household or similar use (EN 60335-1) such as: woodworking machines, material handling machines, liquid pumps, ventilation systems, compressors, blowers, vacuum pumps, etc.
Before starting the engine, carry out a check on:
- the motor supply voltage corresponds to the voltage/frequency stated on the label;
- the mounting position of the motor allows good ventilation, easy access to the electrical connection and control elements;
- the connections in the connection box have been tightly tightened and the cover is tightly fitted with undamaged gasket;
- check the rotation of the hand motor; check the presence of the fuse;

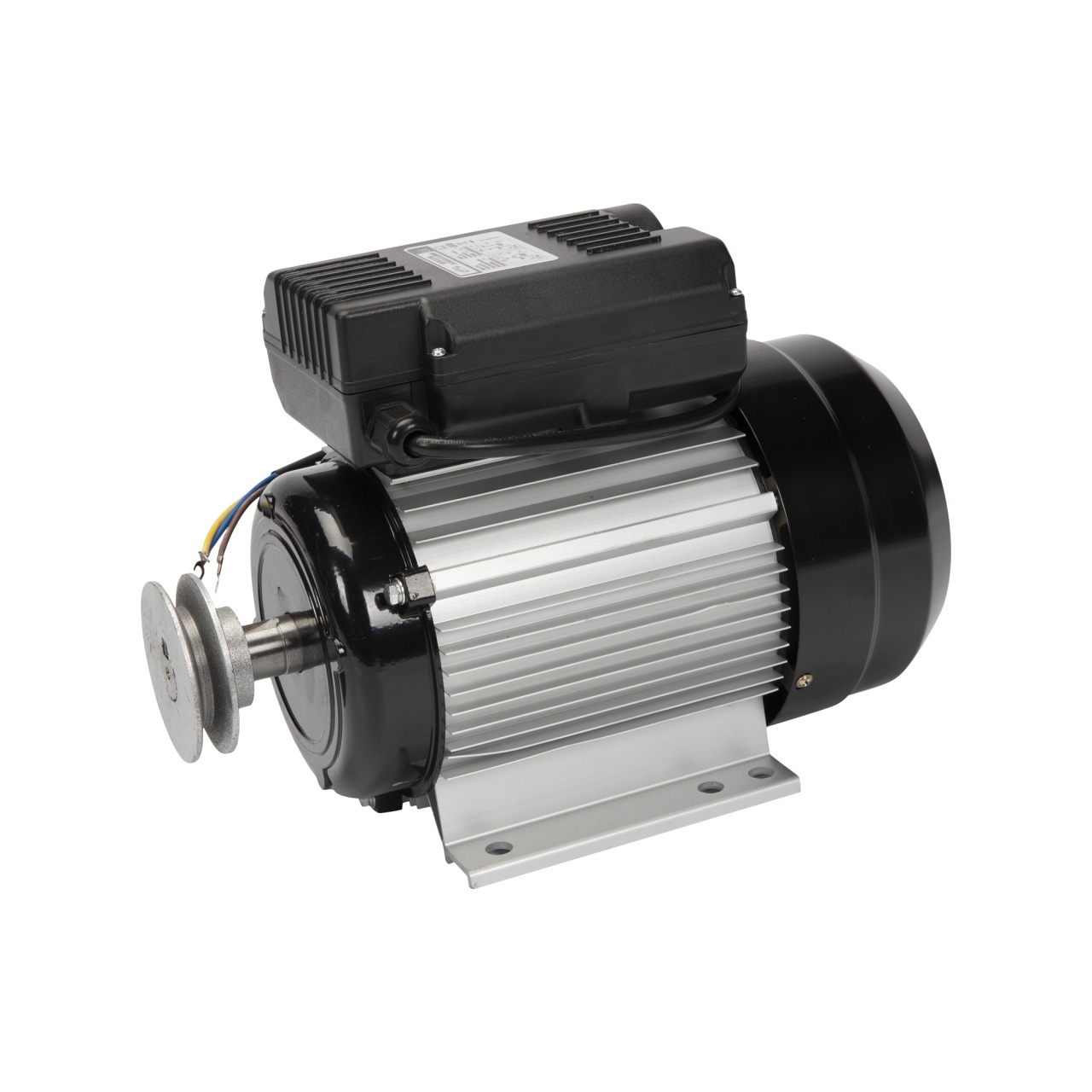

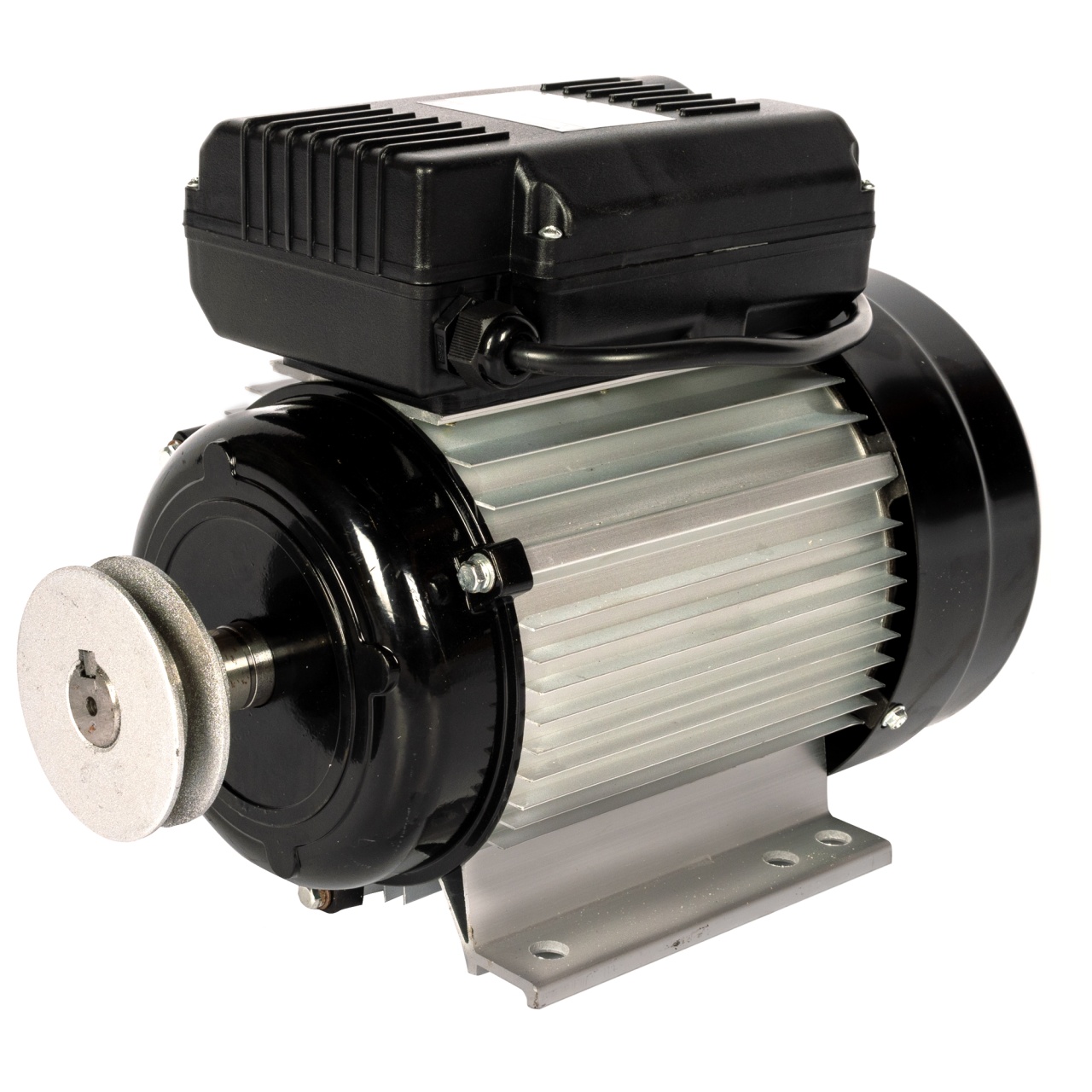

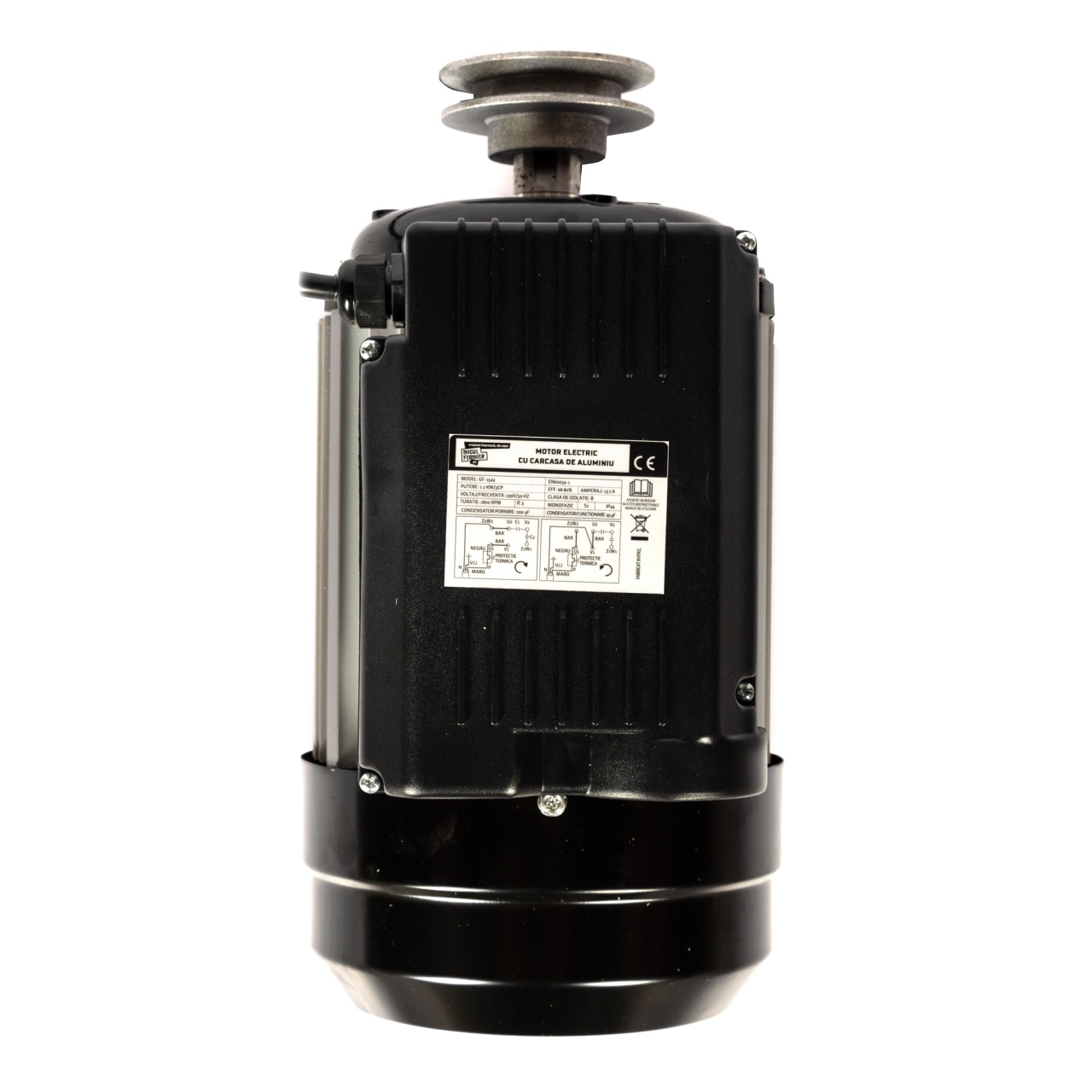

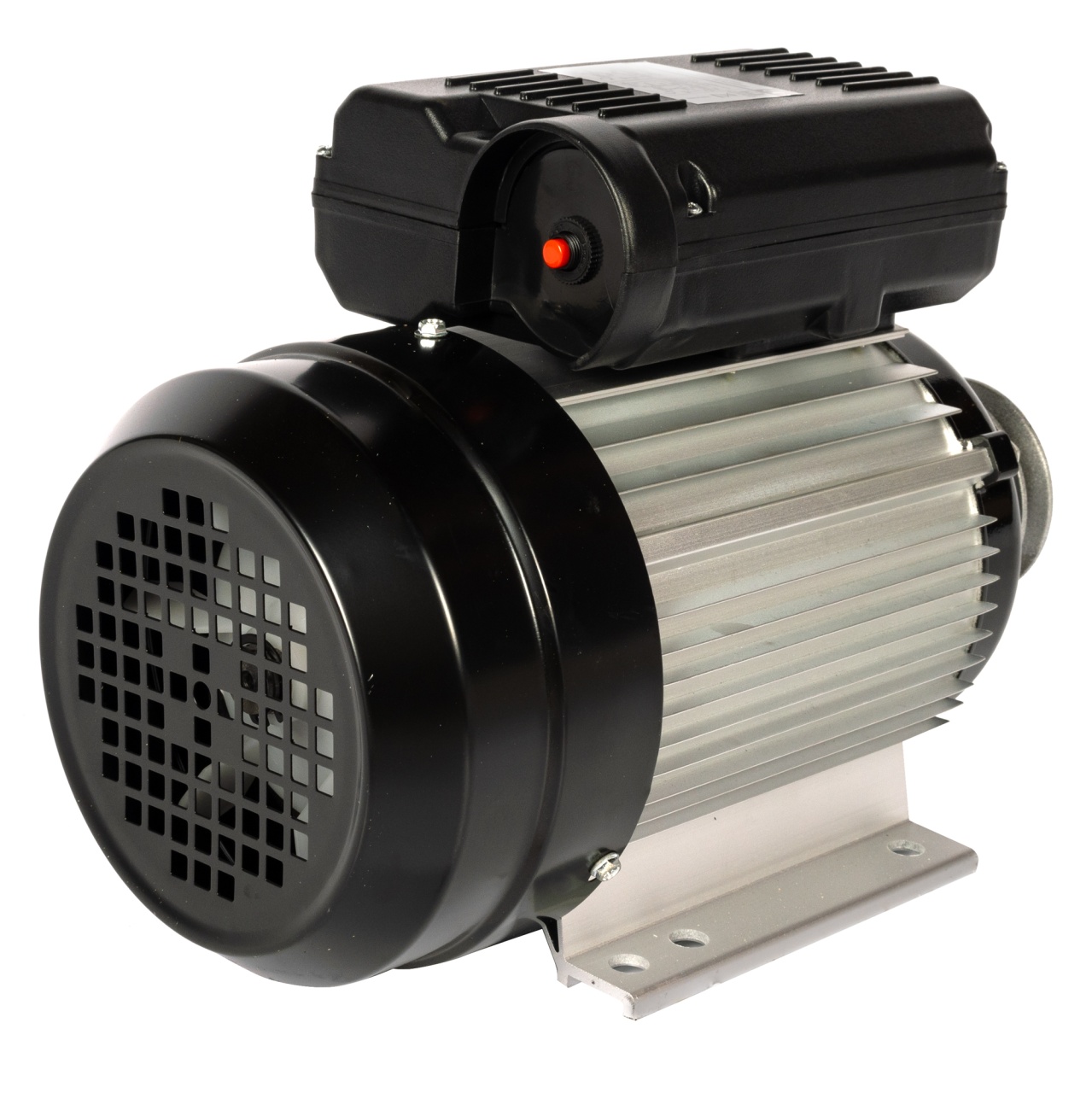

Electric motor 2800RPM, 2.2KW, with aluminium casing, Small Farmer GF-1544 is composed of:

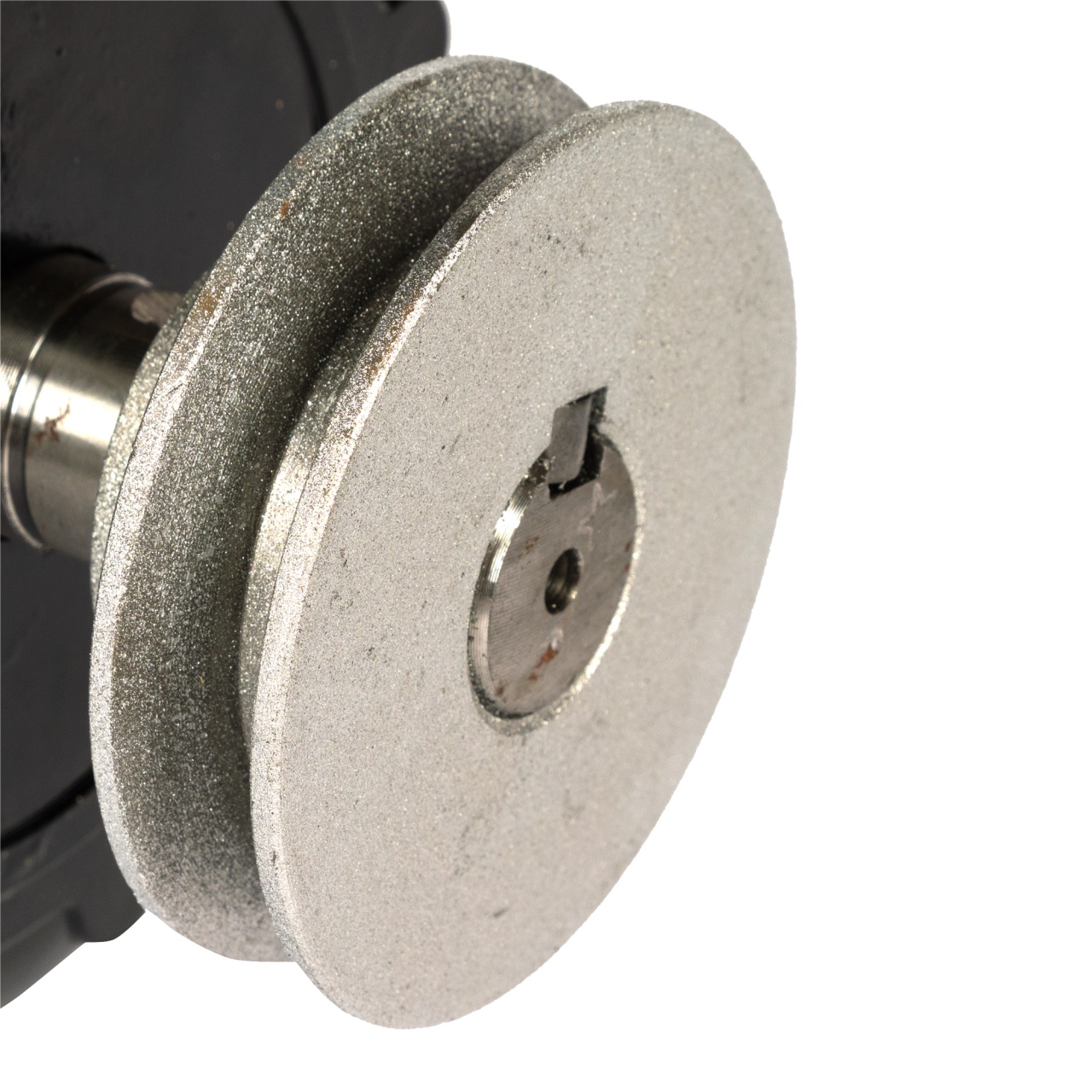

-Single/double pulley;
- Output shaft;
-Front cut;
-Case connections;
-Aluminium housing;

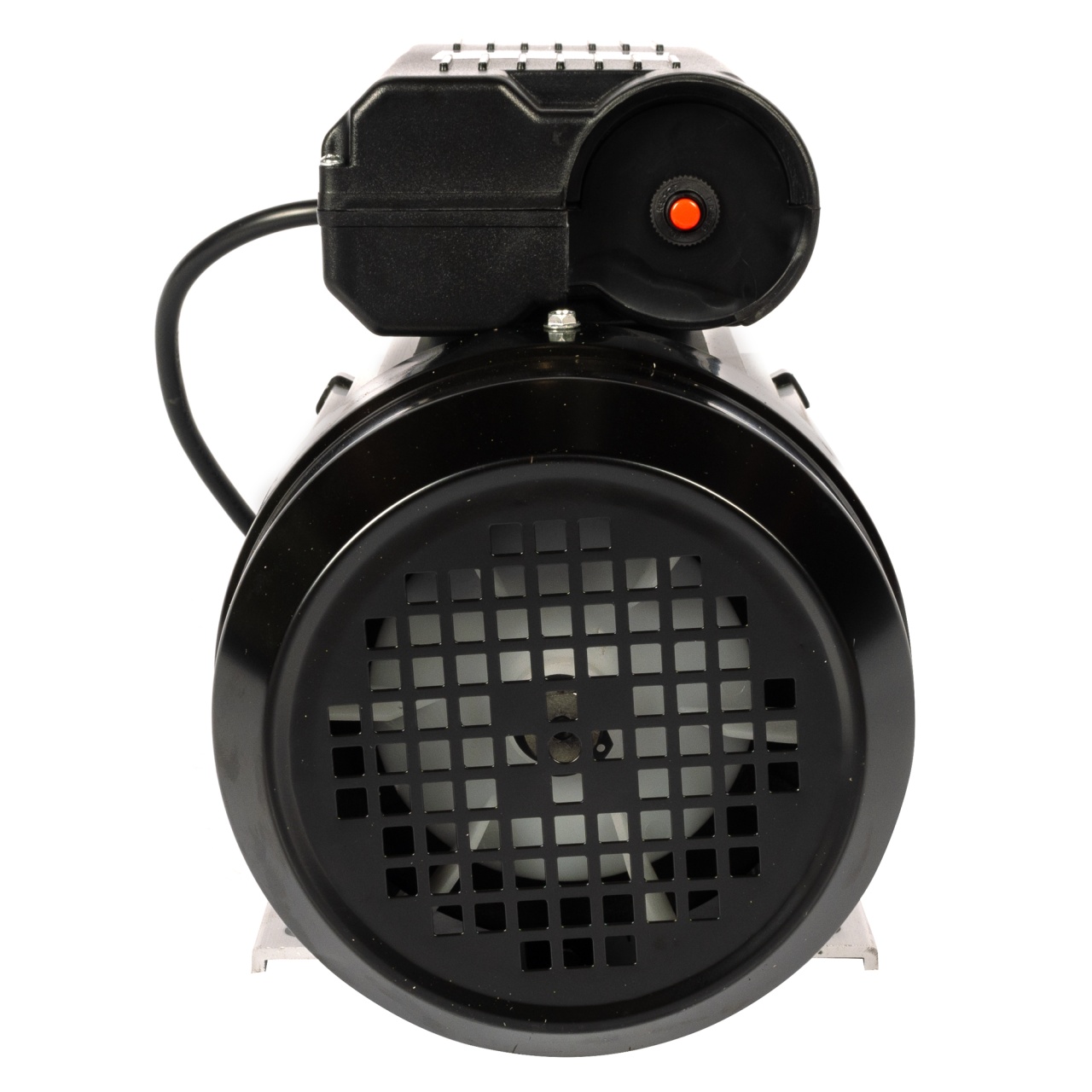

-Fan protection;
-Fastening cover;
-Supply cable.
SKU
GF-1544
Categories
Brand
Amperage
13.7A
Brand
Little Farmer
Operating capacitor
45 uF
Starting capacitor
200 uF
Outer pulley diameter
80 mm
Inner pulley diameter
16 mm
Axle diameter
24 mm
Dimensions 2
38, 5x20x28 cm
Distance between holes in the sole
10 cm
Frequency
50 Hz
Degree of protection
IP44
Weight
18kg
Sole length
13 cm
Material
Aluminium housing / Plastic fan with steel guard
Noise level
Reduced
PCS/UM
1

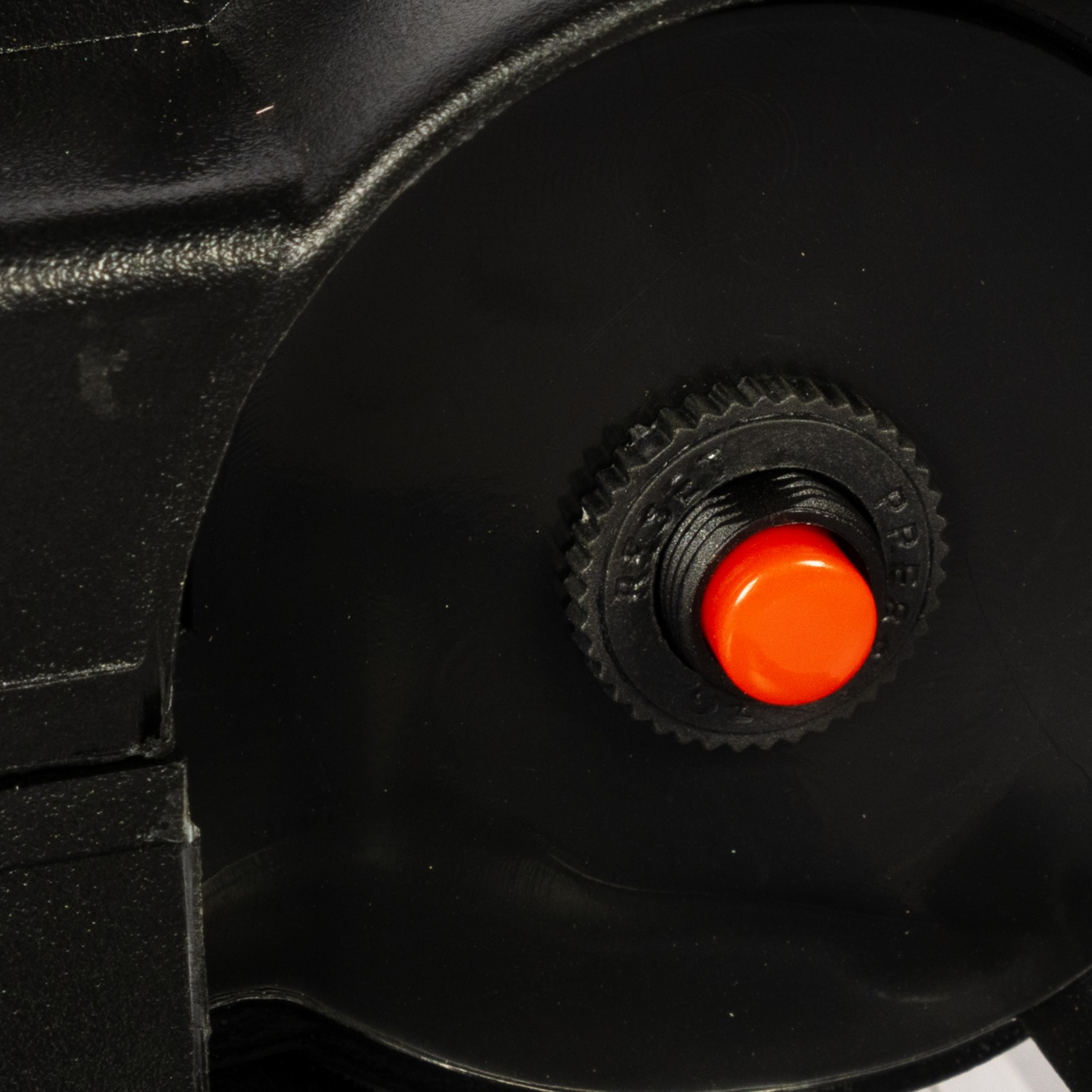

Overload protection
Yes
Power
2.2 kW
Min. revolutions
2800 rpm
Fastening system
M10
Voltage
230 V
Product type
Electric motor
One box
1
PCS/box, bag
1
