Submersible pump 1,3kW 30/60m 3000l/h 1" FP, Micul Fermier GF-0744-S001-G02 is an equipment used to transport water from wells, lakes, basins, fountains in order to supply various consumers. In terms of construction the pump has three main components: motor, pumping unit and casing.

How to use submersible water pump Submersible pump 1,3kW 30/60m 3000l/h 1" FP, Small Farmer GF-0744-S001-G02
The submersible pump 1,3kW 30/60m 3000l/h 1" FP, Micul Fermier GF-0744-S001-G02 is a submersible pump for wells with a minimum diameter of 4 inches. It is recommended for supplying water to various consumers: domestic, civil, gardening or irrigation use and is suitable for pumping clean water from wells, wells for supplying water to houses and villas, agricultural use and drip irrigation.

The main feature of a submersible pump is the maximum discharge head as they only work when immersed in the fluid to be pumped. If you want to buy a submersible pump, you should consider in particular the pumping head (how many metres you want the pump to "lift") and the required water flow rate.It is recommended to choose a submersible pump that is slightly more powerful than the calculations show, so that it does not have to operate at maximum load.

Caution:
- Working fluids must be clean, non-explosive, low viscosity, free of solid impurities or long-fibre.
- The maximum sand content in the water must not exceed 150g/m3 . A high sand concentration reduces pump life and increases the danger of pump blockage

Customer benefits:
- easy to install
- easy to manoeuvre
- light weight

Product advantages:
- low energy consumption;
- light weight and easy to use.

Winding: Copper
Motor characteristics: oil bath motor and pressure compensating diaphragm
Pump components: Thermoplastic
Material: Components are non-toxic and non-polluting
Seal: Ceramic protected against sand penetration with rubber o-ring

SKU
GF-0744-S001-G02
Categories
Suction depth
30 m
Winding
Copper
Brand
Little Farmer
Leak tightness class
IP68
Insulation class
B
Contains floating
No
Debit
1.5 m3/h
Maximum flow
3 mc/h
Pump diameter
100 mm
Connection diameter
32 mm (1 1/4")
Maximum foreign body size
1 mm
Dimensions 2
71.50X 10.5X 19
Frequency Hz
50 Hz
Gross weight
12.9 kg
Net weight
12.3 kg
Pumping head
60 m
Power cable length (m)
15 m
Winding material
Copper
Rotor material
Stainless steel
Minimum water level for operation
0.5 m
Number of items per box
1 piece

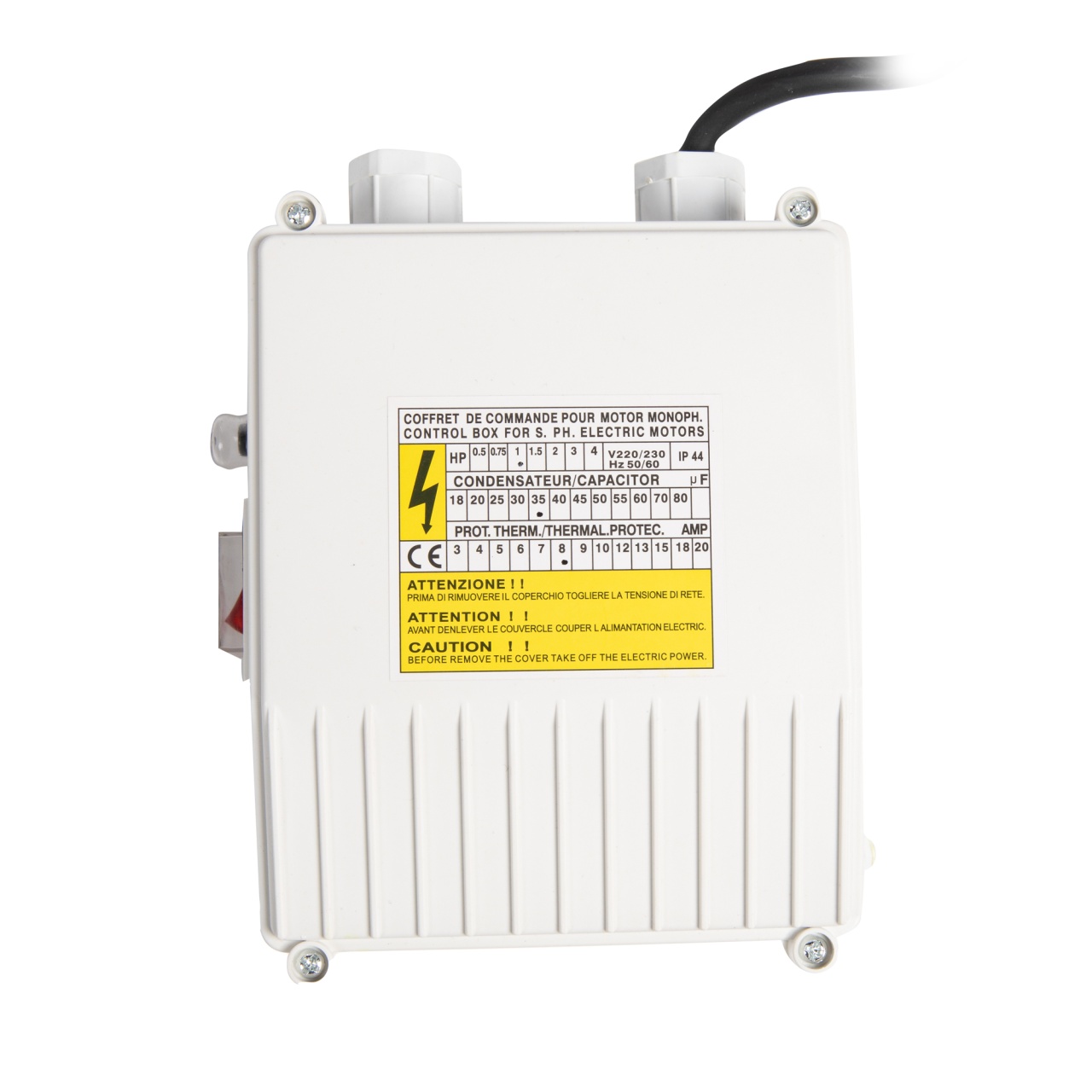

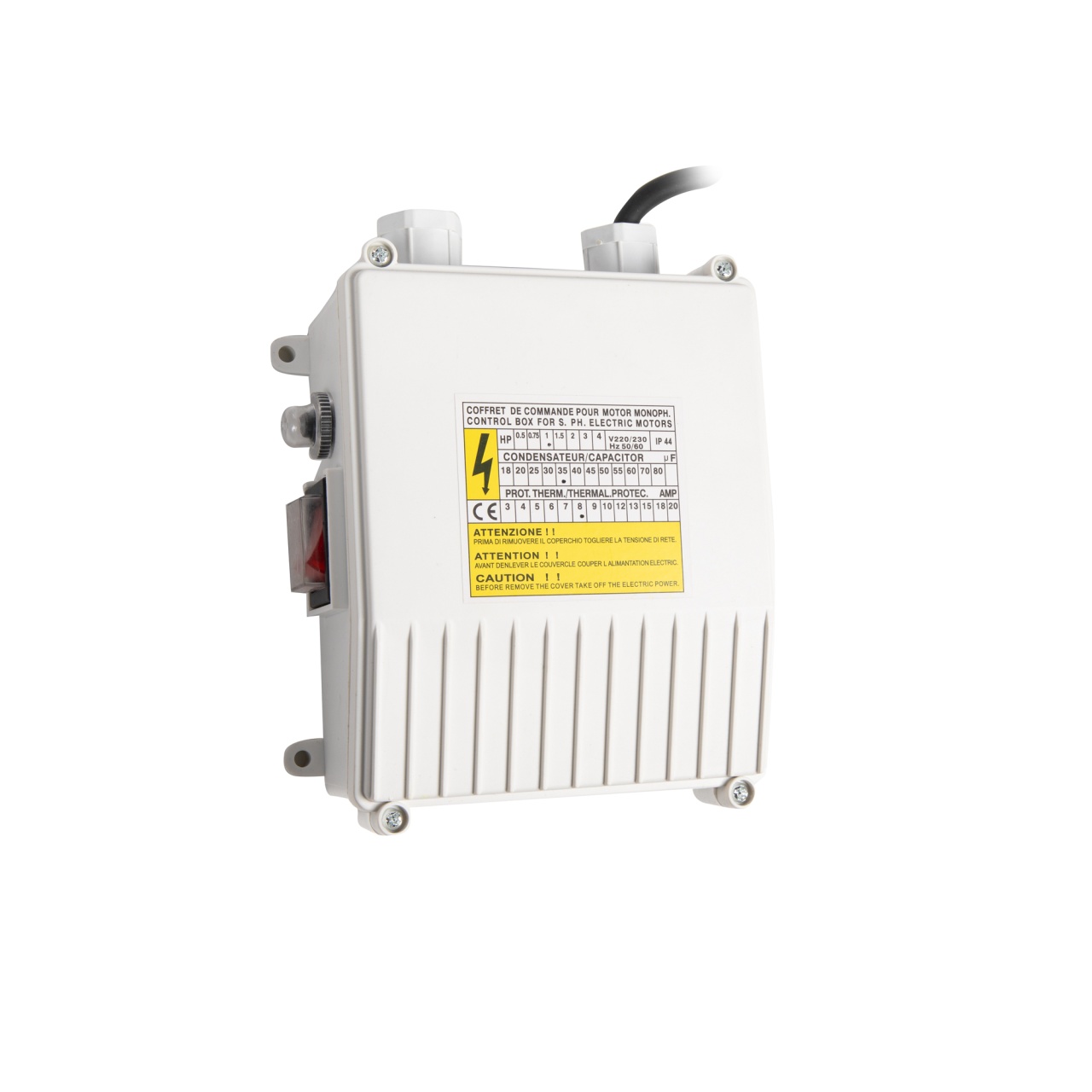

Control panel
Yes
Maximum pressure
6 Bar
Power consumption (W)
1300 W
Maximum liquid temperature
35°C
Voltage
220–240 V
Product type
Deep-well submersible pumps
Maximum rotational speed (rpm)
2850 rpm
