The multi-stage submersible pump is recommended for pumping clean water, free of foreign bodies or chemically neutral abrasive substances.

The pumped fluid must be within the temperature range 0-40 degrees Celsius. Maximum acceptable ambient temperature is 50 degrees Celsius.

Mode of use:
The multi-stage submersible pump is equipped with built-in directional valve, impeller and diffuser - all made of thermoplastic PPO.

The multistage submersible pump has 8 pumping stages and a common motor and pump housing. The pump shaft is made of stainless steel and the outlet connection of bronze.

The submersible water pump is an equipment used to transport water from wells, lakes, ponds, basins, fountains in order to supply various consumers. In terms of construction the pump has three main components: motor, pumping unit and casing.

The main characteristic of a submersible pump is the maximum delivery head as they only work when immersed in the fluid to be pumped. If you want to buy a submersible pump, you should consider in particular the pumping head (how many metres you want the pump to "lift") and the required water flow rate.

It is advisable to choose a submersible pump that is slightly more powerful than the calculations show, so that it does not have to operate at maximum load.

Customer benefits:
-control panel;
-Easy to install;
-easy to manoeuvre;
-light weight.

Advantages Tun long 75QJD 1.8-54/15-0.55 RED control panel, Small Farmer GF-0710-S001-G02:
-Stainless steel axle;
-high flow rate;
-powerful motor.

Operating conditions:
-max water temperature: 40 degree C
-contained solid particles must not exceed 0.1% and granularity not more than 0.2mm
-maximum depth of immersion of the pump should not be more than 15m; minimum depth of immersion of the pump should not be less than 5m.

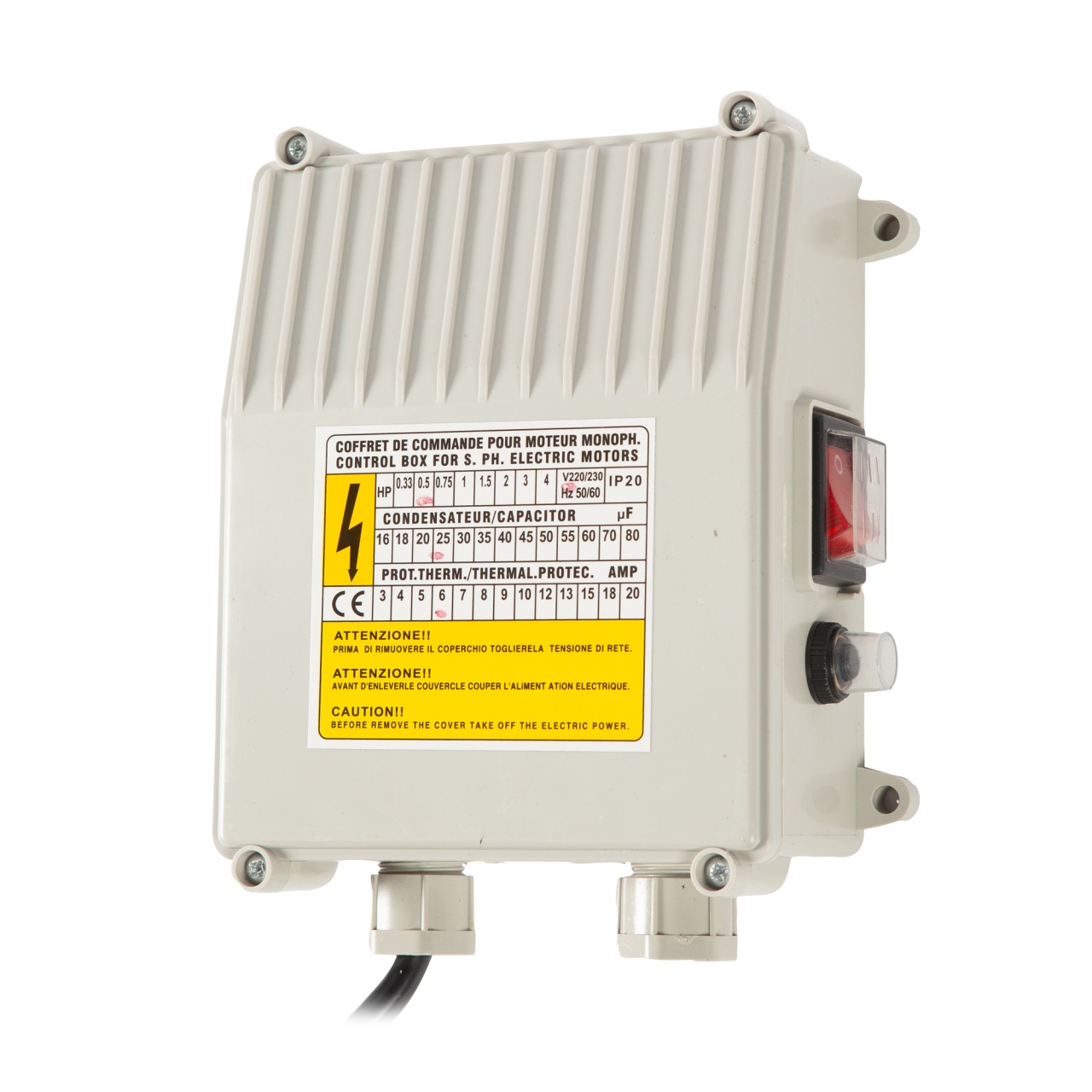

The product is provided with control panel.

SKU
GF-0710-S001-G02
Categories
Suction depth
30 m
Brand
Little Farmer
Air tightness class dust and moisture protection degree
IP58
Contains floating
No
Debit
0.25 ÷ 3 mc/h
Pump diameter
75 mm
Connection diameter
2.54 cm (1")
Maximum foreign body size
0.2 mm
Dimensions 2
109x1919x10
Frequency Hz
50 Hz
Gross weight
10.35 kg
Net weight
9.85 kg
Pumping head
40 m
Power cable length (m)
15 m
Rotor material
silicon steel sheet
Body material
Stainless steel
Minimum water level for operation
50 cm
Number of items per box
1
Control panel
with a control box
Power consumption (W)
750 W
Maximum liquid temperature
35°C
Voltage
220–240 V
Product type
Deep-well submersible pumps
Maximum rotational speed (rpm)
2850 rpm

Do you own or have used the product?
Post review
Micul Fermier

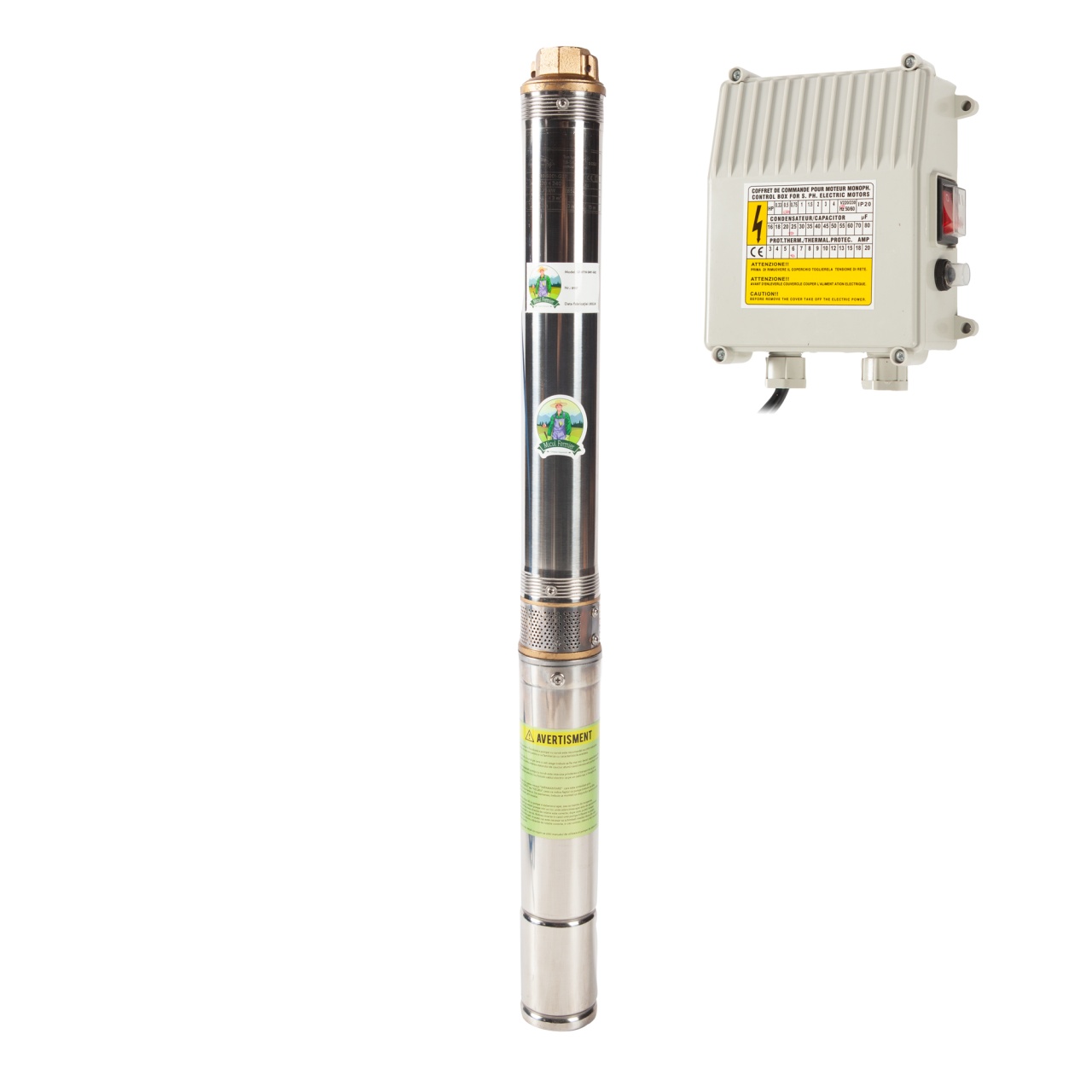

Submersible pump Micul Fermier, 0.75 kW, maximum flow 3000 l/h, maximum pumping height 40m, 8 impellers
