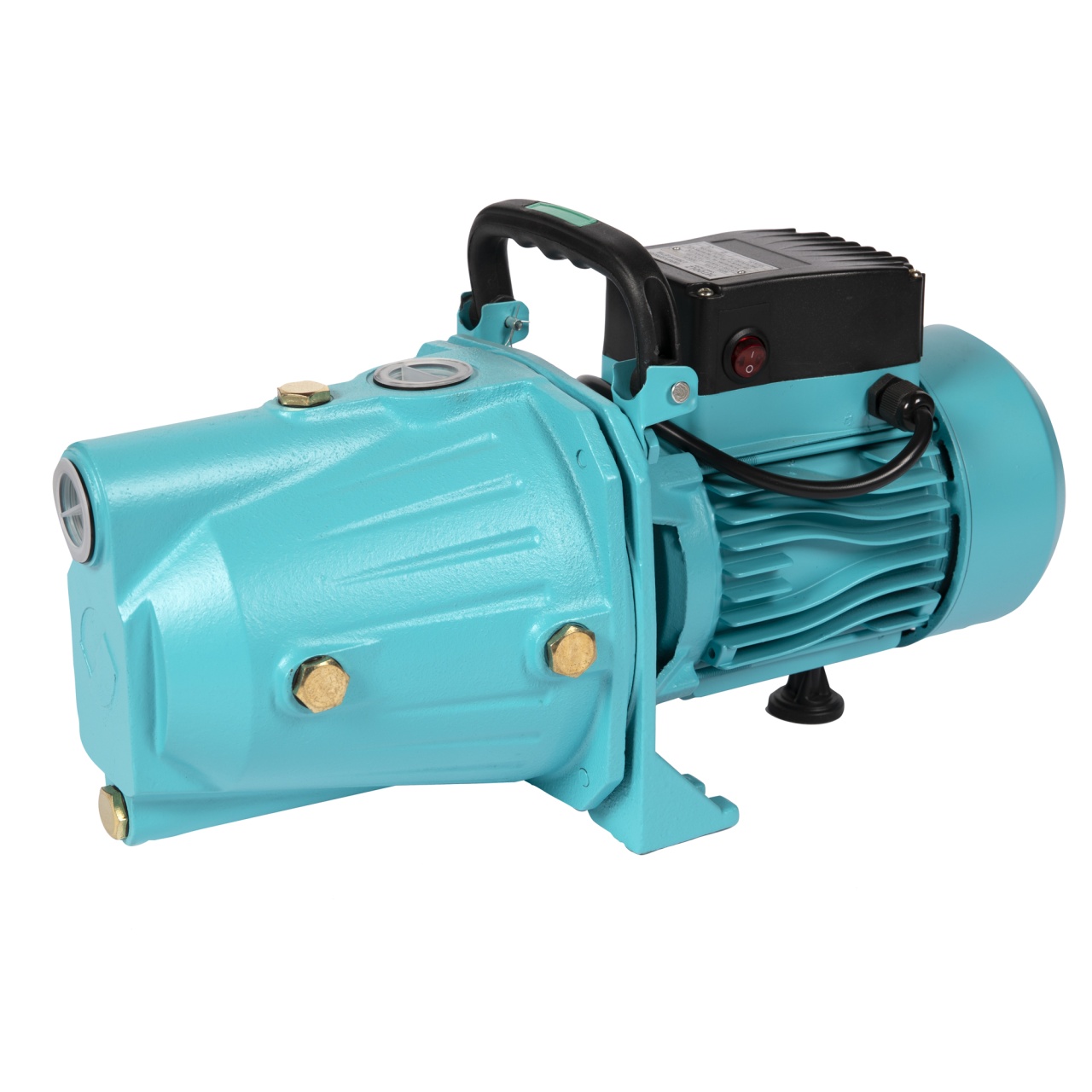

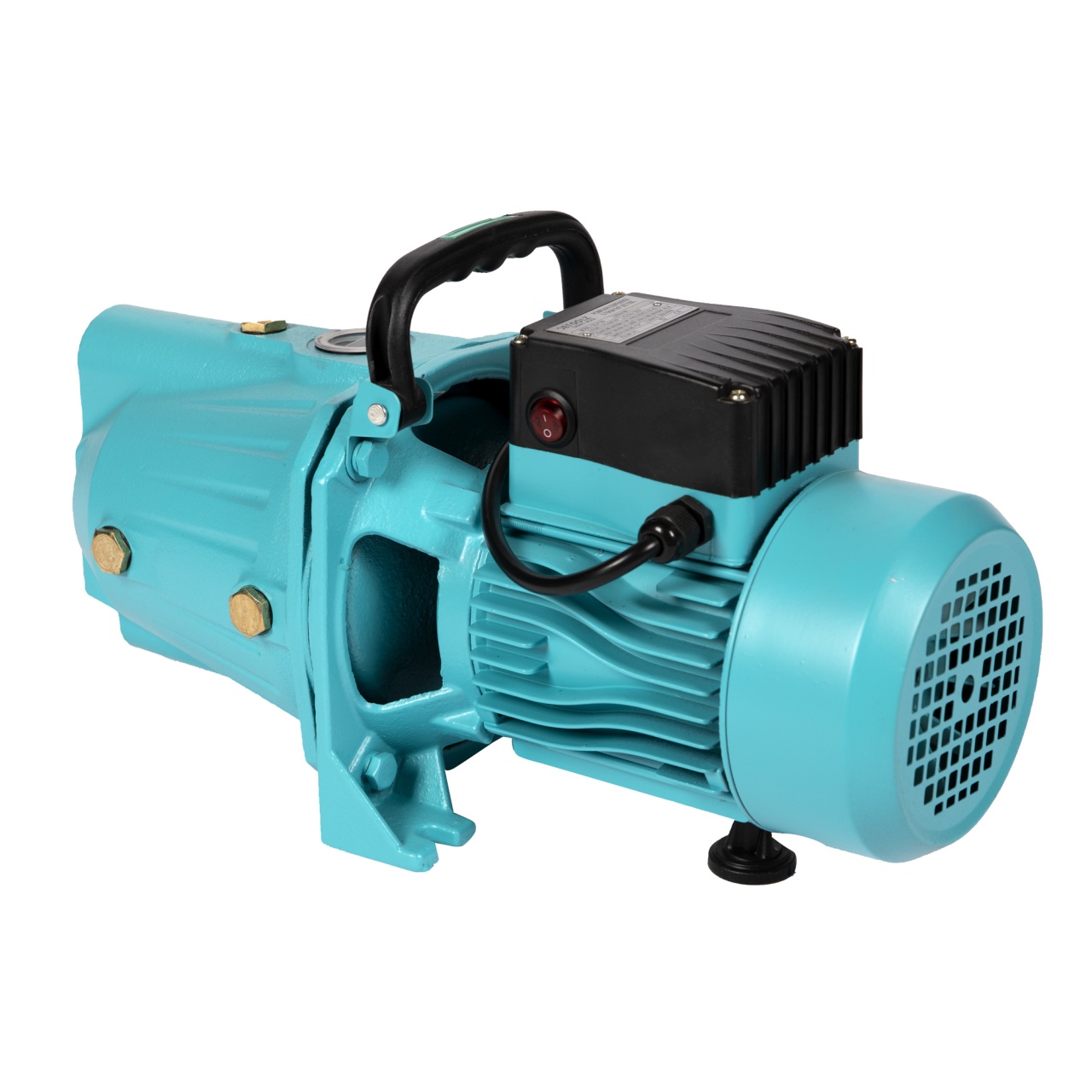

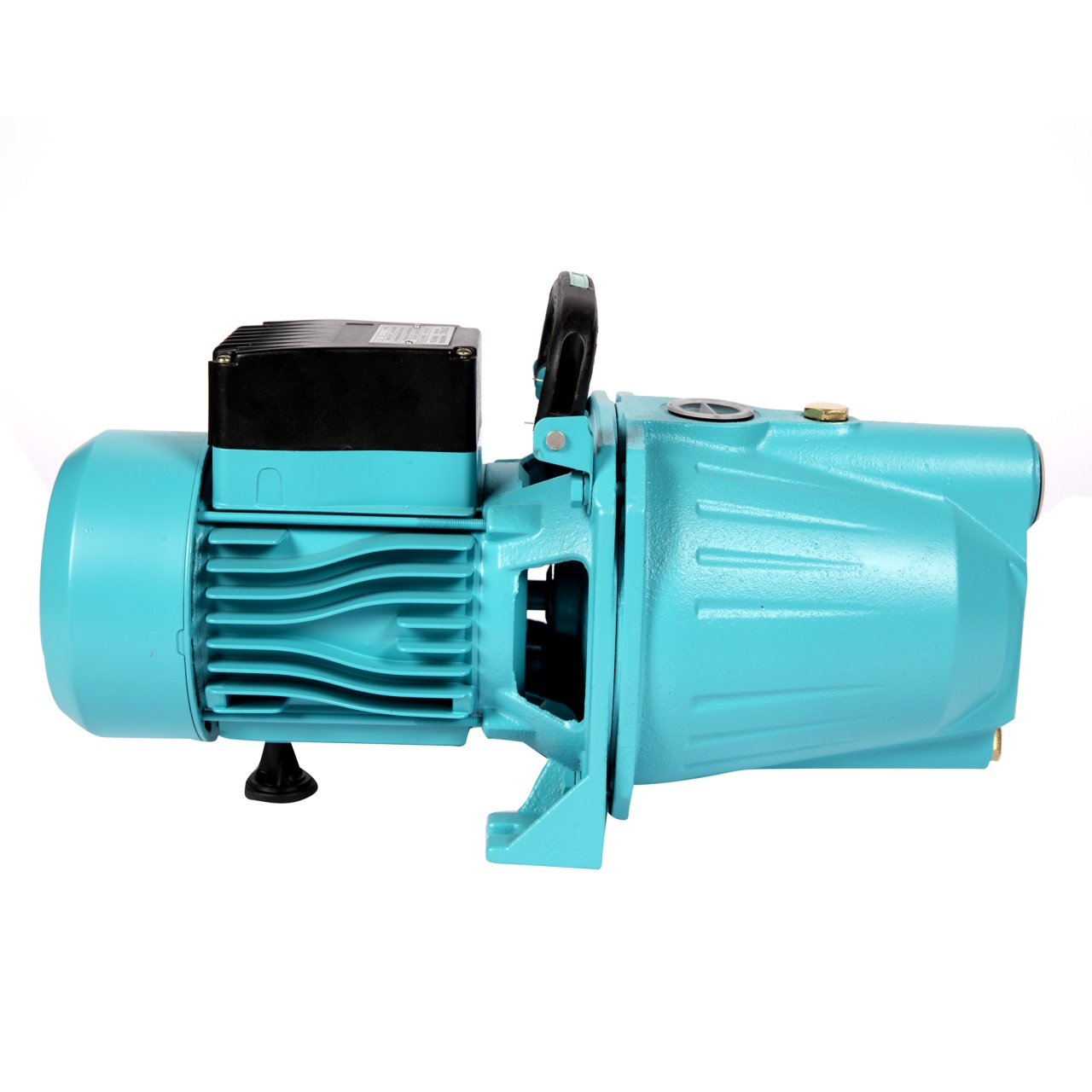

Surface water pump 0,75kW/1HP JET JET 100L

Out of stockOut of stock
DZ-P106
Power
0.75 kW
Net weight
13.85 kg
RON 394.36 (VAT included)
Momentan indisponibil Anunță-mă când revine
This product is currently not available. Want to get notified when it's back?
Primești 39 puncte MUGUR la această comandă 39 puncte MUGUR = 39 RON reducere pe care le poți folosi la una dintre comenzile tale viitoare.
Livrare gratuită pentru comenzile de peste 700 lei
Repayment of installments: fast and easy
RON 15.39 Monthly payment
Installment calculator Leanpay
Plată securizată Card, ramburs sau în rate
Livrare în 1-2 zile Gratuită de la 700 lei
Retur în 14 zile Conform politicii de retur
Puncte MUGUR La fiecare comandă

Descriere

The JET 100L pump for water wells is used for supplying water to individual residential buildings, watering gardens, operating automatic washing machines, electric boilers, gas-fired power stations with two circuits, wells, natural water basins. Water abstraction is realised from wells, fountains, natural water basins. At the maximum depth, the water intake depends on the horizontal distance from the well or fountain to the pump.
The pump has no protection against running "dry" in the absence of water. The pump must not be installed in rooms or in locations with high humidity (basements, wells, etc.), nor in spaces without working ventilation.

Surface water pump, 0,75kW/1HP JET 100 L, Detoolz DZ-P106 is designed for pumping clean water and non-corrosive liquids. The major advantages of this pump are its reliability, large discharge head, large suction head and fairly short self-priming time. Therefore, it is widely used for garden irrigation, agricultural fields, water supply to high rise buildings, flower nurseries, ships etc. The self-priming centrifugal surface water pump has a power of 0.75 kw. The impeller is made of corrosion resistant bronze. The pump shaft and body are made of stainless steel.

The JET100L water pump is a water pump that can be used for both home and garden, and can be used at ambient temperatures of 40C maximum, and the water temperature not to exceed 35C and you can use it as a hydro-pump by adapting a tank in the upper part.

Instructions for use:
-The JET100L water pump, Detoolz DZ-P106 pumps clean water even with air bubbles with maximum working fluid temperature having maximum 35C.
-The JET100L, Detoolz DZ-P106 water pump features a corrosion resistant bronze impeller and stainless steel shaft for long life and durability.
-The water pump is an equipment used to transport or transfer water from wells, basins, lakes, fountains in order to supply various consumers. In terms of construction, the pump has three main components: motor, pumping unit and casing.
-The surface pump is characterised by maximum suction depth and maximum delivery head. The most important element when choosing a surface water pump is the suction depth. For a maximum suction depth of 8-9 metres a centrifugal surface pump is used. If the suction depth is greater than 8-9 metres, we choose a surface pump with ejector.
-We have to consider the supply route to the consumers (both horizontal and vertical). In principle, to pump water 10 metres vertically (10 metres water column height) we theoretically need 1 bar pressure. Thus, if the technical data sheet of the pump mentions that it has a maximum delivery head of 50 metres, this means that the pump develops a maximum pressure of 5 bar (note: the water flow at this maximum head will be practically zero). For pumping in a straight line horizontally, for every 100 metres of pumping, a minimum pressure of 1 bar is required.
-In conclusion, for vertical water lifting, for every 10 metres a pressure of at least 1 bar is needed, and for horizontal water pumping, for every 100 metres a pressure of 1 bar is needed. When choosing a pump we recommend that you consult the pump's operating graph in order to calculate the required flow rate at the desired distance.

Customer benefits:
-Easy to install;
-easy to manoeuvre;
-light weight.

Product advantages:
-copper winding;
-corrosion resistant bronze turbine;
-high flow rate;
-powerful motor.

Product safety information

Manufacturer
GOLDEN FISH SRL
Linia de Centura 5 CTPark Bucharest North, Unitatea B, Stefanestii de Jos, Ilfov, 077175
Romania
online@micul-fermier.ro
EU responsible person
GOLDEN FISH SRL
Linia de Centura 5, CTPark Bucharest North, Unitatea B, Stefanestii de Jos, Ilfov, 077175
Romania
online@micul-fermier.ro
SKU DZ-P106 EAN 6426910014786
Warnings and safety information
Înainte de utilizare, citiți cu atenție manualul de instrucțiuni furnizat de producător și păstrați-l pentru consultări ulterioare. Folosiți produsul doar în scopul pentru care a fost proiectat și conform instrucțiunilor.


,

SKU
DZ-P106
Categories
Brand
Suction depth
9 m
Winding
Copper
Brand
Detoolz
Air tightness class dust and moisture protection degree
IPX4
Maximum flow
65 l/min
Connection diameter
1"
Dimensions 2
47x19x24
Frequency Hz
50 Hz
Degree of protection
Class 2 (requires installation with a barrier)
Gross weight
14.15 kg
Net weight
13.85 kg
Pumping head
42 m
Power cable length (m)
1.5 m
Pump shaft material
Carbon steel
Pump body material
Font
Rotor blade material
PPO
Number of items per set
1
Number of items per box
1
Power
0.75 kW
Horsepower
1 CP
Liquid temperature (°C)
35°C
Voltage
230 V
Product type
Surface pump
Maximum rotational speed (rpm)
2852 rpm
