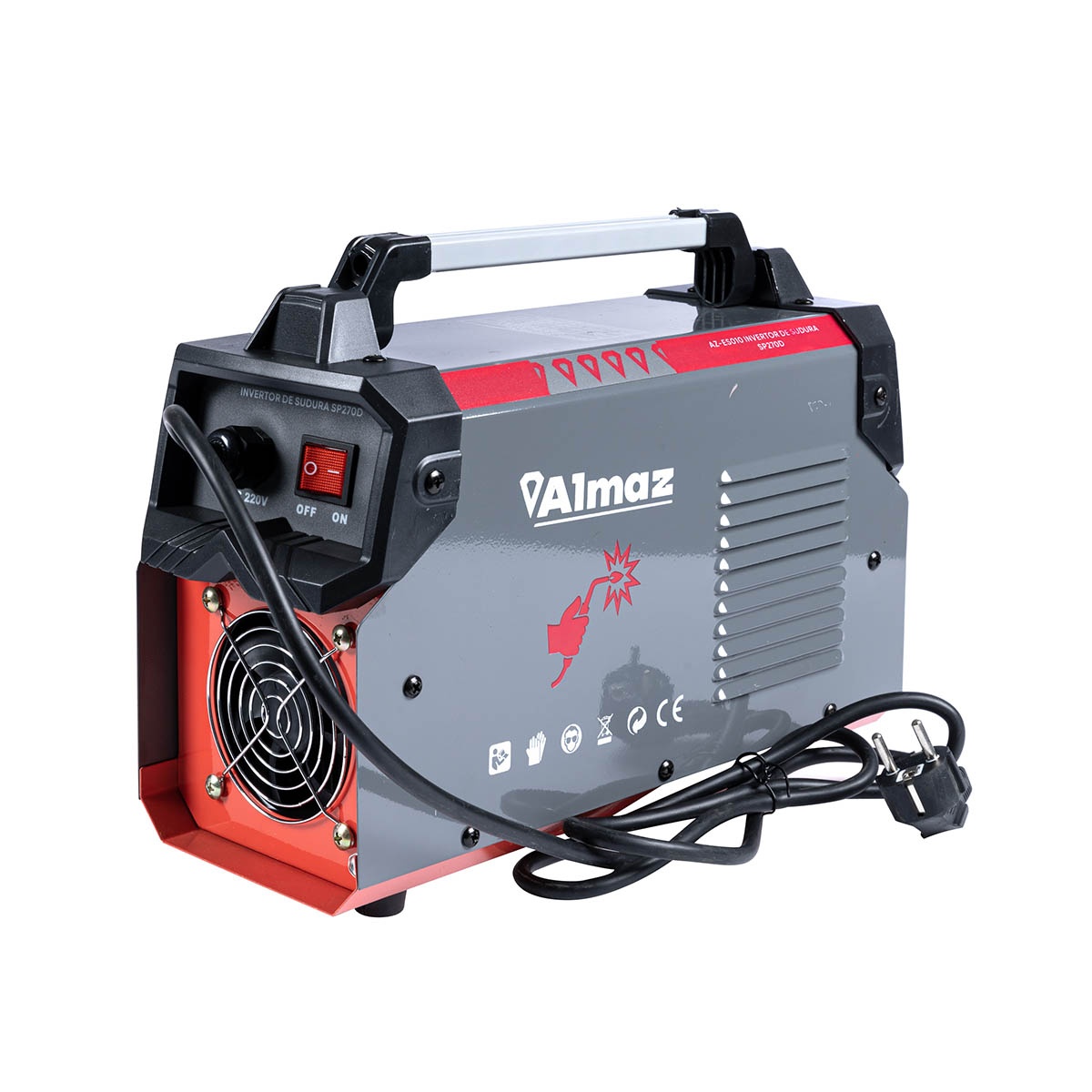

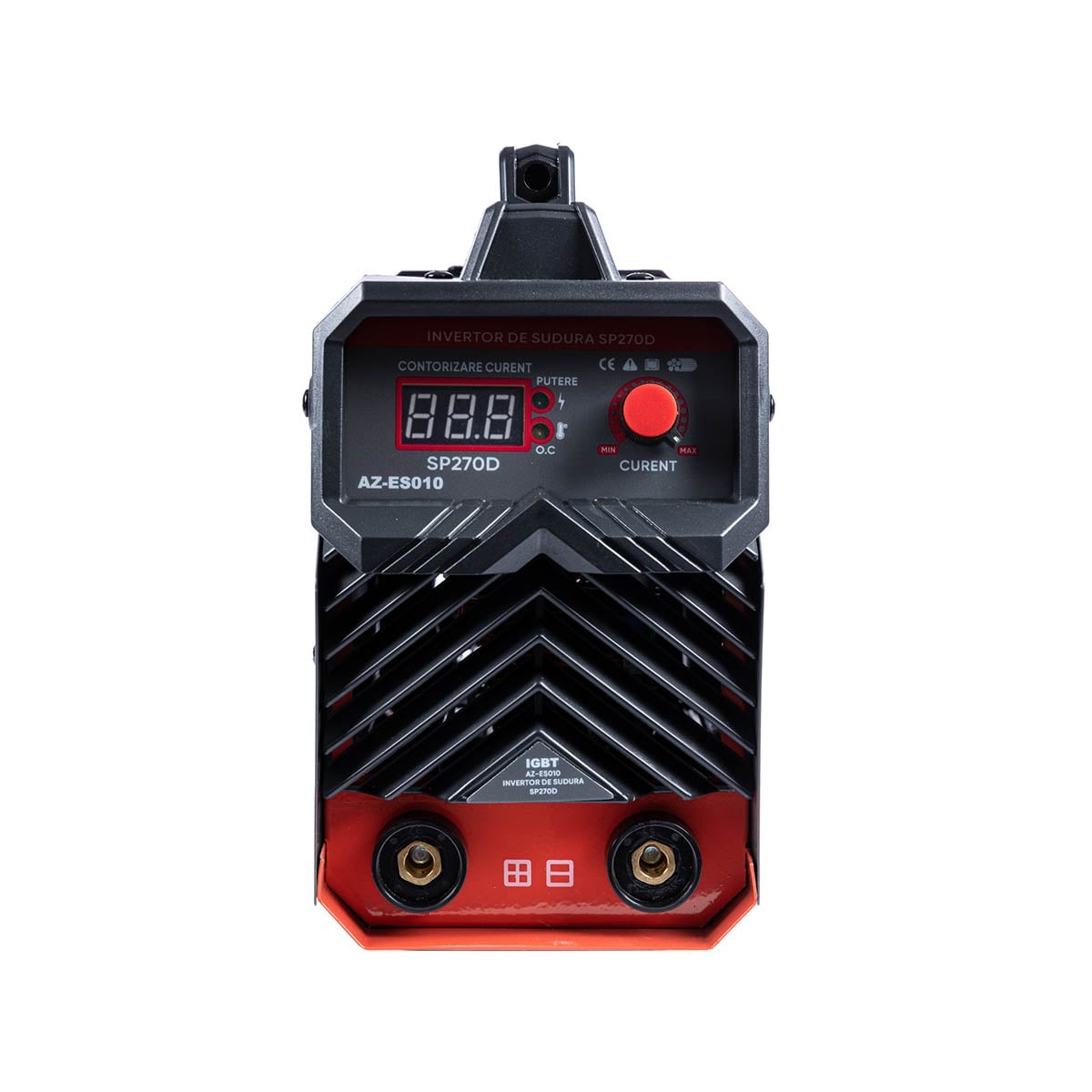

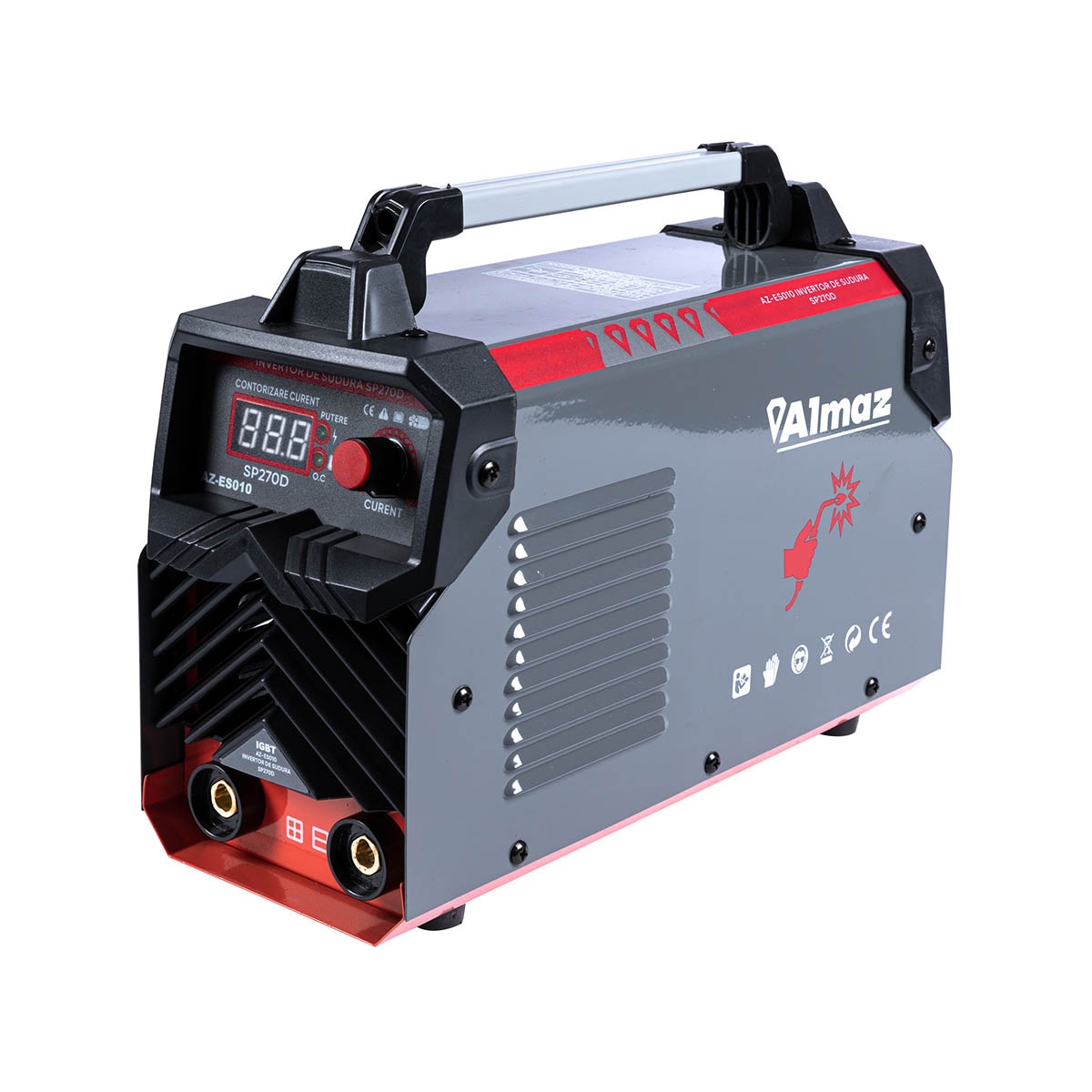

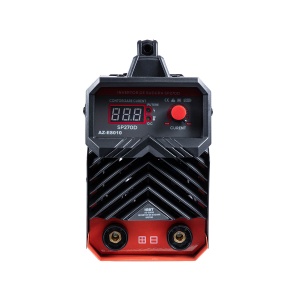

Welding inverter MMA 270 - Almaz AZ-ES010

High performance and energy efficiency for precise welding! The Almaz welding inverter MMA 270 (AZ-ES010) is a modern equipment based on MOSFET INVERTER technology, which ensures stable welding and low energy consumption. With a strong and constant electric arc, this inverter is suitable for welding stainless steel, alloy steel, carbon steel and even coloured metals.

Main features

✅ MOSFET INVERTER technology - offers energy efficiency and improved performance
✅ Continuous welding current - ensures stability and optimum arc control
✅ High efficiency - increases efficiency by 30% thanks to PWM technology
✅ Compact and stable arc - facilitates interruption-free welding
✅ High idle voltage - fast arc ignition
✅ Versatile operation - can be used at high altitudes, outdoors or indoors
✅ Compatible with electrodes of different compositions - including alkaline and acid electrodes
✅ Compact design and light weight - easy to transport and install
✅ Overload and overheat protection system - increased safety in use

Recommended uses

✔ Structural metal welding - suitable for metal fabrication and repairs
✔ Maintenance and repair - ideal for workshops and home use
✔ MMA welding with coated electrodes - compatible with a wide range of electrodes
✔ Construction and miscellaneous work - ensures strong, clean welds

Technical Specifications

🔹 Weld type: MMA (Manual Metal Arc)
🔹 S upply voltage: 220V ± 10%
🔹 Welding current: 20A - 270A
🔹 Electrode diameter: 1.6 - 4.0 mm
🔹 Display: Digital
🔹 Cooling system: Compact axial fan
🔹 Protection class: IP21S
🔹 Insulation class: F
🔹 Dimensions: 42 x 18 x 31 cm
🔹 Net weight: 4.70 kg

User benefits

✔ Low energy consumption - optimised efficiency for energy saving
✔ Easy transport and storage - light weight and ergonomic design
✔ Simple and intuitive operation - suitable for both experienced and novice users
✔ Overload and overheat protection - improved safety in use

Attention!

❌ Do not use the appliance in excessively humid conditions
❌ Do not overload the inverter - observe the specified duty cycle
❌ Ensure that the working area is well ventilated and free of flammable materials
❌ Wear suitable protective equipment (gloves, mask, goggles, flame-retardant clothing)

Almaz MMA 270 - the ideal choice for efficient and precise welding!
